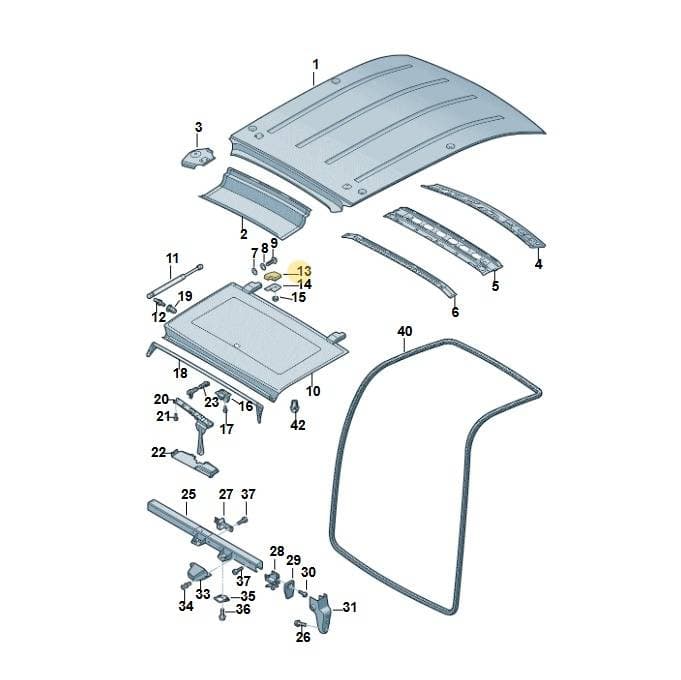

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Roof Load Flap Hinge, part number 2K0829754C03C, in Rally Black (03C). This hinge is a crucial component for the proper opening and closing of the roof load flap, ensuring precise alignment and smooth movement. It is located as part of the roof load flap assembly. Genuine OEM hinges are manufactured with precise tolerances for durability and reliable operation, preventing premature wear and ensuring a secure fit.
Catalogue entry: BLACK; HINGE right.
Technical details
- Base part number
- 2K0829754C
- Category
- Body Exterior
- Colour / finish
- 03C
- Customs (HS) code
- 83021000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.2 × 7.8 × 4.5 cm
- Shipping weight
- 0.2 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 3FH
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHinge (Rally black) — locate 2K0829754C03C Volkswagen Roof Load Flap Hinge | Rally Black in the official exploded view and explore the surrounding assembly.
You are ordering the rally black version — 2K0829754C03C. The diagram shows its base part number 2K0829754C.
Parts in this assembly40
- 1Roof 2K0817101A
- 2Reinforce 2K0817120
- 3ReinforceRight2K0817252A
- 3ReinforceLeft2K0817251A
- 4Roof Rack 2K5817123A
- 5Reinforce 2K0817117
- 6Roof Bow 2K0817325A
- 7Washer WHT005546
- 8Washer N01155813
- 9Bolt WHT005555
- 10Load Flap 2K0829703C
- 11G Fill Str 2K0829749A
- 12Stud 701827439B
- 13HingeLeft2K0829753B
- 13HingeRight2K0829754C
- 14SealLeft2K0829771
- 14SealRight2K0829772
- 15Ut Hexagon Nut Self-locking Hexagon Nut N02300213
- 16Lock 2K0827162A
- 17Screw N10526802
- 18Seal 2K0829773A
- 19Part N90589901
- 20Lever 2K0829727A
- 21Screw WHT001925B
- 22Trim 2K0829763
- 23Part 2K0829741
- 25Holder 2K0829835
- 26Screw N91036701
- 27Lo Striker 2K0829857
- 28Lock Mechanism 2K0829861
- 29Buffer 2K0829891
- 31Bracket 2K0829881
- 33CoverRight2K0829898
- 33CoverLeft2K0829897
- 34Clip 7H0867299
- 35Lo Striker 2K0827537B
- 36Bolt N90850102
- 37Bolt N90898102
- 40Seal 2K0829193S
- 42Buffer 2K0829767
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| caddy kombi | 2015-2020 | 13 | 3FH |
| caddy panel van | 2008-2010 | 13 | 3FH |
The manufacturer’s catalogue lists this part number as fitted until September 2020; later builds may use a superseding number.
