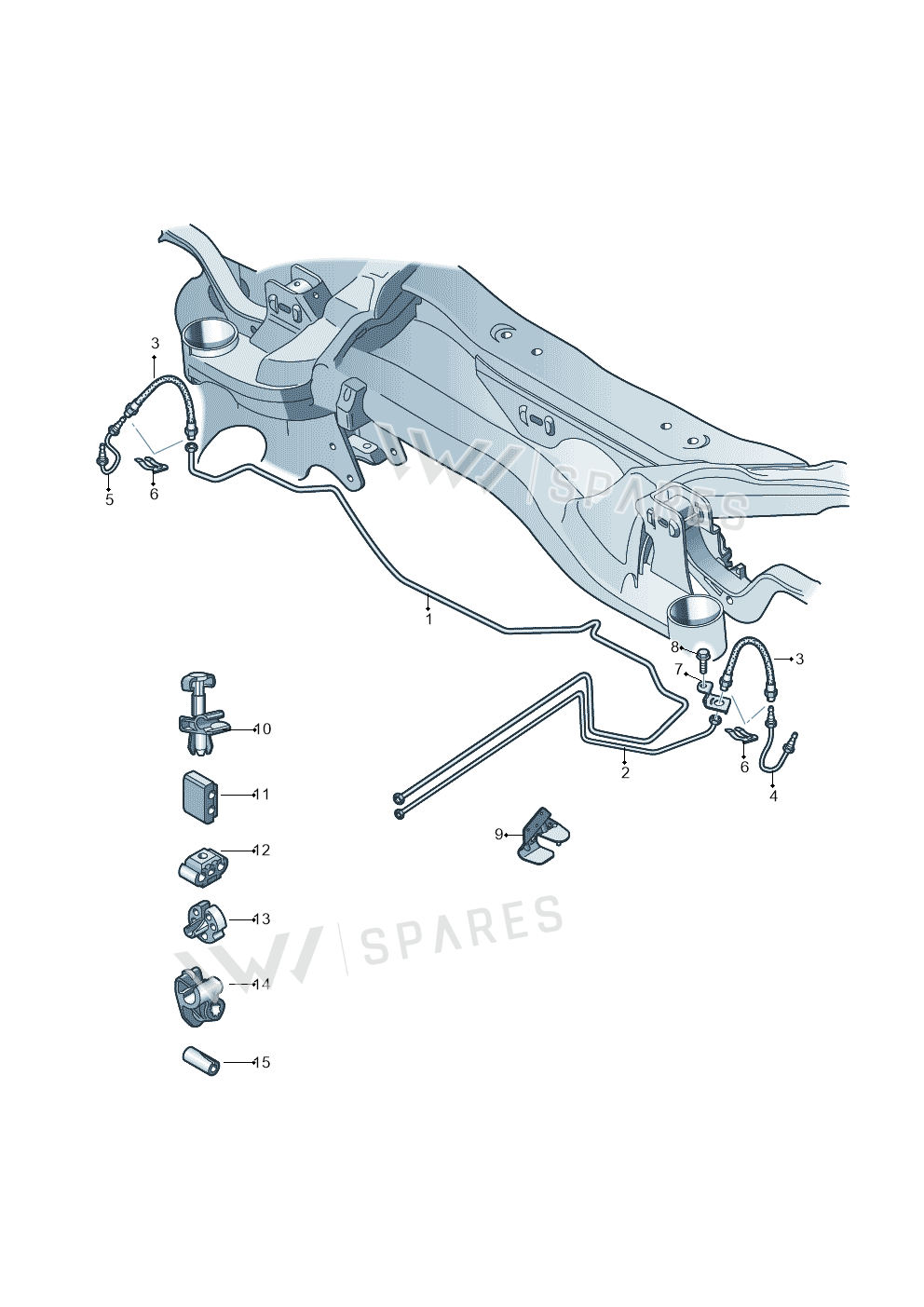

Brake Line exploded parts diagram — Caddy Maxi Kombi · 2010-2015, position 2 — Caddy Maxi Kombi · 2010-2015 · position 2Full diagram ↓

2K3614741C

2K3614741C Brake Line

Name: 2K3614741C Brake Line
Brand: Volkswagen
SKU: 2K3614741C
Price: 16.47 GBP
Availability: Discontinued

£16.47

£13.61 excl. VAT

Supersession roadoldest to newest

2K3614741C
Not stocked Mar 2015
You are here
2K5614741
Not stocked Apr 2011
2K5614741A
Current number

2K3614741CThis pageNot stocked
Mar 2015
2K5614741Not stocked
Apr 2011
2K5614741ACurrent number

Current part number2K5614741AWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

1 vehicle

Brake Line — locate Brake Line in the official exploded view and explore the surrounding assembly.

LThis part is the Left side

Parts in this assembly28

Vehicle fitment table1

Europe (1)

Vehicle	Years	Pos.	Qty	Remark	PR
Caddy Maxi Kombi	2010-2015	2	1		0E2
