Refrigerant Line exploded parts diagram — GOLF "ZA." · 2005-2007, position 5

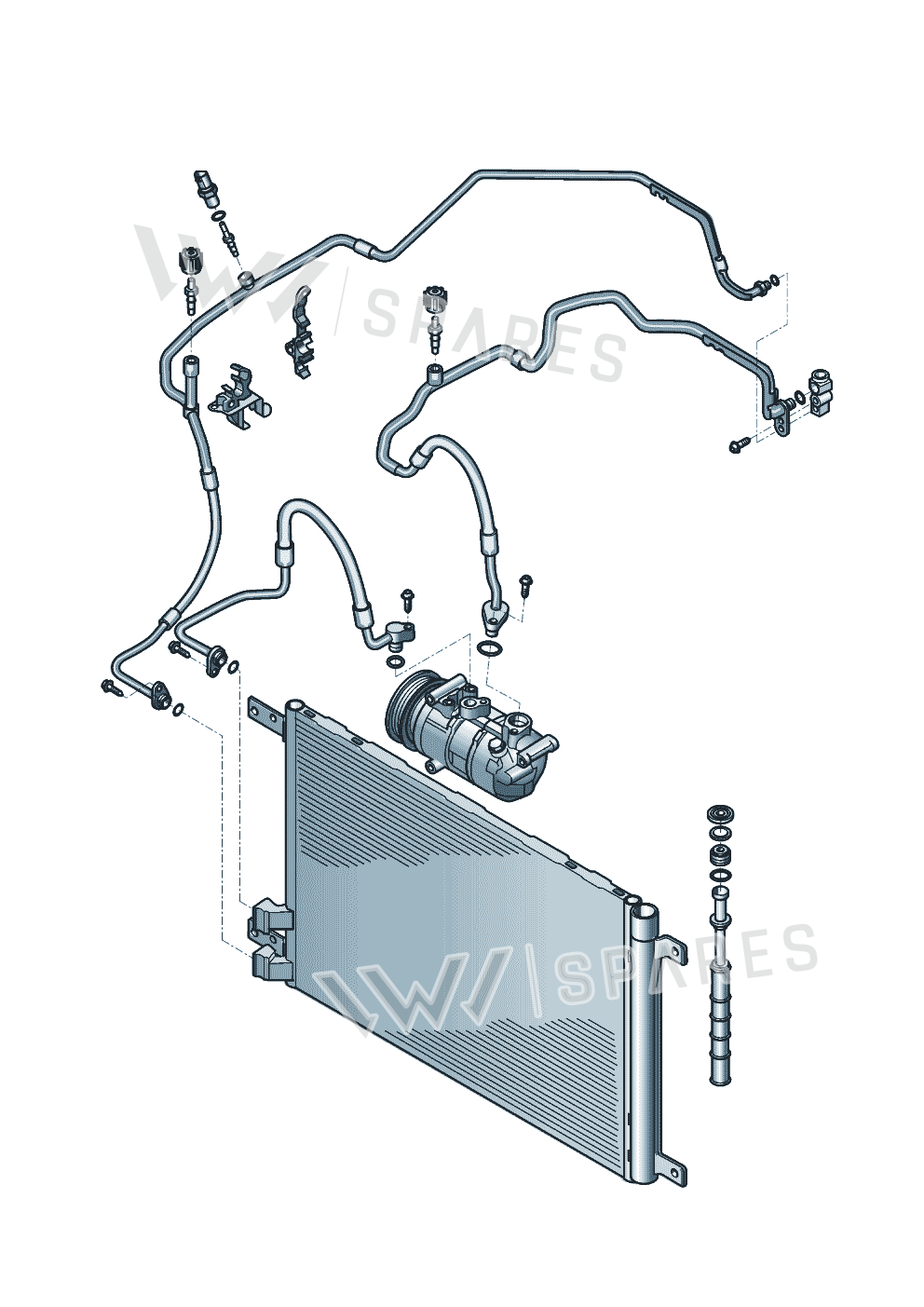

Exploded view
GOLF "ZA." · 2005-2007 · position 5Full diagram ↓
2Q0820721

2Q0820721 Refrigerant Line

£100.91
£83.40 excl. VAT
Supersession roadoldest to newest
  1. 2Q0820721This pageNot stocked
    Nov 2018
  2. 2Q0816721Not stocked
    Sep 2018
  3. 2Q0816721NCurrent number
Current part number2Q0816721NWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Refrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.

Parts in this assembly32
Vehicle fitment table1

Other markets (1)

VehicleYearsPos.Qty
GOLF "ZA."2005-200751

Diagrams & fitment data powered by oemdiagrams.com

Refrigerant Line is fitted on: GOLF "ZA." 2005-2007.
