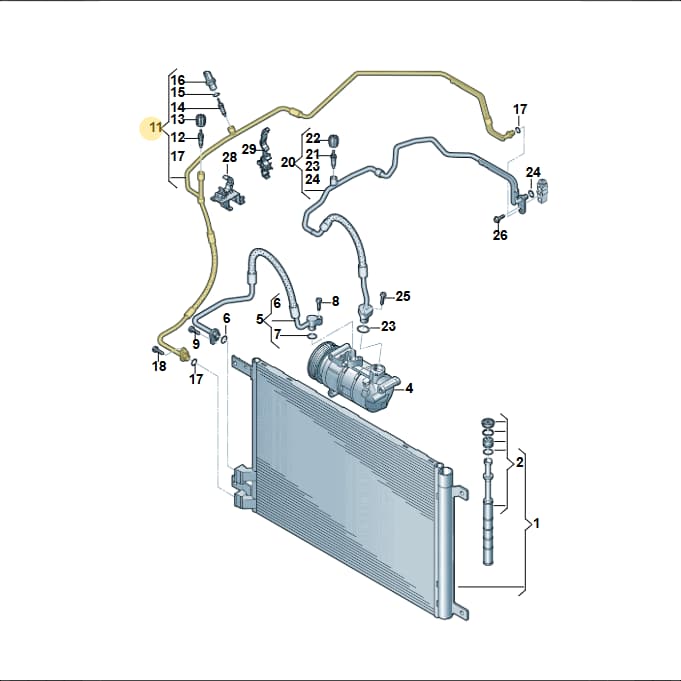

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen A/C Refrigerant Line, part number 2Q1816741J. This line transports refrigerant throughout the air conditioning system, facilitating the cooling process. It connects various components such as the compressor and condenser. Weighing 0.271 kg and measuring 0.82 m in length, this genuine OEM refrigerant line ensures proper routing geometry and resistance to high pressures and temperatures, critical for efficient and leak-free A/C operation.
Catalogue entry: LINE lhd.
Fitted with: 2Q1816741G LINE, 2Q1816741H LINE, 2Q1816741P LINE, 2Q1816741L LINE, 2Q2816741J LINE, 2Q2816741K LINE, 2Q2816741P LINE, 2Q2816741N LINE, 2Q2816741R LINE, 2Q2816741L LINE, 2Q2816741T LINE, 2Q1820741 LINE.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40091200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 82 × 60 × 29 cm
- Shipping weight
- 0.27 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- KK3
- L0L
- TD3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 2Q1816741J Volkswagen A/C Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Condenser 5WA816411A
- 1Condenser 2Q0816411A
- 2Insert 2Q0298403
- 2Insert 5Q0298403D
- 2Insert 5Q0298403C
- 5Line 2Q0816721A
- 5Line 2Q0816721C
- 5Line 2Q0816721D
- 5Line 2Q0816721E
- 5Line 2Q0816721F
- 5Line 2Q0816721H
- 5Line 2Q0816721P
- 5Line 2Q0816721N
- 6Seal Ring 3D0260749C
- 7Seal Ring 4E0260749A
- 8Screw N10414402
- 9Bolt N10347103
- 11LineLeft2Q1816741H
- 11LineLeft2Q1816741L
- 11LineLeft2Q1816741P
- 11LineLeft2Q1820741
- 11LineLeft2Q1820741A
- 11LineLeft2Q1820741B
- 11LineLeft2Q1820741E
- 11LineLeft2Q1820741K
- 11LineRight2Q2816741J
- 11LineRight2Q2816741K
- 11LineRight2Q2816741L
- 11LineRight2Q2816741N
- 11LineRight2Q2816741P
- 11LineRight2Q2816741R
- 11LineRight2Q2816741T
- 11LineRight2Q2820741
- 11LineRight2Q2820741A
- 11LineRight2Q2820741B
- 11LineRight2Q2820741E
- 11LineRight2Q2820741J
- 11LineLeft2Q1816741G
- 12Valve 8E0820855
- 13Part 3C0820581
- 13Part 5Q0816581
- 14Valve 8A0820855AA
- 15Seal Ring 7H0820896
- 16Sender 5Q0959126A
- 16Sender 5Q0959126B
- 17Seal Ring 4D0260749B
- 20Line 2Q0816743AB
- 20Line 2Q0816743AC
Compatible / alternative parts(3)
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi A1 sportback 1.0 | 2018- | 11 | 1 | PR:TD3+KK3 |
| Polo 1.0 BlueMotion | 2017-2024 | 11 | 1 | PR:TD3+KK3 |
The manufacturer’s catalogue lists this part number as fitted until 3 May 2021; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
2Q1816741J Volkswagen A/C Refrigerant Line | Genuine OEM is fitted on: Audi A1 sportback 1.0 2018-; Polo 1.0 BlueMotion 2017-2024.
