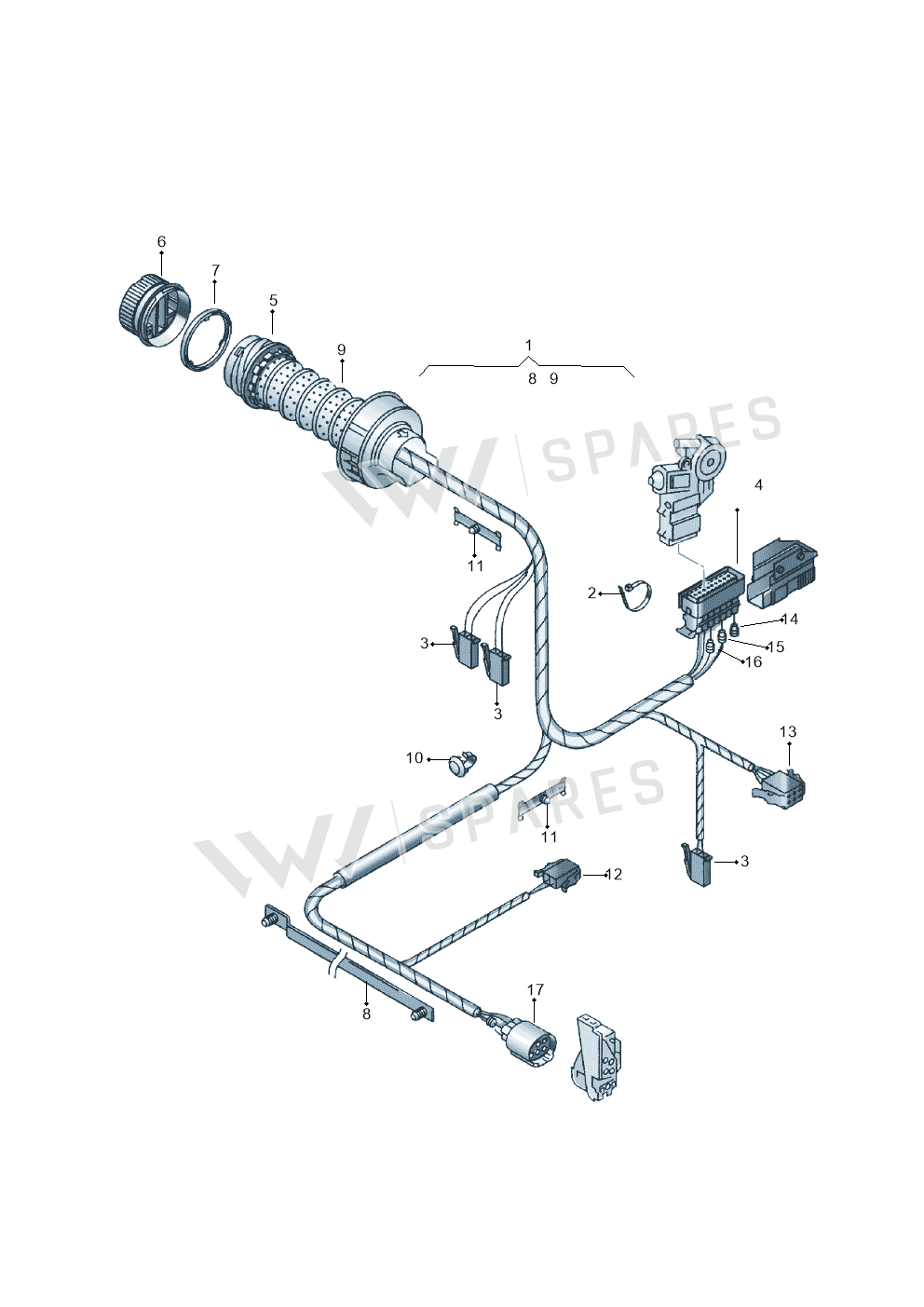

Seal Ring exploded parts diagram — Sharan · 2008-2010, position 7
Exploded view
Sharan · 2008-2010 · position 7Full diagram ↓
3A0959750

3A0959750 Seal Ring

£7.04
£5.82 excl. VAT
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

15 vehicles

Seal Ring — locate Seal Ring in the official exploded view and explore the surrounding assembly.

Parts in this assembly16
Vehicle fitment table15

Europe (12)

VehicleYearsPos.Qty
Sharan2008-20107
Alhambra2006-20107
SHARAN/4MOTION2005-7
ALHAMBRA/4MOTION2005-7
SHARAN/4MOTION2002-20057
ALHAMBRA/4MOTION2002-20057
POLO1999-200113, 23
ALHAMBRA1996-20007
SHARAN/SYNCRO1995-20007
POLO1994-199910, 13, 23
Passat1994-199772
Passat Var.syncro1994-199672

Platform / generic diagrams (3)

VehicleYearsPos.Qty
1J0 platform4, 25X
1J0 platform4, 19
1J0 platform4, 25X

Diagrams & fitment data powered by oemdiagrams.com

Seal Ring is fitted on: Sharan 2008-2010; Alhambra 2006-2010; SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; POLO 1999-2001; ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; POLO 1994-1999; Passat 1994-1997; Passat Var.syncro 1994-1996; 1J0 platform.
