3AA145805C Charge Air Cooler
- 1K0145803AKNot stocked
Oct 2010 - 1K0145803BENot stocked
Aug 2011 - 1K0145803BPNot stocked
Mar 2017 - 3AA145805CThis pageNot stocked
Feb 2018 - 3C0145805AMCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

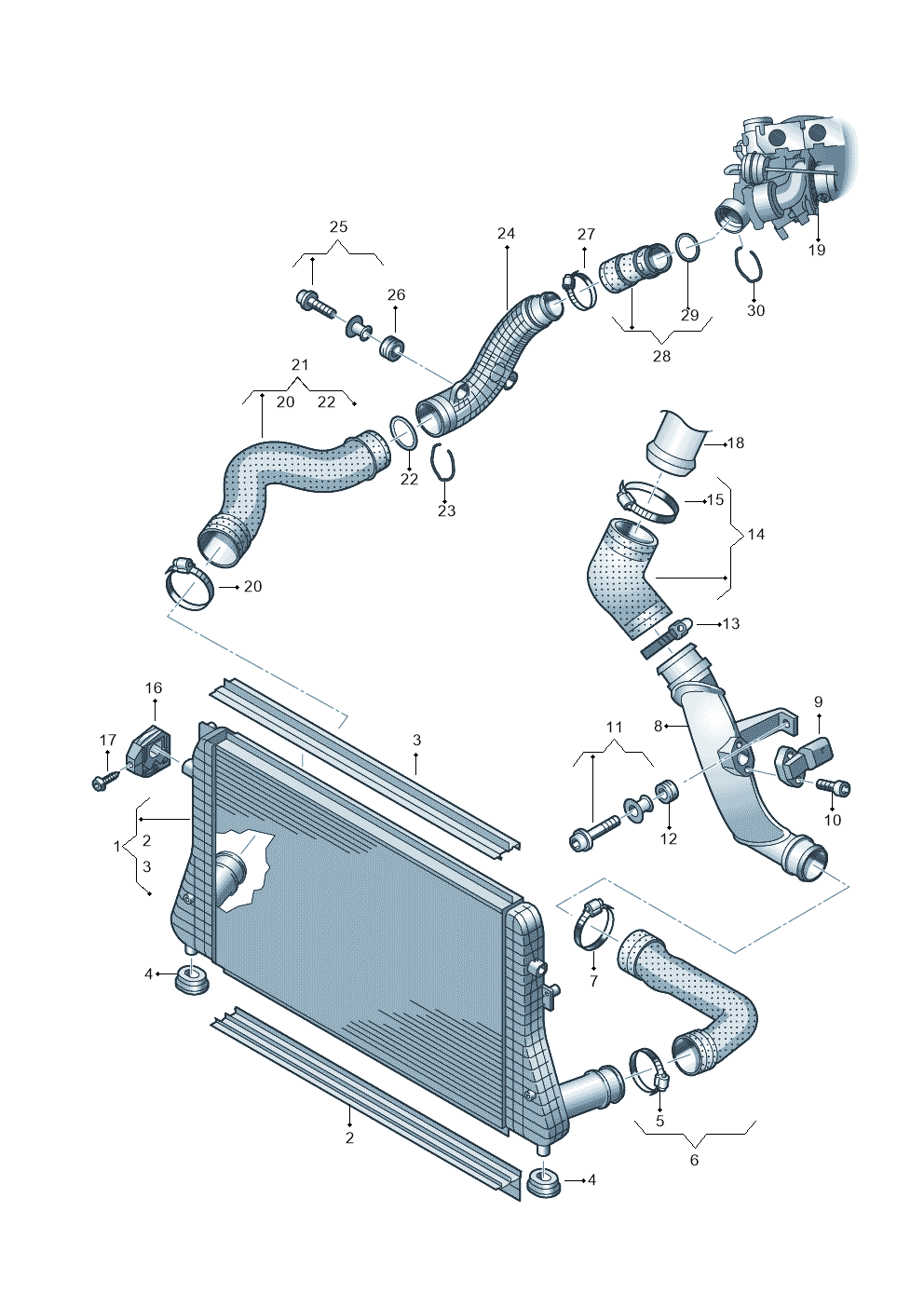

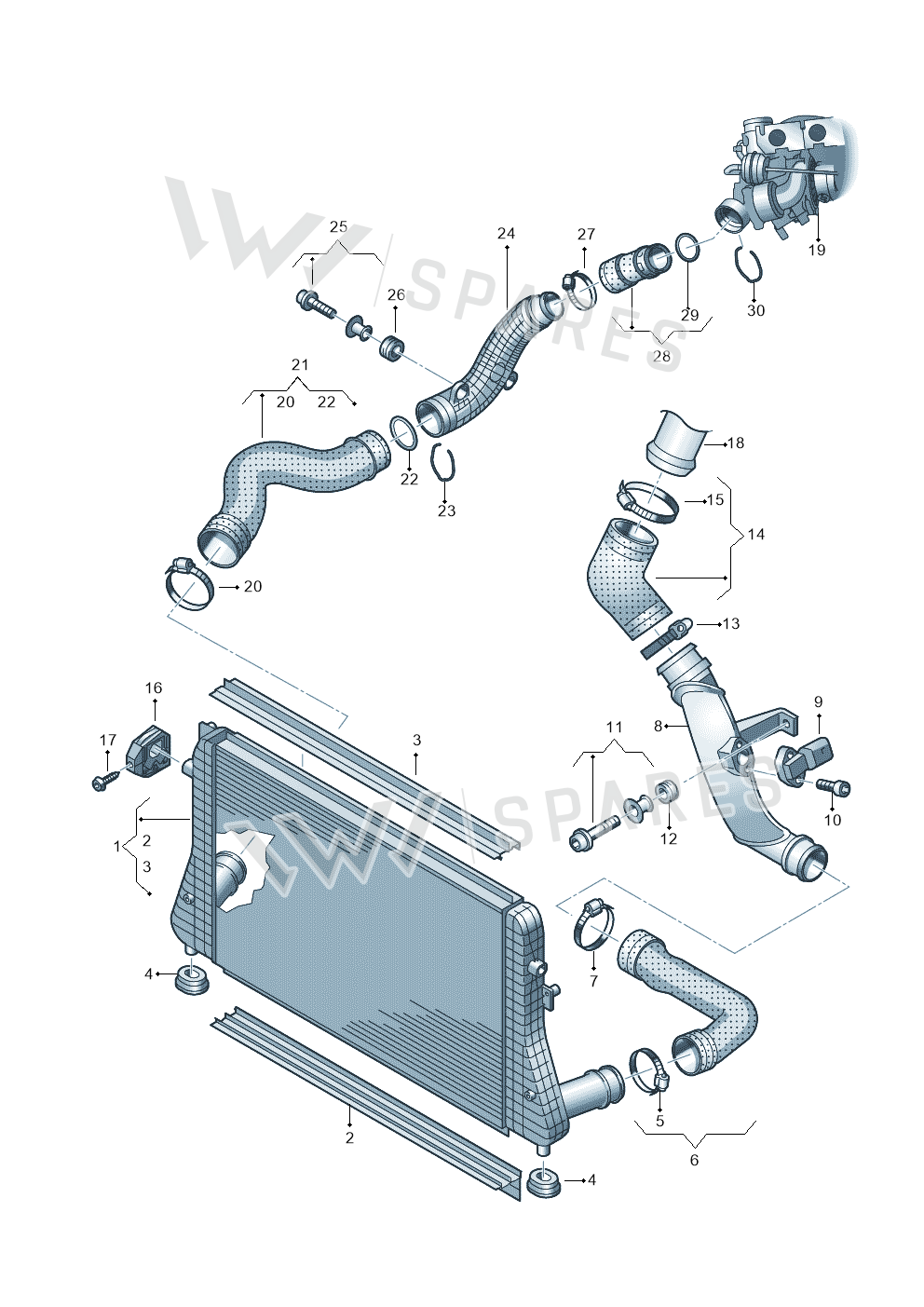

10 vehiclesCharge Air Cooler — locate Charge Air Cooler in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 2Seal 1K0121345AK
- 3Seal 1K0121345AJ
- 4Bush 1K0121367F
- 5Clamp N10735801
- 6Hose 1K0145834AJ
- 7Clamp N10518901
- 8Air Pipe 1K0145770AH
- 9Sensor 038906051D
- 10Bolt N90905903
- 11Socket 3C0145830
- 12Grommet 867129669
- 14Hose 1K0145838AG
- 15Clamp N10544401
- 16Bracket 1K0121367P
- 17Bolt N90808201
- 20Clamp N10735101
- 21Pipe 1K0145832AT
- 22Seal Ring 3C0145117F
- 23Clip 1K0145769J
- 24Air Pipe 1K0145840R
- 28Hose 1K0145828AC
- 29Seal Ring 3C0145117D
- 30Clip 1K0145769B
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Scirocco 2.0 | 2014-2017 | 1 | 1 | ||
| Golf Cabriolet | 2011-2016 | 1 | 1 | ||
| Passat CC | 2011-2016 | 1 | 1 | CCZB | TD6 |
| Golf | 2011-2013 | 1 | 1 | ||
| Passat saloon | 2010-2015 | 1 | 1 | ||
| Eos BlueMotion | 2010-2015 | 1 | 1 | ||
| Scirocco 2.0 | 2008-2014 | 1 | 1 | ||
| Passat CC | 2008-2012 | 1 | 1 | CCZB | TD6 |
| golf 2.0 | 2008-2011 | 1 | 1 | ||
| EOS 2.0 | 2008-2010 | 1 | 1 | TD6 |
Diagrams & fitment data powered by oemdiagrams.com
Charge Air Cooler is fitted on: Scirocco 2.0 2014-2017; Golf Cabriolet 2011-2016; Passat CC 2011-2016; Golf 2011-2013; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; Scirocco 2.0 2008-2014; Passat CC 2008-2012; golf 2.0 2008-2011; EOS 2.0 2008-2010.
