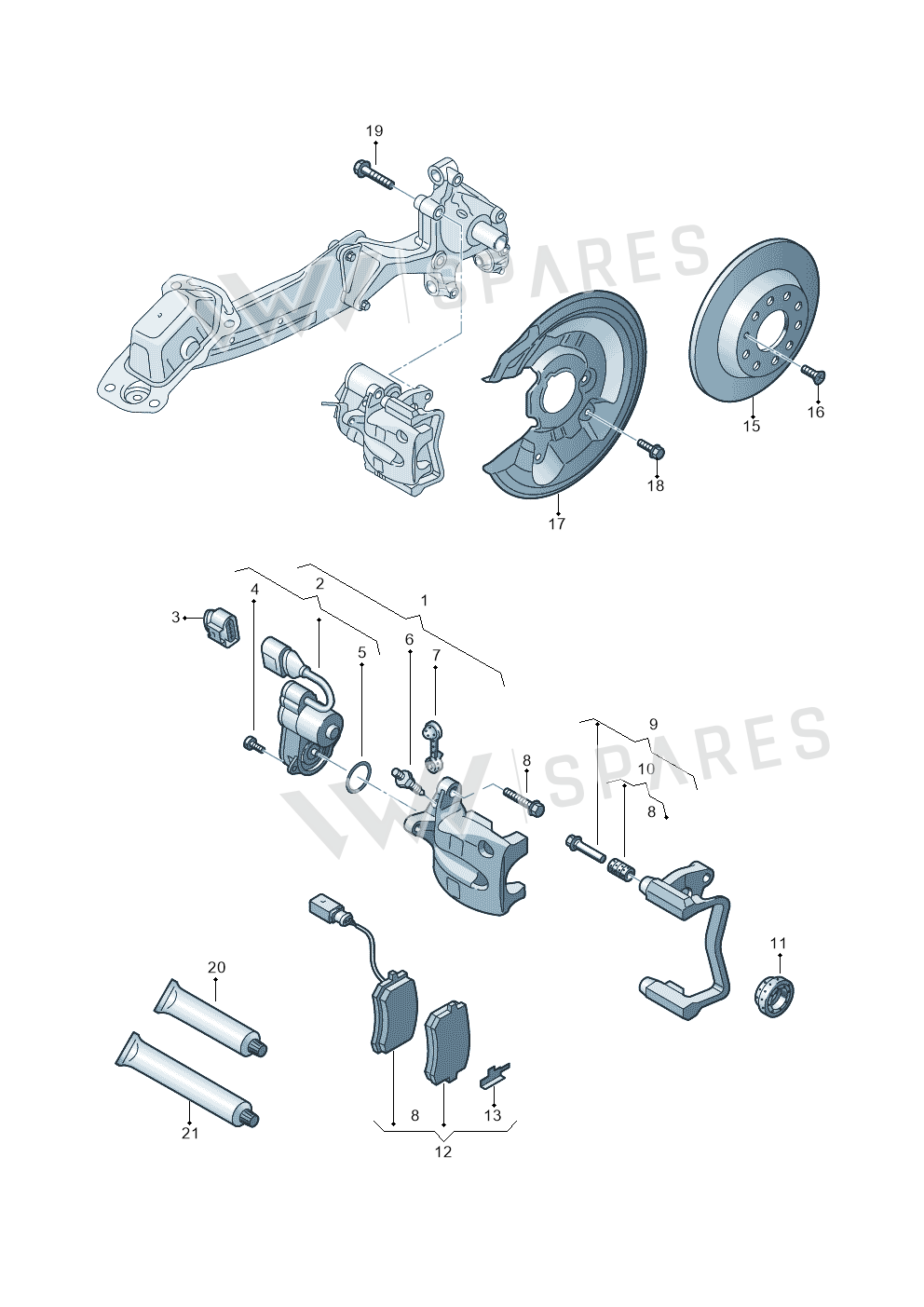

1 Set Of Brake Pads For Disk Brake exploded parts diagram — Tiguan 4Motion · 2011-2018, position 12
Exploded view
Tiguan 4Motion · 2011-2018 · position 12Full diagram ↓
3AA698451

3AA698451 1 Set Of Brake Pads For Disk Brake

£104.74
£86.56 excl. VAT
Supersession road7 numbers since 2007
  1. 3C0698451Not stocked
    Jul 2007
  2. 3C0698451BNot stocked
    Dec 2008
  3. 3C0698451DNot stocked
    Jul 2010
  4. 3C0698451FNot stocked
    Dec 2013
  5. 3AA698451This pageNot stocked
    Oct 2018
  6. 3AA698451ASuperseded
    Dec 2021
  7. 3AA698451BCurrent number
Current part number3AA698451BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

4 vehicles

1 Set Of Brake Pads For Disk Brake — locate 1 Set Of Brake Pads For Disk Brake in the official exploded view and explore the surrounding assembly.

Parts in this assembly26
Vehicle fitment table4

Europe (4)

VehicleYearsPos.Qty
Tiguan 4Motion2011-2018121
Passat CC2011-2016121
Sharan Blue Motion2010-2015121
Passat saloon2010-2015121

Diagrams & fitment data powered by oemdiagrams.com

1 Set Of Brake Pads For Disk Brake is fitted on: Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Sharan Blue Motion 2010-2015; Passat saloon 2010-2015.
