3B0614706A Brake Pipe
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

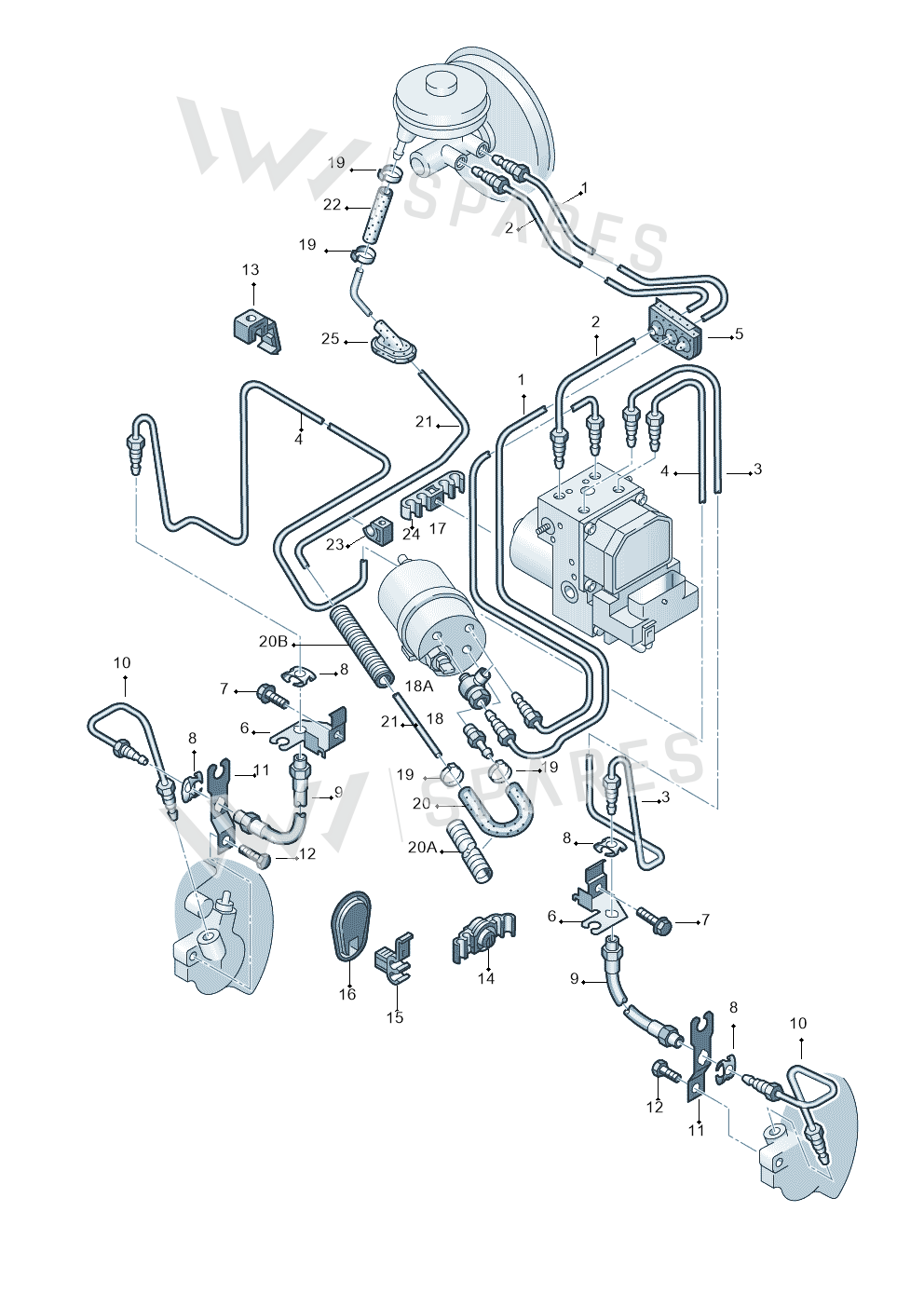

10 vehiclesBrake Pipe — locate Brake Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Brake Pipe 3B1614772C
- 2Brake Pipe 8E1614705G
- 3Brake PipeLeft8E0614723T
- 4Brake PipeRight8E0614724AD
- 5Grommet 8D0614769
- 6RetainerRight8D0611798C
- 6RetainerLeft8D0611797C
- 7Bolt N01021710
- 8Spring 4D0611715B
- 9Brake Hose 8D0611707B
- 10Brake PipeLeft8D0611721F
- 10Brake PipeLeft8D0611721E
- 10Brake PipeRight8D0611722E
- 10Brake PipeRight8D0611722F
- 11BracketLeft8D0615134
- 11BracketRight8D0615133
- 12Bolt N0102085
- 13Bracket 8D0611797G
- 14Bracket 4D0616797C
- 16Part 8D1611790
- 18Screw 4D0612275C
- 19Clamp N10095002
- 20Part 8E0614793
- 20APipe 893971788C
- 21Pipe 8E1614789A
- 23Clip 4D0201278Q
- 24Cable Tie N90643701
- 25Grommet 8E0614769B
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 17 | 1 | 1AT,1LE,1LT,1VB,1VG,1VH,1VJ,1ZC,1LC,L0L,L0R |
| Passat/4Motion/W8 | 2000-2002 | 17 | 1 | 1AT,1LE,1LT,1VB,1VG,1VH,1VJ,1ZC,1LC |
| AUDI RS4 AV. QU. | 2000-2001 | 17 | 1 | |
| Audi A4/Avant | 1999-2001 | 17 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 17 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 17 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 17 | 1 | |
| Passat | 1997-2000 | 17 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 17 | 1 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 17 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Brake Pipe is fitted on: PASSAT/4MOTION/W8 2002-2005; Passat/4Motion/W8 2000-2002; AUDI RS4 AV. QU. 2000-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998.
