3B0827633 Underlay
- 893853419Not stocked
Dec 2000 - 3B0827633This pageNot stocked
Mar 1999 - 3B0827633ANot stocked
Dec 1998 - 3B0827633BNot stocked
Feb 2000 - 3B0827633CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

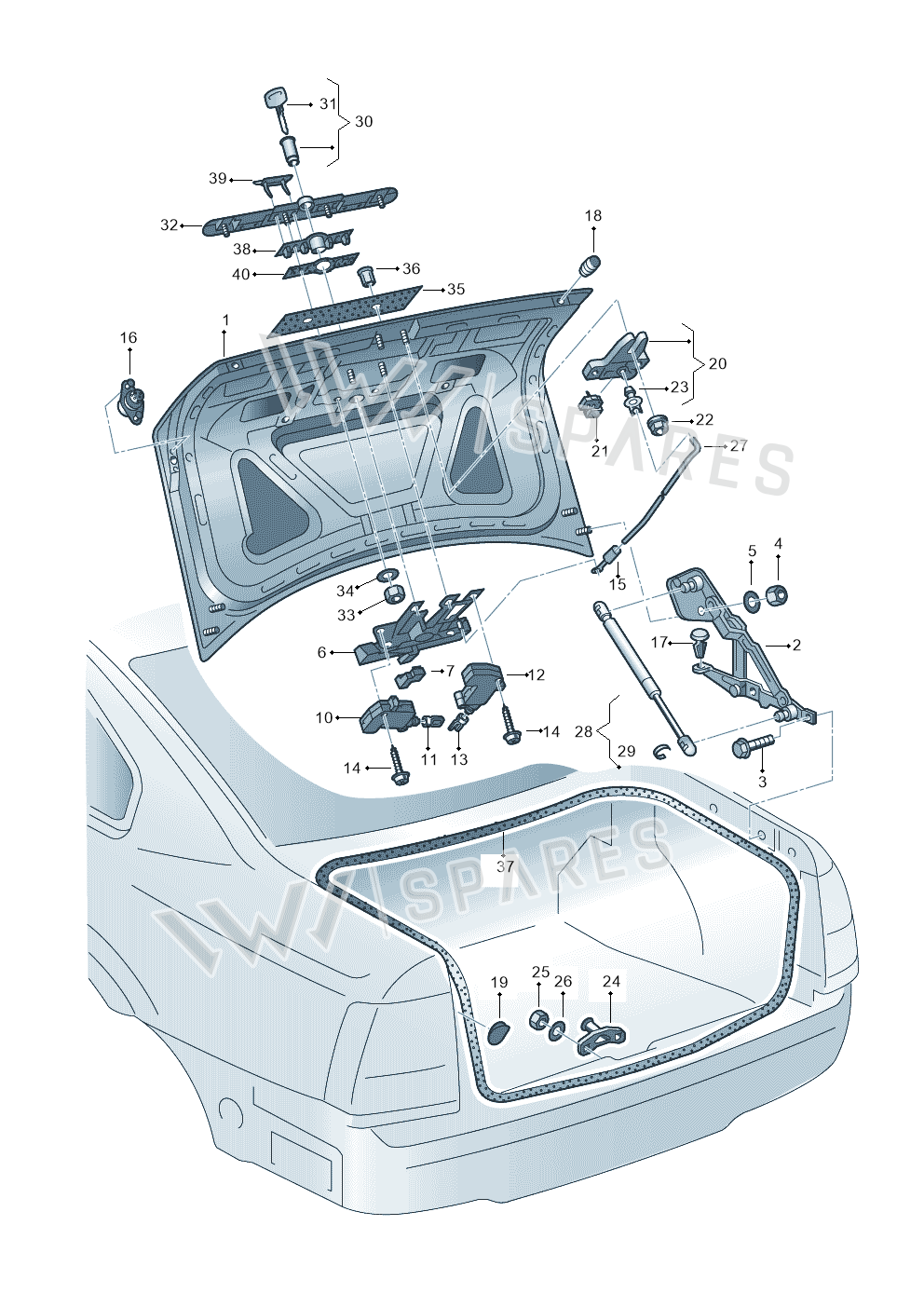

2 vehiclesUnderlay — locate Underlay in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Rear Lid 3B5827025D
- 1Rear Lid 3B5827025C
- 2HingeLeft3B5827301B
- 3Bolt N10155901
- 3Part N90304202
- 4Part N90650001
- 4Part N01100830
- 5Washer N90064101
- 7Switch 1J0962103
- 7Switch 1J0962103A
- 10Servomotor 3B0959781B
- 12Part 3B0959781C
- 13Connector Piece 3B0862247A
- 14Screw N90594201
- 15Clip 3B0827637
- 16Buffer 6N0827499
- 17Stop 8D5827499
- 18Buffer 867827500A
- 20Lock 3B5827505M
- 22Ut Hexagon Nut Self-locking Hexagon Nut N0230028
- 23Clip 191837199
- 25Part N01100624
- 26Washer N90066202
- 27Part 3B5827515A
- 28G Fill Str 8D5827552F
- 28Part 3B5827550A
- 29Clip 443823397
- 30Part 3B0827573A
- 30Cylinder 107827573JA
- 32Grip 3B0827577E
- 32Grip 3B0827577B
- 33Screw N0141335
- 35Underlay 3B0827633C
- 36Part N90479201
- 36Part N90626102
- 36Part N90766701
- 37Seal 3B5827705G
- 38Handle 3B0827757
- 39ActuatorRight3B0827778
- 39ActuatorLeft3B0827777
- 40Seal 3B0827965
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat | 1997-2000 | 35 | 1 |
| AUDI A3/S3/QUATTRO | 1996-2000 | 47 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Underlay is fitted on: Passat 1997-2000; AUDI A3/S3/QUATTRO 1996-2000.
