3B9827705C Seal
- 3B0827705Not stocked
Mar 1998 - 3B9827705CThis pageDiscontinued
Nov 2020
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

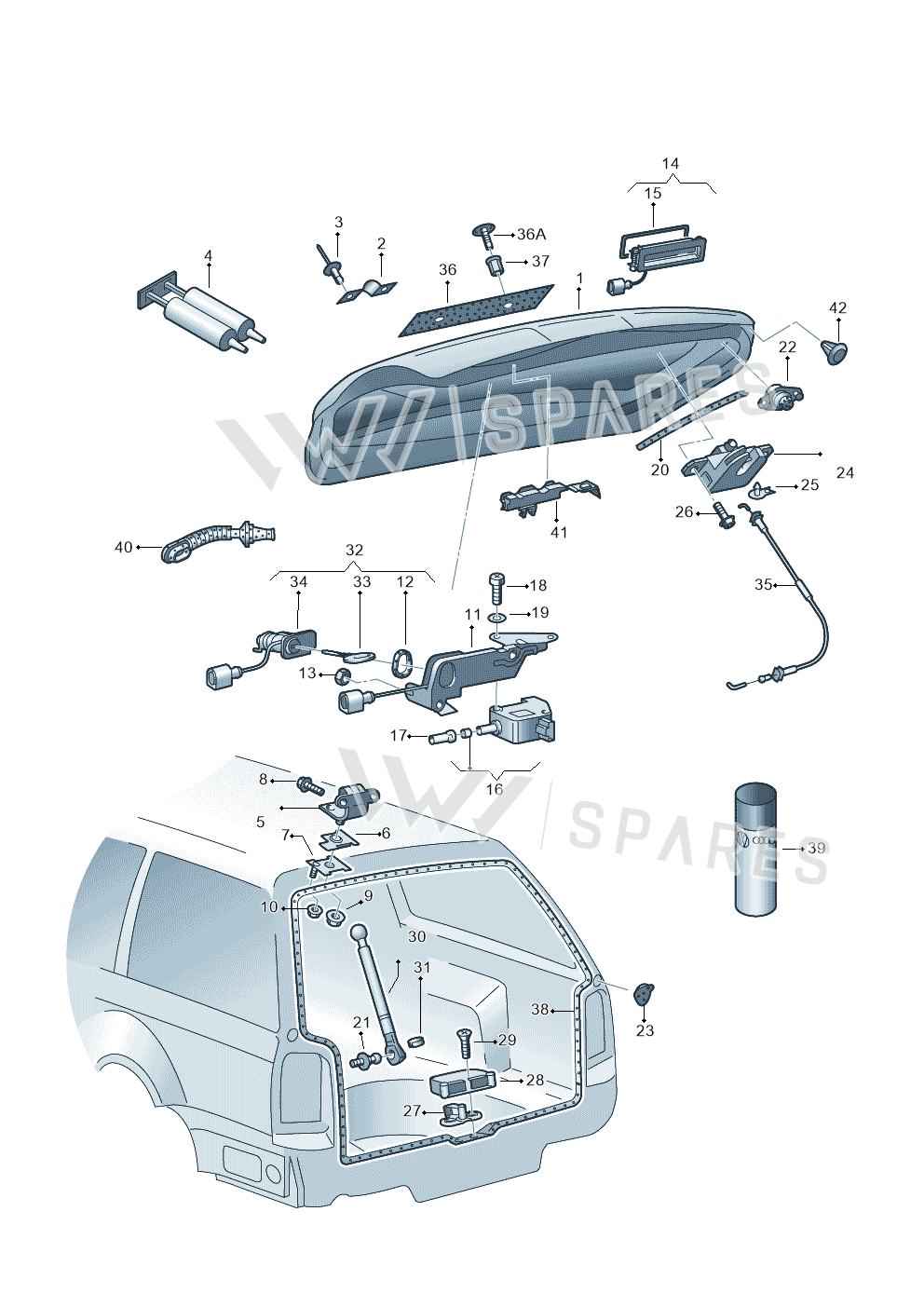

6 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Rear Lid 3B9827025AQ
- 1Rear Lid 3B9827025AR
- 2Clamp 3BE813297
- 3Rivet N10429401
- 42-pack Adh D173KD2A1
- 5Hinge 3B9827301E
- 6Seal 3B9827157A
- 8Bolt N90732203
- 9Collar Nut N01508311
- 10Ut Hexagon Nut Self-locking Hexagon Nut N02214811
- 11Holder 3B9827297C
- 12Seal 3B5827634
- 13Ut Hexagon Nut Self-locking Hexagon Nut N0230028
- 14Pickup 3B9827566C
- 15Seal 3B9827669
- 16Servomotor 3B5827061C
- 17Connector Piece 3B0862247B
- 18Screw N0141233
- 19Washer N0120973
- 20Seal 3B9827319
- 21Stud 1J6827439A
- 22Buffer 1H9827499
- 24Part 3B9827505E
- 25Clip 191837199
- 26Screw N90744903
- 27Plate 2K0827511
- 27Plate 1T0827517A
- 28Part 3B9864301C
- 28Part 3B9864301A
- 29Screw N90744803
- 29Bolt N90840601
- 30G Fill Str 1J6827550C
- 31Clip 1H5827905
- 31Clip 443823397
- 32Lock Cylinder 3B0827573G
- 32Cylinder 107827573JE
- 34Switch 3B0962103A
- 35Lid Cable 3B9827531A
- 36Underlay 3B0827633C
- 37Part N90766702
- 39Greas Spry G052778A2
- 41Cover 3B9827569
- 42Bungs 1J0827713
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT/4MOTION/W8 | 2002-2005 | 38 | 1 | K8D |
| Passat/4Motion/W8 | 2000-2002 | 38 | 1 | K8D |
| Passat syncro/4Motion | 1998-2000 | 36 | 1 | |
| Passat | 1997-2000 | 36 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 36 | 1 | ||
| 3B0 platform | 38 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: PASSAT/4MOTION/W8 2002-2005; Passat/4Motion/W8 2000-2002; Passat syncro/4Motion 1998-2000; Passat 1997-2000; 3B0 platform.
