3C0819801A Air Channel For Pass Cabin Heater
- 3C0819801Not stocked
Jun 2011 - 3C0819801AThis pageNot stocked
Jun 2014 - 8U0819801Superseded
Sep 2018 - 8U0819801ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

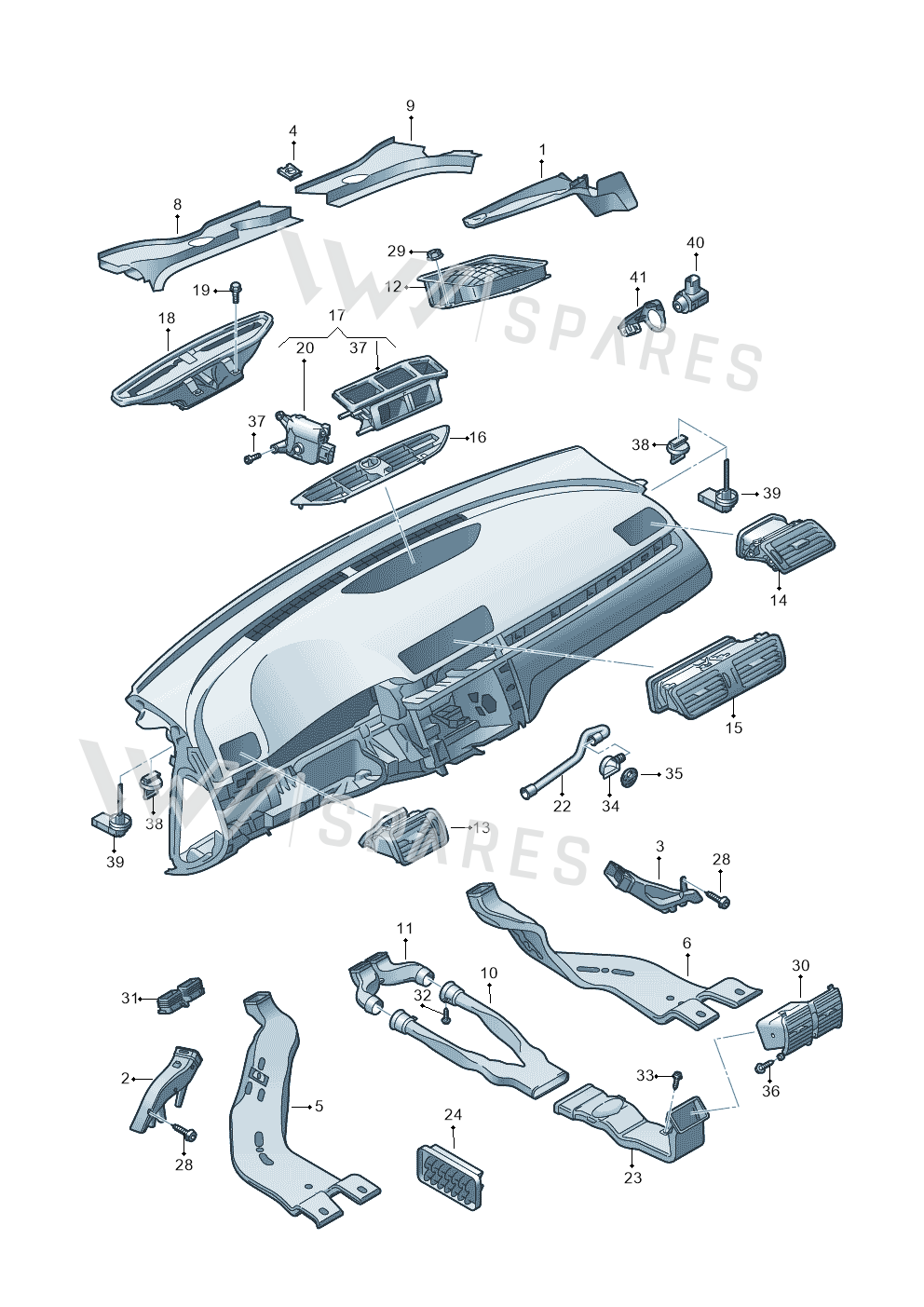

8 vehiclesAir Channel For Pass Cabin Heater — locate Air Channel For Pass Cabin Heater in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Cover 3C2815159D
- 1Cover 3C1815159C
- 2Vent 3C2819151
- 2Vent 3C1819151
- 3Vent 3C2819152
- 3VentRight3C1819152
- 4Clip 3B0819145
- 6Air ChannelRight3C0819802A
- 8DeflectorLeft3C8819403A
- 8DeflectorLeft3C8819403
- 9DeflectorRight3C8819404A
- 9DeflectorRight3C8819404
- 11Air Guide 3C0819655A
- 12Cover 1K0941369A
- 12Manifold 1K0815479B
- 13Air VentLeft3C2819701E
- 13Air VentLeft3C1819701F
- 13Air VentLeft3AB819701A
- 13Air VentLeft3AC819701A
- 14Air VentRight3C2819702E
- 14Air VentRight3C1819702F
- 14Air VentRight3AB819702A
- 14Air VentRight3AC819702A
- 15Air Vent 3C2819728E
- 15Air Vent 3C1819728F
- 15Air Vent 3AB819728A
- 15Air Vent 3AC819728A
- 16Cover 3C0819153B
- 17Intermed 3C1819241E
- 17Intermed 3C2819241B
- 17Intermed 3C2819241F
- 17Intermed 3C1819241D
- 17Intermed 3C1819241J
- 18Intermed 3C2819063
- 18Intermed 3C1819063B
- 20Servomotor 3C0907511
- 22Hose 3C2816311
- 22Hose 3C1816311
- 24Trim 3C0819465
- 28Bolt N90698606
- 29Collar Nut N01508210
- 30Vent 3C0819203B
- 30Vent 3AA819203
- 31Part 1K0819663
- 34Union 1K0820731
- 35Valve 3B0816355
- 36Screw N10526302
- 38Bungs 1T0857489
Vehicle fitment table8
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Passat saloon | 2010-2015 | 5 | 1 | |
| Passat CC | 2008-2012 | 5 | 1 | |
| passat estate | 2008-2011 | 5 | 1 | L0L |
| TIGUAN 08> | 2007- | 5 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Magotan 1.4 | 2011-2012 | 5 | 1 | |
| Tiguan | 2009-2019 | 5 | 1 | |
| MAGOTAN (PASSAT) 07> | 2007- | 5 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3C0 platform | 5 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Air Channel For Pass Cabin Heater is fitted on: Passat saloon 2010-2015; Passat CC 2008-2012; passat estate 2008-2011; TIGUAN 08> 2007-; Magotan 1.4 2011-2012; Tiguan 2009-2019; MAGOTAN (PASSAT) 07> 2007-; 3C0 platform.
