Target · Diagram

Find this reference above

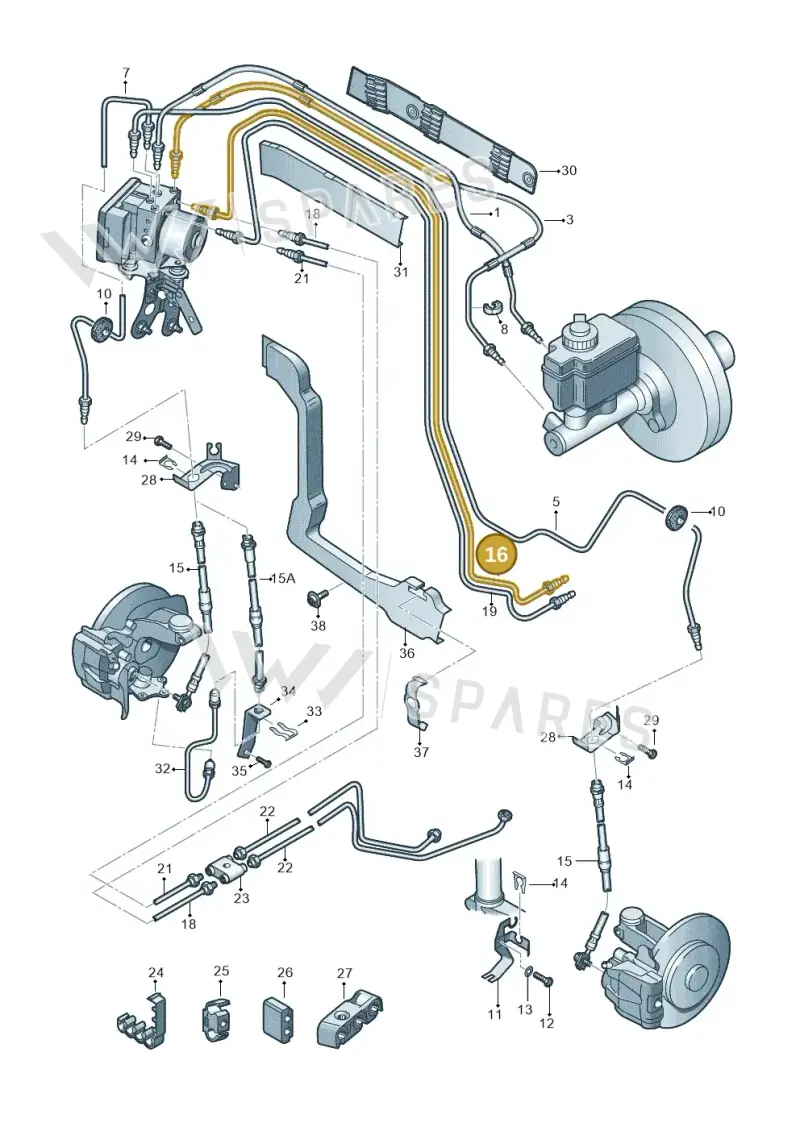

Number 16 marks the part’s position in this exploded view (Volkswagen Passat estate (2008-2011)).

Other diagrams in the gallery may use a different number for the same part.

Supersession roadoldest to newest

3C1614742A
Not stocked Apr 2007
3C1614742D
Discontinued May 2026
You are here

3C1614742ANot stocked
Apr 2007
3C1614742DThis pageDiscontinued
May 2026

Genuine Original OEM · Brand New

Brakes

3C1614742D Volkswagen Brake Pipe

Selected configuration: GENUINE VOLKSWAGEN

Supersession roadoldest to newest

3C1614742A
Not stocked Apr 2007
3C1614742D
Discontinued May 2026
You are here

3C1614742ANot stocked
Apr 2007
3C1614742DThis pageDiscontinued
May 2026

Not sure if this fits your vehicle?

Share your VIN or chassis code and our fitment team will validate compatibility before you place the order.

Key specifications

SKU: 3C1614742D
Manufacturer Part Number: 3C1614742D

Product overview

Genuine OEM Volkswagen Brake Pipe, part number 3C1614742D. This brake pipe transports brake fluid under pressure from the master cylinder to the brake calipers or wheel cylinders. It is located at position 16 in the brake system assembly. Made from durable metal to withstand high pressures. Genuine OEM brake pipes ensure precise fluid delivery and system integrity, critical for safe braking performance.
