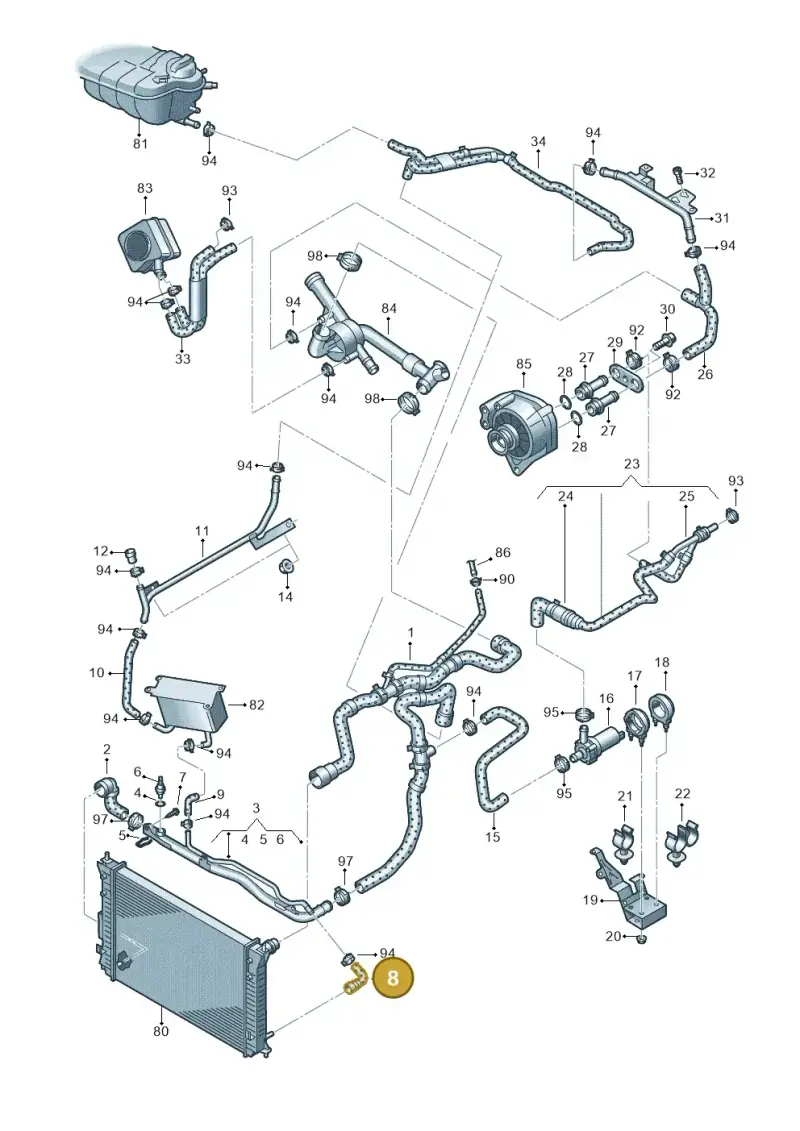

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose, part number 3D0122096. This flexible hose is a crucial component for the engine cooling system, ensuring proper coolant circulation. It is located in the engine bay, connecting various parts of the cooling circuit. Made from durable rubber and plastic materials for long-lasting performance. Genuine OEM parts are manufactured to exact specifications for optimal fit and function.
Technical details
- Category
- Other
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.5 × 8 × 3.3 cm
- Shipping weight
- 0.05 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

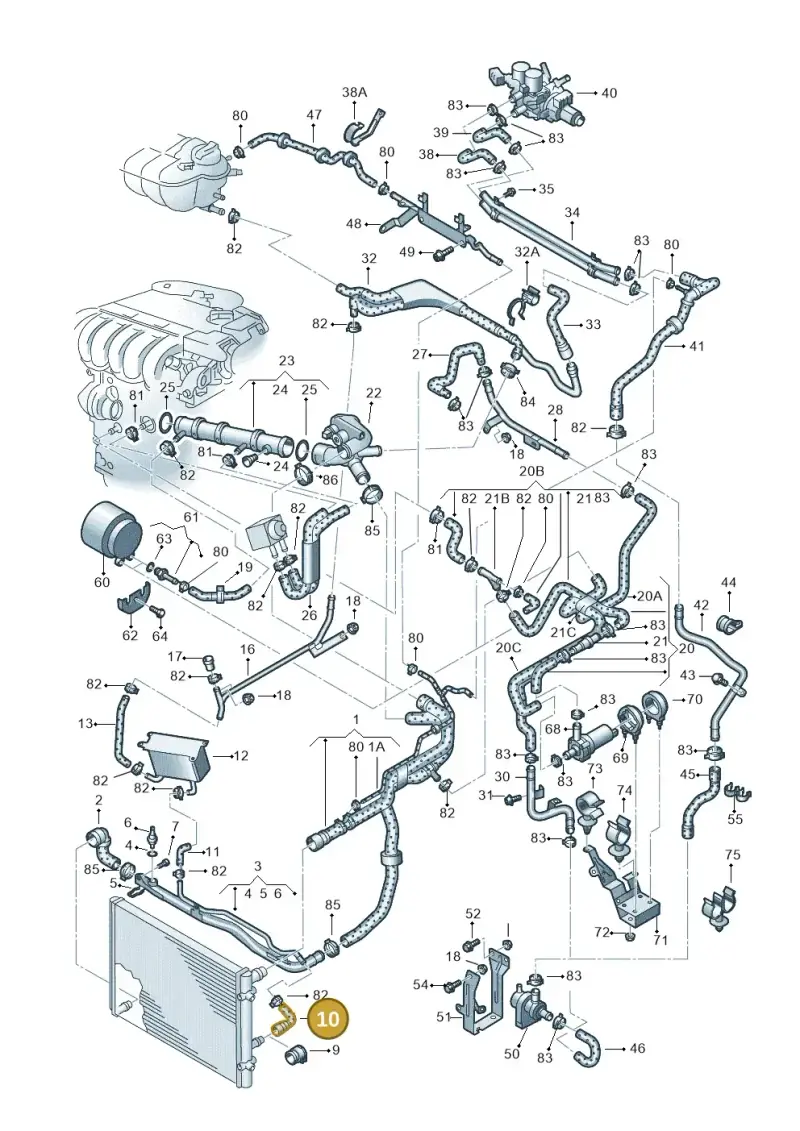

4 vehiclesCoolant Hose With Quick Release Coupling — locate 3D0122096 Volkswagen Coolant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Part 3D0122049N
- 2Part 3D0122051R
- 3Water Pipe 3D0121065EP
- 4Seal Ring N90316801
- 5Spring 032121142
- 6Sender 06A919501A
- 7Bolt N90817003
- 9Hose 3D0121096K
- 10Hose 3D0121058E
- 11Water Pipe 3D0121065ES
- 12Part 1J0121324
- 14Collar Nut N01508213
- 15Hose 3D0121063AS
- 16Pump 3D0965561D
- 17Mounting 066959209
- 18Rubber Bush 035959209F
- 19Bracket 3D0121079AB
- 20Collar Nut N90736603
- 21Bracket N10486801
- 22Bracket N10576501
- 23Hose 3D0122063CN
- 24Valve 1J0122351
- 25Junction 1J0121087E
- 26Hose 7L0121156A
- 27Connection 059121131B
- 28Seal Ring N90783401
- 29Bracket 057121077
- 30Bolt N10156206
- 31Bracket 7L0121065H
- 32Bolt N90989901
- 33Hose 03H121049A
- 34Hose 3D0122073AM
- 90Clamp N90686701
- 92Clamp N90770201
- 93Clamp N90926401
- 94Clamp N90686901
- 95Clamp N90687001
- 97Clamp N90687201
- 98Clamp N90926501
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. |
|---|---|---|
| phaeton 4motion | 2010-2016 | 8 |
| phaeton 4motion | 2008-2010 | 8 |
| PHAETON 08> | 2007- | 10 |
| Phaeton (lang) | 2003-2006 | 10 |
Diagrams & fitment data powered by oemdiagrams.com
3D0122096 Volkswagen Coolant Hose | Genuine OEM is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
