3D0399313P Support Frame
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

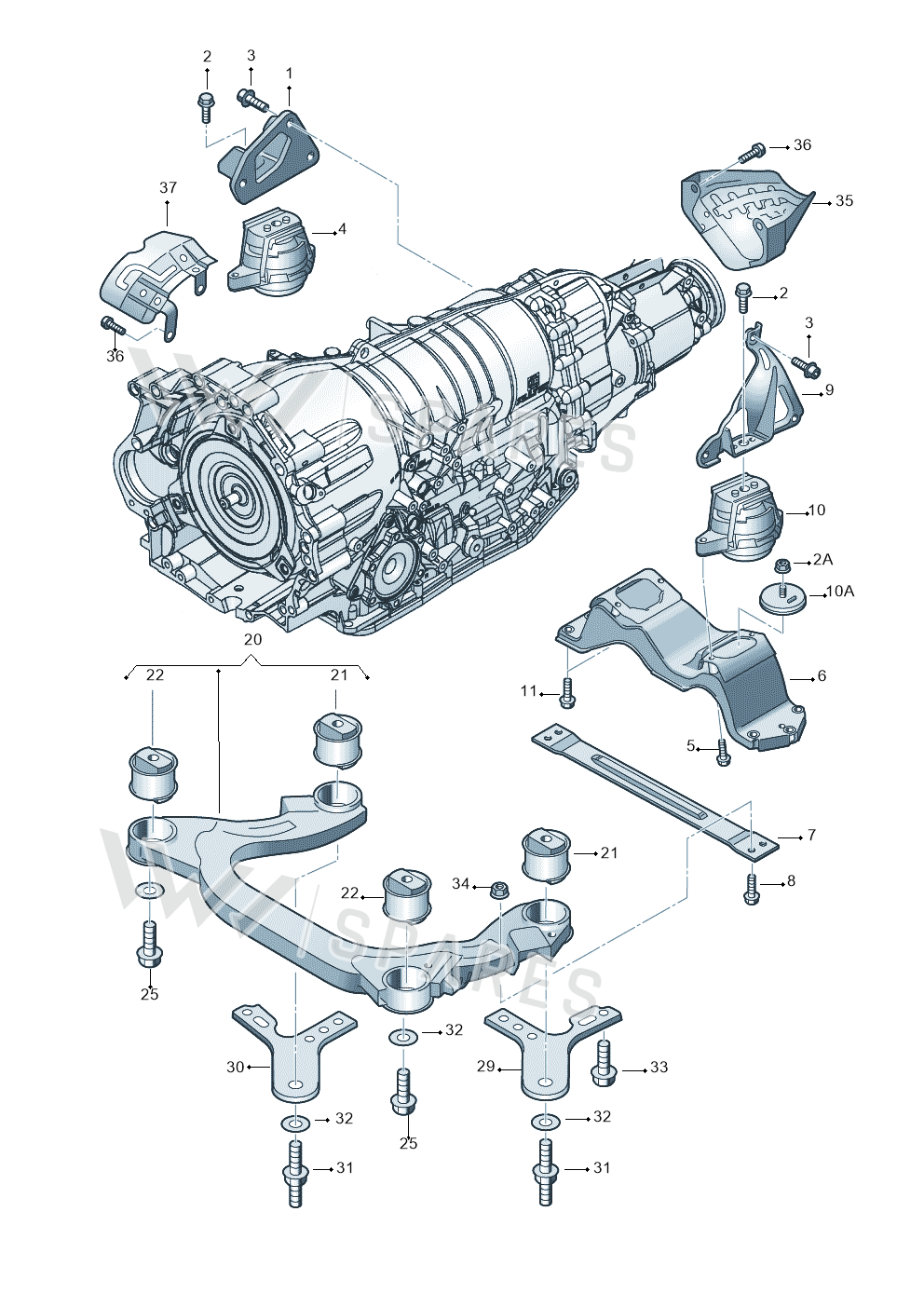

4 vehiclesSupport Frame — locate Support Frame in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1SupportRight3D0399114AB
- 1SupportRight3D0399114AC
- 1SupportRight3D0399114M
- 2Screw N90320206
- 2ACollar Nut N01508315
- 3Screw N90968902
- 4PartRight3D0399151AS
- 4Rubber BushRight3D0399152N
- 5Bolt N10415402
- 5Screw N91102201
- 5Screw N90351404
- 6Cross Member 3D0399263BA
- 6Cross Member 3D0399263BD
- 6Cross Member 3D0399263AS
- 7Brace 3D0399403D
- 7Brace 3D0399403B
- 8Bolt N90958803
- 9Gearb SupLeft3D0399113AQ
- 9Gearb SupLeft3D0399113AS
- 9Gearb SupLeft3D0399113AC
- 10Rubber BushLeft3D0399151AR
- 10ARubber BushLeft3D0399205A
- 11Bolt N10323205
- 20Frame 3D0399313M
- 21Mounting 3D0505145B
- 21Rubber Bush 4E0399419
- 22Rubber Bush 4D0399415K
- 25Bolt N91037801
- 25Bolt N90975302
- 29SupportLeft3D0399541
- 30SupportRight3D0399542
- 31Bolt N90964802
- 32Washer N90625003
- 33Bolt N10285906
- 34Collar Nut N10286110
- 35Plate 4E0301325A
- 36Screw N10578904
- 37Plate 4F0301325
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 20 | 1 | KUK,LCM,MJA, | MJ |
| phaeton 4motion | 2008-2010 | 20 | 1 | KUK,KZG,LCM | |
| PHAETON 08> | 2007- | 20 | 1 | HYV,HYX,JSH, | |
| Phaeton (lang) | 2003-2006 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Support Frame is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
