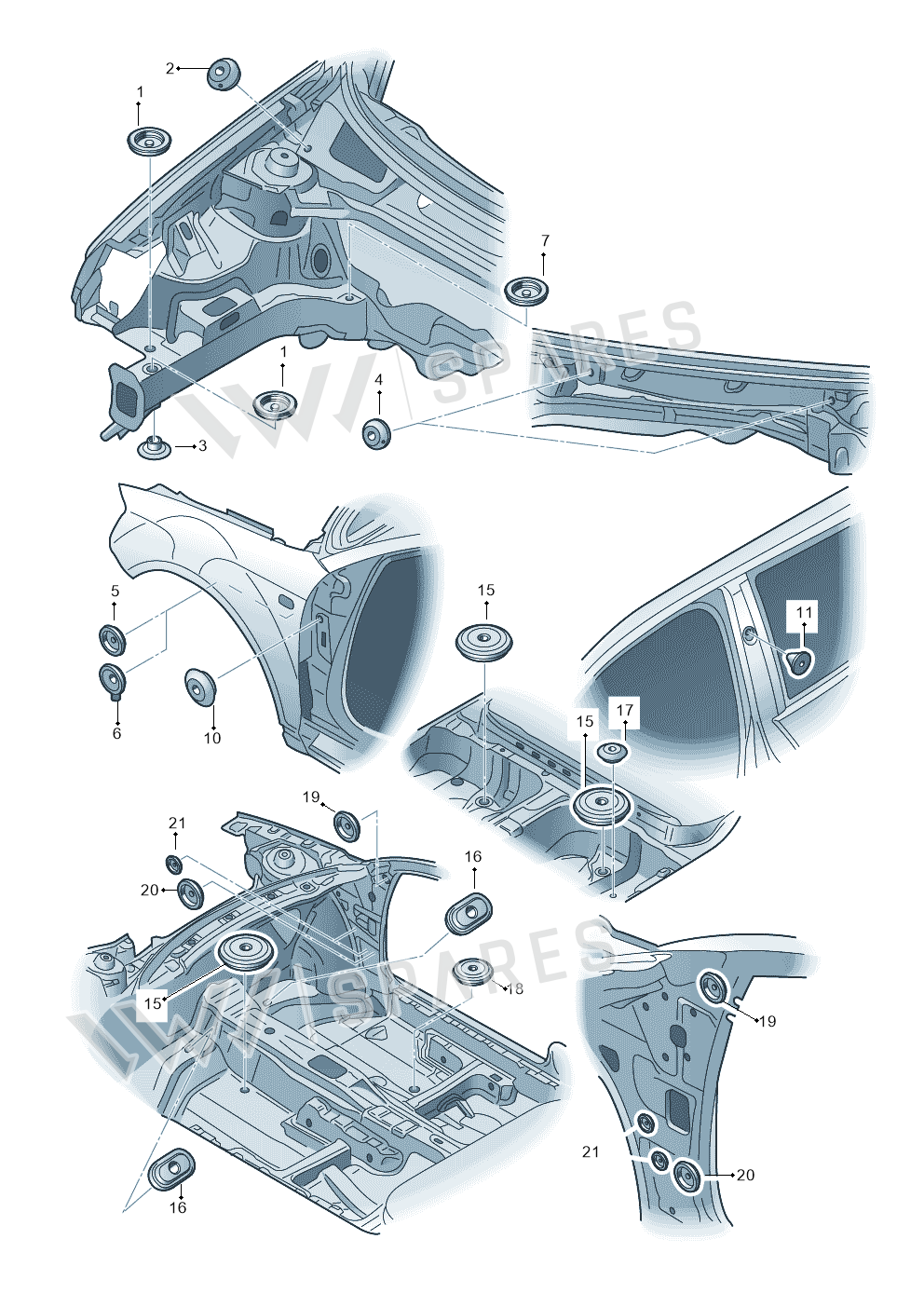

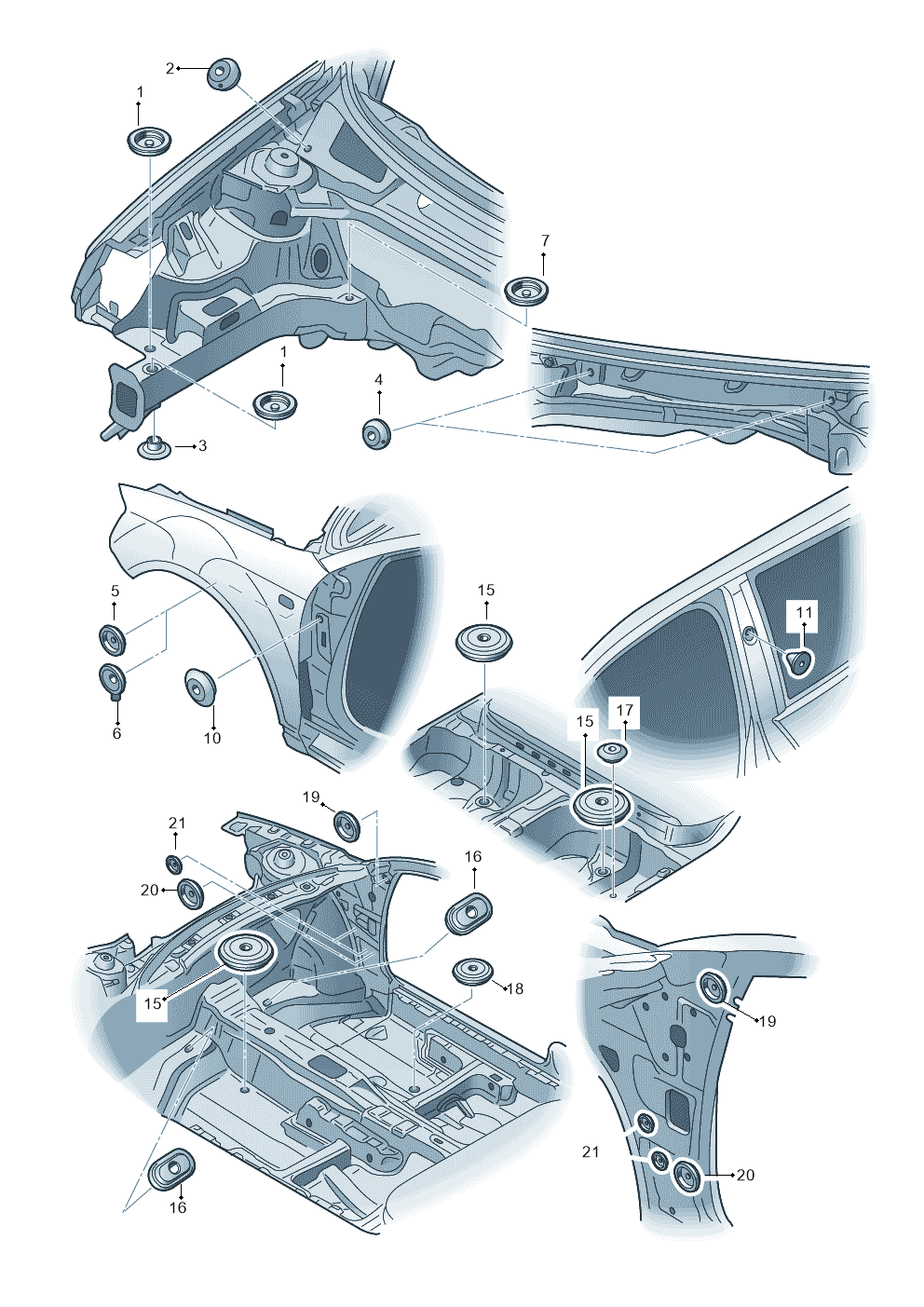

Grommet exploded parts diagram — Audi A3/S3/quattro · 2005-2007, position 2
Exploded view
Audi A3/S3/quattro · 2005-2007 · position 2Full diagram ↓
3D0823591

3D0823591 Grommet

£1.85
£1.53 excl. VAT
Supersession road4 numbers since 1992
  1. 191823591Not stocked
    Jun 1992
  2. 357823591Superseded
    Oct 2011
  3. 3D0823591This pageNot stocked
    Mar 2007
  4. 1K0823591BCurrent number
Current part number1K0823591BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

35 vehicles

Grommet — locate Grommet in the official exploded view and explore the surrounding assembly.

Parts in this assembly13
Vehicle fitment table35

Europe (13)

VehicleYearsPos.QtyPR
Audi A3/S3/quattro2005-200721K8G,K8R
New Beetle Cabrio.2003-2005311
TOURAN2003-2005282
GOLF CABRIO2002-2002231
New Beetle2001-2005311L0L
GOLF/VAR./4MOT. A4 022001-2002181
Jetta Wagon 022001-2002181K8B
Jetta Wagon2001-2001181
LUPO/3L TDI1998-2003201
New Beetle1998-2001311
Golf1998-2000181
Derby (MEX)1994-1996171
GOLF,JETTA (MEX)1987-1992211

Other markets (20)

VehicleYearsPos.QtyPR
bora2008-2016511
POLO JIN QIN "CN"06>2006-254
POLO JIN QV "CN"06>2006-254
BORA-GP-FAW 07>2006-181
Jetta City "MEX"05>072006-2007181
CADDY-FAW "CN" 05>2005-282
AUDI A3 "BR."M.06>2005-2006223
TOURAN (SVW) "CN"04>2004-282
POLO CLASSIC "CN"03>062003-2006254
POLO CLASSIC (AUS) "CN"03>062003-2006254
POLO "CN"02>062002-2006254
Jetta USA2001-2005181
AUDI A3-BRASIL.2000-2005223
Golf Cabrio "USA","Mex"99>021998-2002231
Jetta "USA"99>011998-2001181
Golf/Jetta "USA","Mex"97>991996-1998231
Golf Cabrio "USA","MEX"96>991995-1998231
Golf/Jetta "USA","MEX"93>961992-1996231
JETTA (FAW) 91>1991-191
Golf/Jetta "USA","MEX"89>921988-1992191

Platform / generic diagrams (2)

VehicleYearsPos.QtyPR
1J0 platform181
1J0 platform223

Diagrams & fitment data powered by oemdiagrams.com

Grommet is fitted on: Audi A3/S3/quattro 2005-2007; New Beetle Cabrio. 2003-2005; TOURAN 2003-2005; GOLF CABRIO 2002-2002; New Beetle 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; LUPO/3L TDI 1998-2003; New Beetle 1998-2001; Golf 1998-2000; Derby (MEX) 1994-1996; GOLF,JETTA (MEX) 1987-1992; bora 2008-2016; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; BORA-GP-FAW 07> 2006-; Jetta City "MEX"05>07 2006-2007; CADDY-FAW "CN" 05> 2005-; AUDI A3 "BR."M.06> 2005-2006; TOURAN (SVW) "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006; Jetta USA 2001-2005; AUDI A3-BRASIL. 2000-2005; Golf Cabrio "USA","Mex"99>02 1998-2002; Jetta "USA"99>01 1998-2001; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996; JETTA (FAW) 91> 1991-; Golf/Jetta "USA","MEX"89>92 1988-1992; 1J0 platform.
