3D0898471 Gasket Set
- 3D0898471This pageNot stocked
Apr 2017 - 3D0898471ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

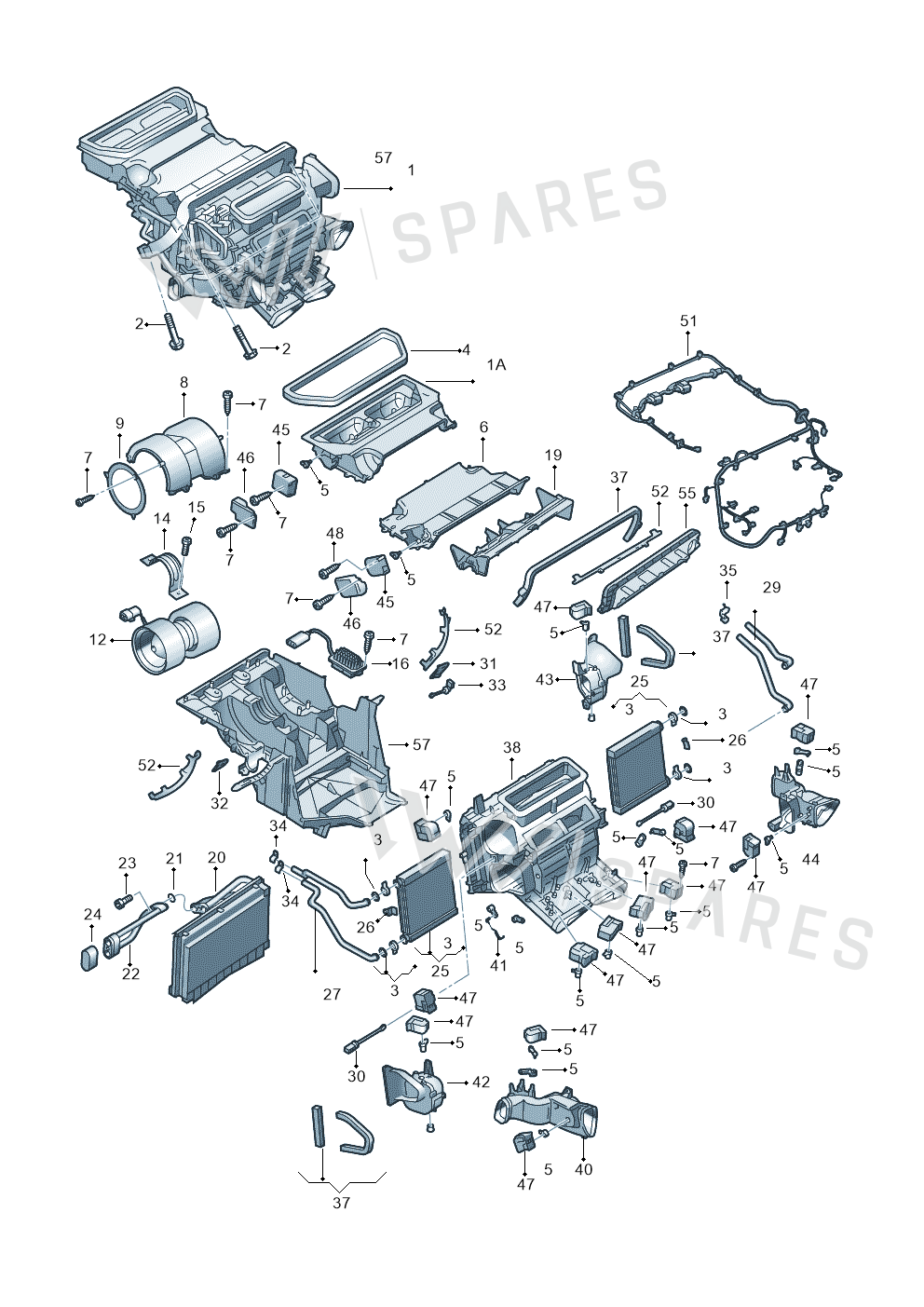

3 vehiclesGasket Set — locate Gasket Set in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Aircon 3D2820003C
- 1Aircon 3D1820003N
- 1AInt Duct 3D0898150
- 2Bolt N90652901
- 3Gask Set 3D0898380
- 4Seal 3D0820513A
- 5Lever 3D2898001
- 5Lever 3D0898001
- 6Int Duct 3D0898160
- 6Int Duct 3D0898160A
- 7Screw N0139649
- 8Cover 4E0815057
- 9Ring 4D0815061
- 12Engine 3D0959101
- 14Bracket 4D0815135
- 16Regulator 3D0907521A
- 19Cover 4D0820231A
- 19Cover 4D0820231B
- 20Evaporator 4D0898037A
- 21Seal Ring 4D0819380B
- 21Seal Ring 4D0819380A
- 22Pipe 3D0820111A
- 24Seal 3D0820099
- 25Heat Exch 3D0898030
- 26Bracket 4D0820536C
- 27PipeLeft3D2898350
- 27PipeLeft3D1898350
- 29PipeRight3D2898351A
- 29PipeRight3D1898350A
- 30Temperature Sensor 4E0820539
- 31GrommetRight4D0819699D
- 32GrommetLeft4D0819498A
- 32GrommetLeft4D0819498B
- 33Temperature Sensor 4E0907543
- 34Pipe HoldeLeft4E0820536C
- 35Pipe HoldeRight4D0820536A
- 38Housing 3D0898353
- 40Air ChannelLeft3D2820689
- 40Air ChannelLeft3D1820689
- 41Lever 3D0898002
- 42SupportLeft3D1820695
- 43SupportRight3D1820696
- 44Air ChannelRight3D2820690
- 44Air ChannelRight3D1820690
- 45Servomotor 4D0820511
- 46Cover 3D1819422
- 47Servomotor 3D0959311
- 51Wiring Set 3D2971565
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| phaeton 4motion | 2008-2010 | 37 |
| PHAETON 08> | 2007- | 37 |
| Phaeton (lang) | 2003-2006 | 37 |
Diagrams & fitment data powered by oemdiagrams.com
Gasket Set is fitted on: phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
