United States
3D1723528B Rosette
- 3D1723528BThis pageNot stocked
Sep 2002
- 3D1723528B4H5Current · not stocked3D1723528B4H5Current · not stocked
- Discontinued Jul 20263D1723528B5J6Discontinued
Jul 2026 - Discontinued Feb 20243D1723528B7H7Discontinued
Feb 2024 - Discontinued Jul 20263D1723528B71NDiscontinued
Jul 2026 - 3D1723528B92FCurrent · not stocked3D1723528B92FCurrent · not stocked
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

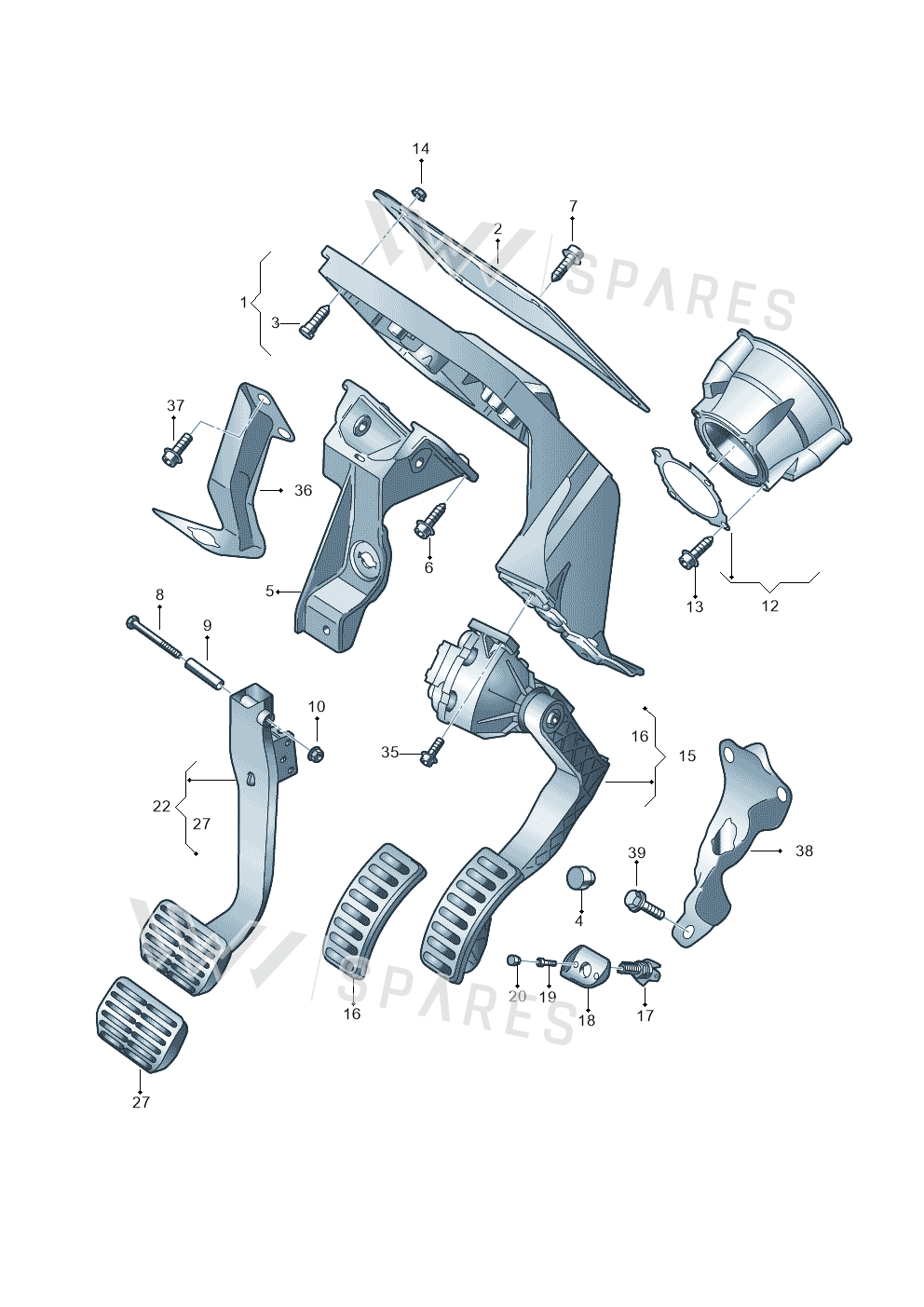

4 vehiclesRosette — locate Rosette in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Bracket 3D1721111A
- 1Bracket 3D2723111A
- 1Bracket 3D1723111E
- 2Seal 3D2723410
- 2Seal 3D1721043C
- 4Stop 7M0721193
- 5Mounting 3D1721196D
- 6Screw N91141901
- 8Bolt N10610001
- 9Part 3D2723545
- 9Bush 3D1721561B
- 10Collar Nut N02300313
- 12Sleeve 3D0612357A
- 15Accel Ped 3D1721503L
- 15Accel Ped 3D1721503M
- 15Accel Ped 3D1721503N
- 15Accel Ped 3D1721503P
- 15Accel Ped 3D2723503C
- 15Accel Ped 3D2723503D
- 15Accel Ped 3D2723503E
- 15Accel Ped 3D2723503F
- 16Ap Cap For Accelerator Pedal Cap For 8N2721647B
- 16Ap Cap For Accelerator Pedal Cap For 8N1721647B
- 17Stop 4E0721522A
- 18Rosette 3D2723528B
- 18Rosette 3D2723528C
- 19Bolt N10430103
- 20Part 3D1723529
- 22Pedal 3D1721139E
- 22Pedal 3D2723150
- 22Pedal 3D1723139
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D1723173A
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D2723173A
- 27Ap Cap For Foot Brake Pedal Cap For Foot Brake 3D1721173
- 35Screw N90771601
- 36Support 3D2723673
- 37Bolt N10714801
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 18 | 1 | L0L |
| phaeton 4motion | 2008-2010 | 18 | 1 | L0L |
| PHAETON 08> | 2007- | 18 | 1 | L0L |
| Phaeton (lang) | 2003-2006 | 18 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Rosette is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Phaeton (lang) 2003-2006.
