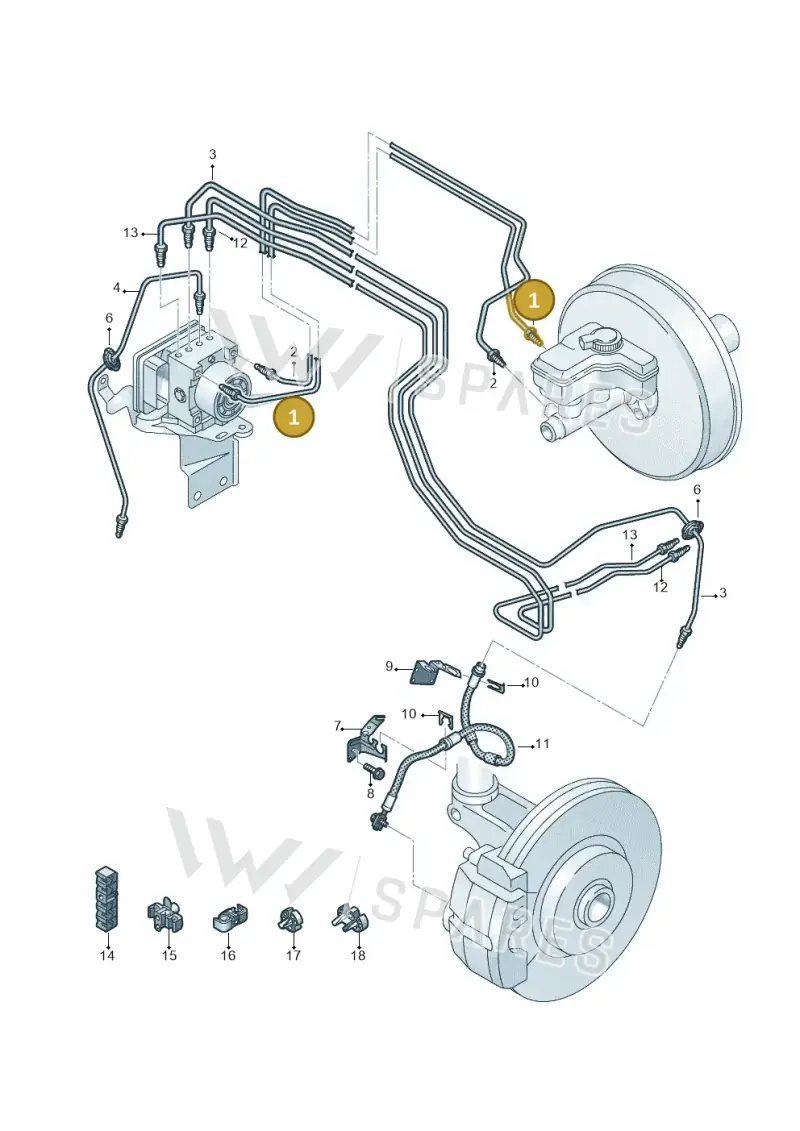

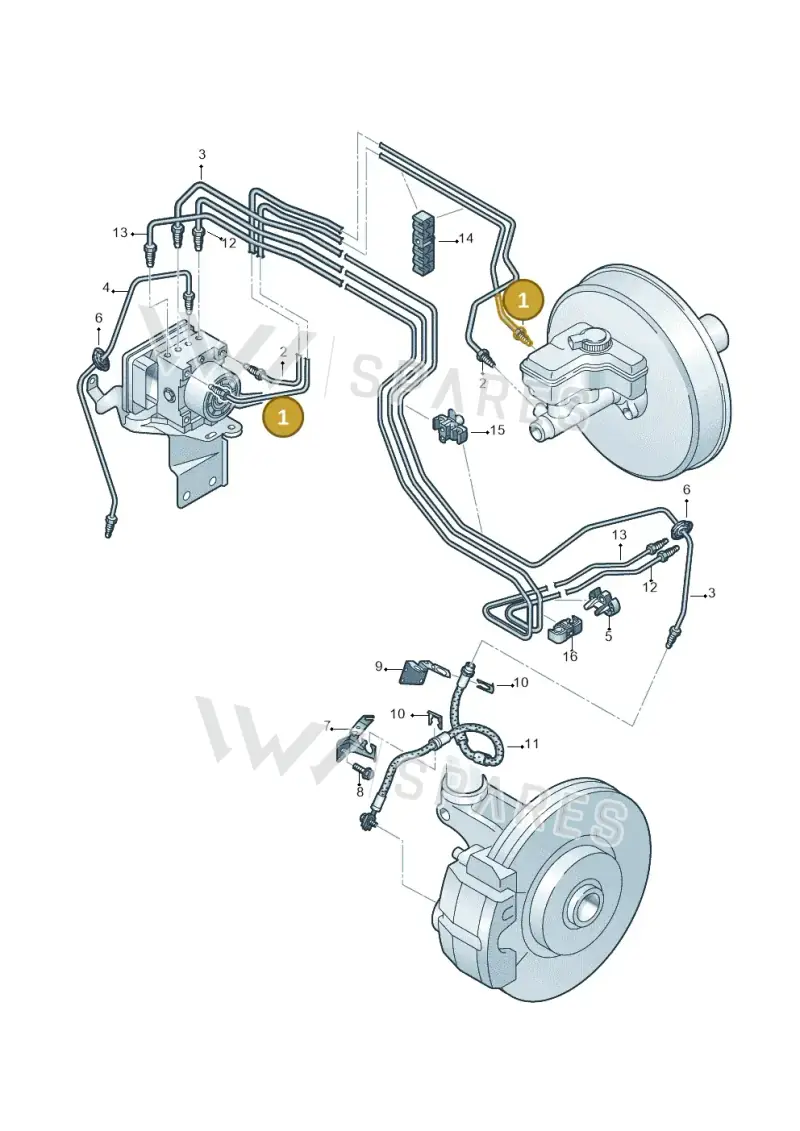

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Hose, part number 3Q1614739A. This brake hose is essential for transferring brake fluid from the master cylinder to the hydraulic system. It is identified as item 1 in the diagram. The hose measures 0.73 meters in length. Genuine OEM brake hoses are designed for optimal durability and performance, crucial for maintaining the safety and efficiency of the braking system.
Catalogue entry: BRAKE PIPE.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 73 × 21 × 6 cm
- Shipping weight
- 0.13 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TS3
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesBrake Pipe — locate 3Q1614739A Volkswagen Brake Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Brake Pipe 3Q1614739
- 1Brake Pipe 5Q1614739F
- 2Brake Pipe 3Q1614740
- 2Brake Pipe 3Q1614740A
- 2Brake Pipe 5Q1614740C
- 3Brake Pipe 3Q1614723
- 3Brake Pipe 5Q1614723D
- 4Brake Pipe 3Q1614724
- 4Brake Pipe 5Q1614724A
- 6Grommet 1K0611751
- 7RetainerRight5Q0611842B
- 7RetainerLeft5Q0611841A
- 8Screw N10703001
- 9RetainerRight5Q0611846B
- 9RetainerLeft5Q0611845B
- 10Bracket 191611715
- 11Brake Hose 5Q0611701C
- 11Brake Hose 5WA611701
- 12Brake Pipe 5Q1614725AB
- 13Brake Pipe 3Q1614726C
- 13Brake Pipe 5Q1614726S
- 13Brake Pipe 5WB614725A
- 14Bracket 5Q0611797A
- 15Bracket 5Q0611797E
- 16Clip 6R0611797D
- 17Sleeve 1J0611853
- 18Bracket 1K0611853
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Formentor TSI CUPRA | 2020- | 1 | 1 | D | |
| Audi A3 Sportback | 2019-2021 | 1 | 1 | FN1 | |
| Arteon | 2017-2023 | 1 | 1 | TS3 | |
| Passat saloon | 2014-2024 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
3Q1614739A Volkswagen Brake Hose | Genuine OEM is fitted on: Formentor TSI CUPRA 2020-; Audi A3 Sportback 2019-2021; Arteon 2017-2023; Passat saloon 2014-2024.
