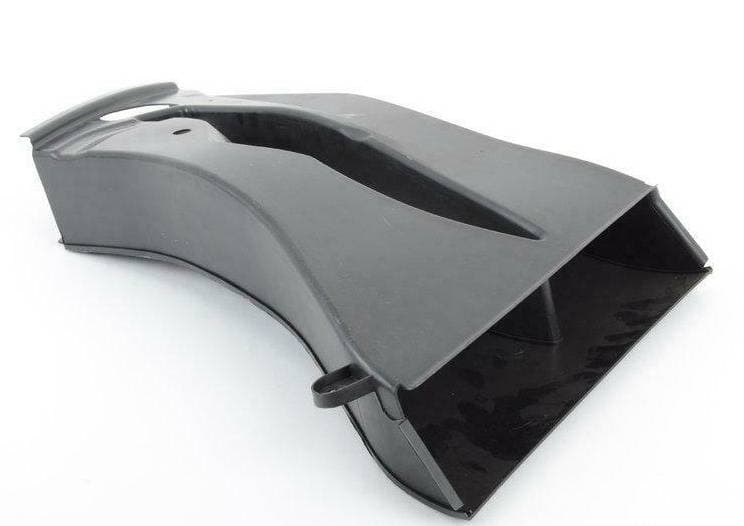

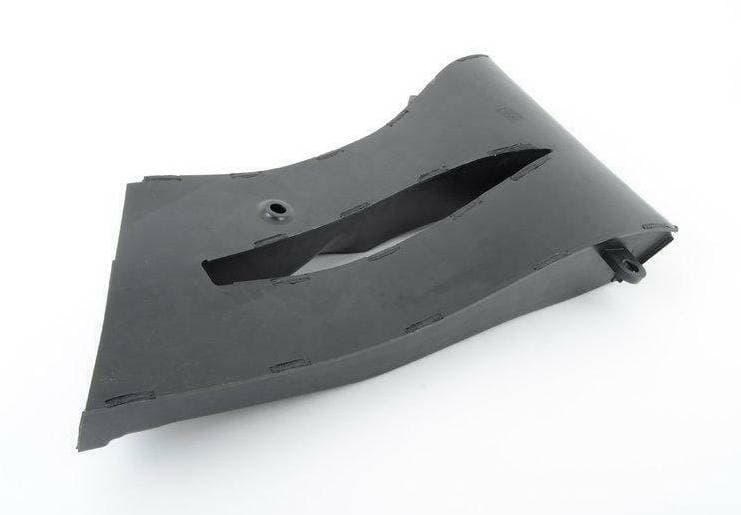

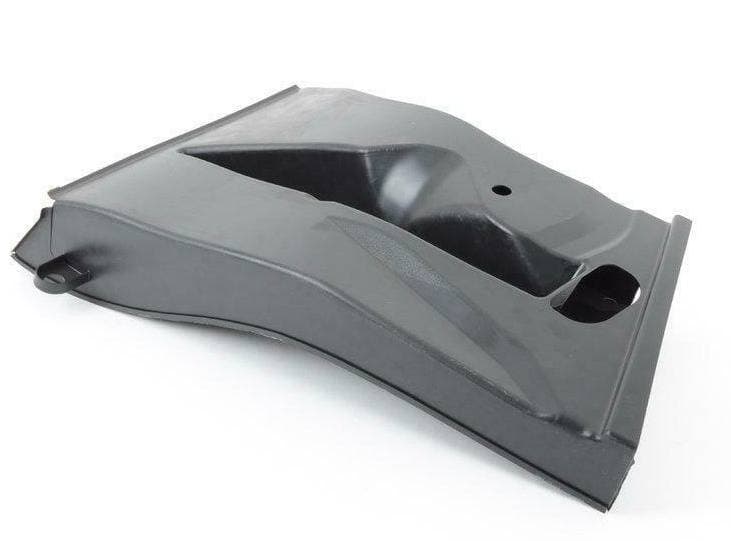

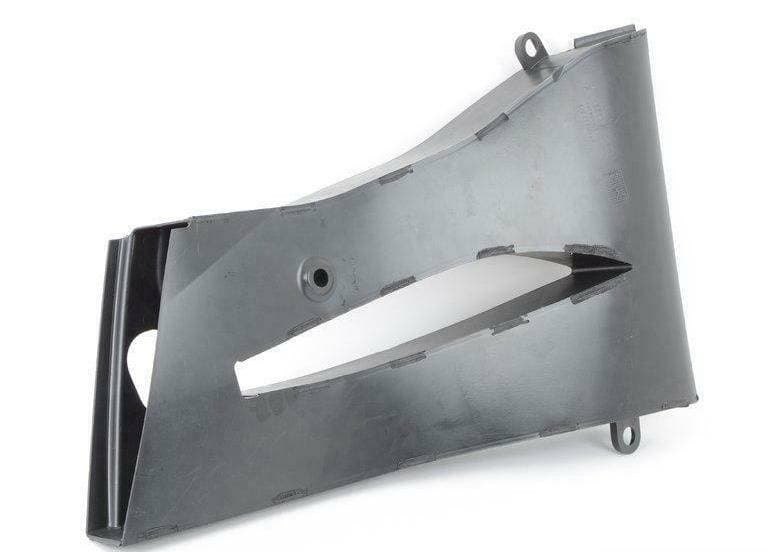

Genuine OEM Audi Oil Cooler Air Guide, part number 420117336A. This molded plastic component is designed to precisely direct ambient airflow to the vehicle's oil cooler, ensuring optimal heat dissipation and maintaining engine oil temperature within specified limits. It measures approximately 59.5 cm long, 41.5 cm wide, and 9 cm high, and weighs 0.891 kg. Using a genuine OEM air guide guarantees the correct aerodynamic shape and mounting points for efficient cooling and proper fitment within the engine bay.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 59.5 × 41.5 × 9 cm
- Shipping weight
- 0.89 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesAir Guide — locate 420117336A Audi Oil Cooler Air Guide | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Oil Pump 07L115009AG
- 1Oil Pump 07L115009AE
- 2Clutch 07L115138H
- 3Thermostat 420115201
- 4Hose 420115223C
- 5Bracket 07L115318G
- 6Bracket 07L115318H
- 7Heat Sh 420115339D
- 8Container 420115373C
- 9Oil Pipe 420115203
- 10Bracket 07L115401F
- 10Bracket 07L115401E
- 11Cover 079115433D
- 11Cover 079115433A
- 12Seal Ring WHT003732
- 13Pipe 07L115467B
- 14Strainer 07L103081
- 15Oil Dipsti 420115607D
- 16Sleeve N91020803
- 17Hose 420115689AA
- 18Hose 420115687Q
- 19Sleeve 045115143
- 20Bolt N10700201
- 21Oil Cooler 427117015
- 21Oil Cooler 420117015A
- 22Oil Cooler 07L117021H
- 23Screw N0160243
- 24Bracket 420117185A
- 25Seal Ring N0138115
- 26Air Guide 427117335
- 26Air Guide 420117335A
- 27Air Guide 427117336
- 28Air Guide 420117339
- 29Air Guide 420117340
- 31Hose 420117413L
- 32Seal 079103121BE
- 35Cover 07L103707B
- 40Grommet 8Z0129669A
- 41Bush 1K0129734B
- 43Filterelem 079198405E
- 44Screw N10347003
- 45Seal Ring N0138063
- 46Seal Ring N0138157
- 47Bolt N10124306
- 48Bolt N10405604
- 49Bolt N10622101
- 50Bolt N10451408
- 52Seal Ring N10538201
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi R8 qu. 5.2 | 2012-2015 | 27, 23 | 1 | PR:K8C |
| Audi R8 08> | 2007- | 27, 23 | 1 | COUPE |
Diagrams & fitment data powered by oemdiagrams.com
420117336A Audi Oil Cooler Air Guide | Engine Cooling is fitted on: Audi R8 qu. 5.2 2012-2015; Audi R8 08> 2007-.
