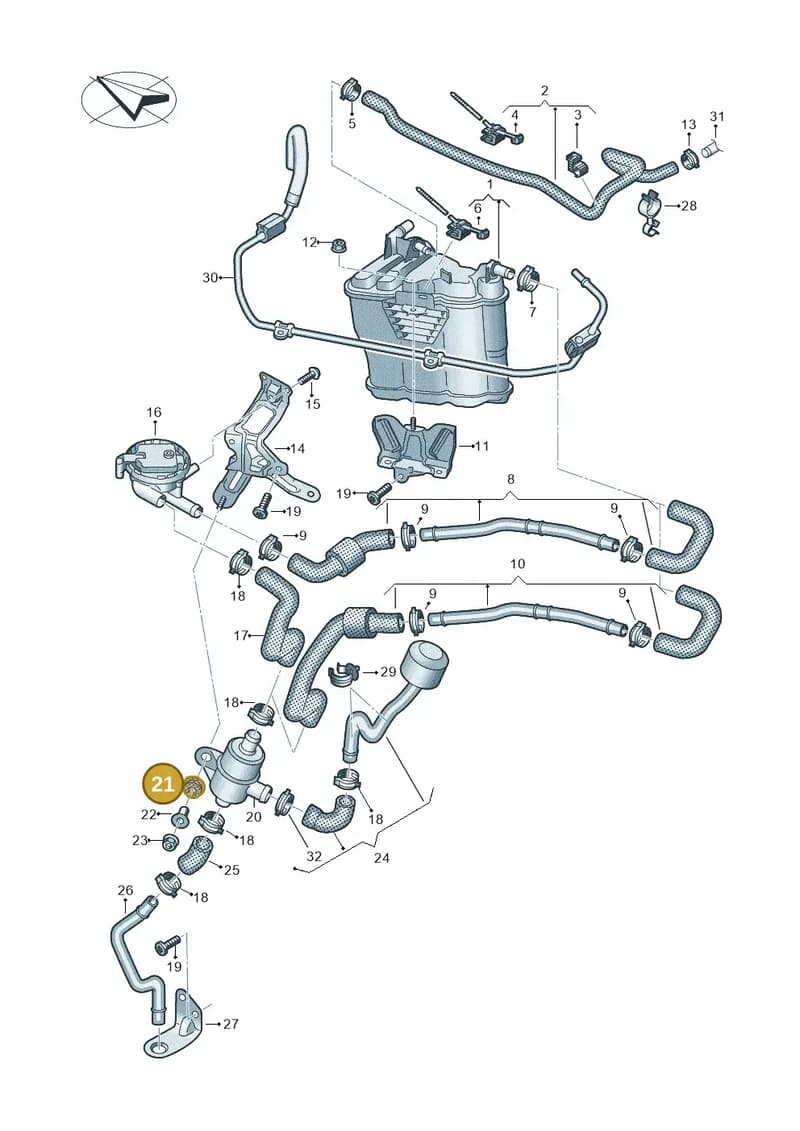

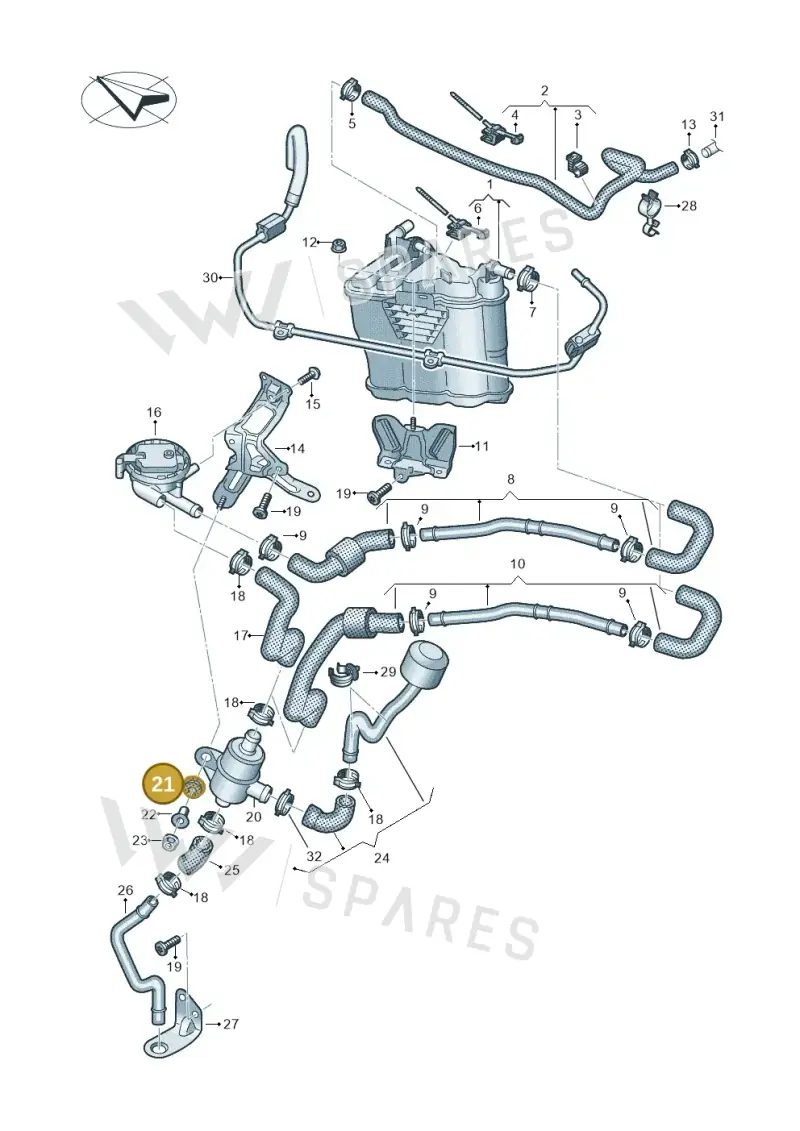

Number 21 marks the part’s position in this exploded view (Audi R8 Spyder (2015-2024)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Grommet, part number 431129669. Fits Audi R8 Spyder (2015-2024), Audi A8 (2013-2018). Shown as position 21 in the fuel, exhaust and cooling diagram 872201800.
Catalogue entry: GROMMET.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 872201800, position 21
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
108 vehiclesGrommet — locate 431129669 Audi Grommet in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Container 4S0201797A
- 1Container 4S0201797B
- 1Container 4S0201797C
- 1Container 4S0201797
- 2Hose 4S0133352B
- 3Clip 1C0422705B
- 4Binder 5M0971838
- 5Clamp N90926401
- 7Clamp N90686902
- 8Hose 4S0201384C
- 8Hose 4S0201384E
- 10Hose 4S0201384D
- 10Hose 4S0201384F
- 11Bracket 4S0201187E
- 12Ut Hexagon Flange Nut Self-locking Hexagon N91205301
- 13Clamp N90986501
- 14Bracket 4S0201369E
- 15Screw N90985501
- 16Switch 8K0906253N
- 16Switch 8K0906253L
- 17Hose 4S0906272B
- 18Clamp 4B0422379A
- 19Bolt N10124306
- 20Valve 4S0201752
- 22Bush 1K0129734B
- 23Collar Nut N01508210
- 24Hose 4S0201411F
- 25Line 4S0201389C
- 26Line 4S0201411G
- 26Line 4S0201411A
- 27Bracket 4S0201171
- 28Bracket 059131694AQ
- 29Bracket N10649101
- 32Clamp N90687001
Vehicle fitment table111
