431260749A O-Ring
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

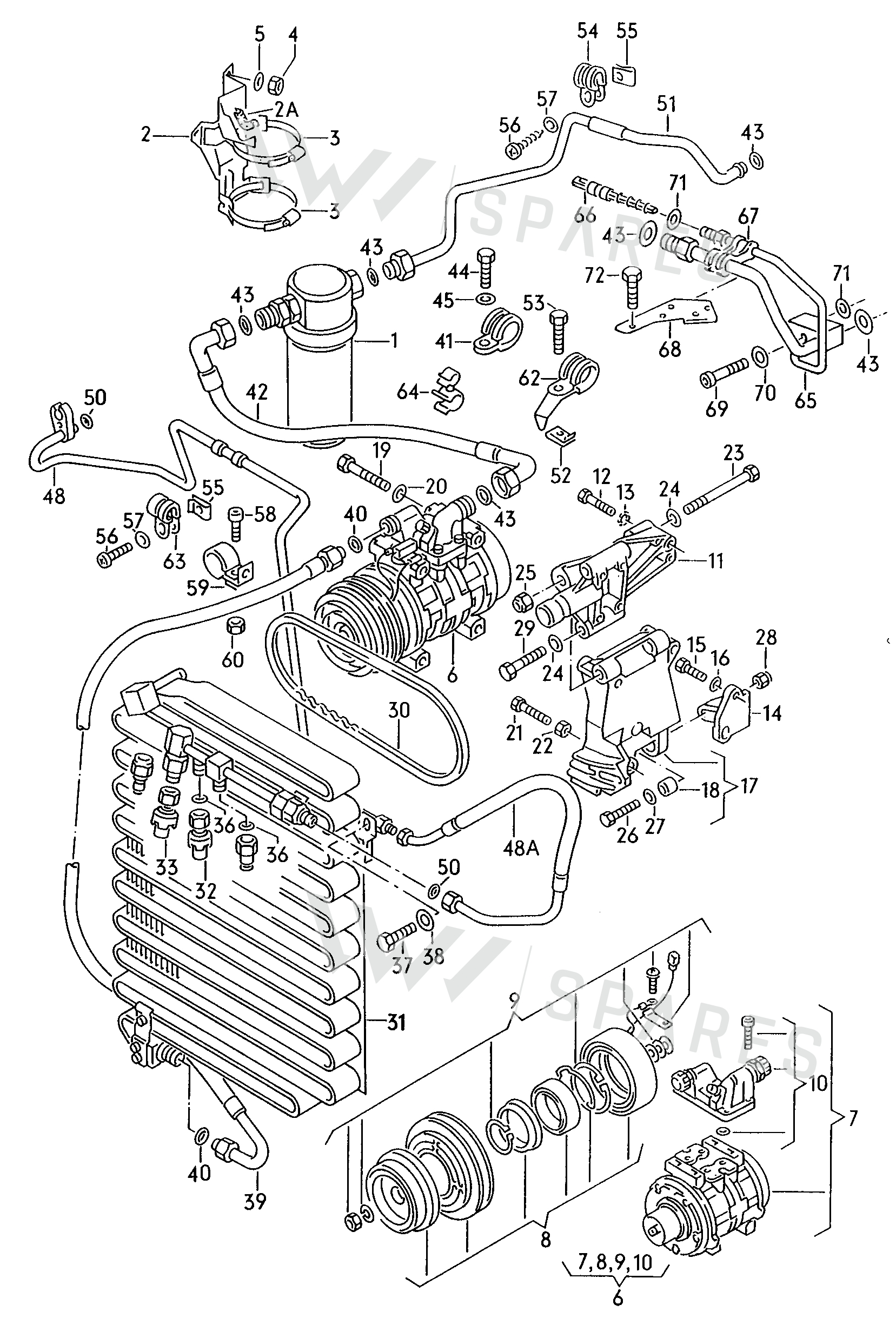

38 vehiclesO-ring — locate O-Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Drier 443271161A
- 2Bracket 893820195
- 2Bracket 893820197
- 2APart N0203011
- 3Clamp N0245083
- 4Ut Hexagon Nut Self-locking Hexagon Nut N0230026
- 5Washer N01152423
- 7Compressor 034260805D
- 8Clutch 034260811
- 9Fixing Set 034298012
- 10Union 034298013B
- 11Bracket 054260899
- 11Bracket 034260899
- 12Bolt N01036112
- 13Washer N0122293
- 14R Bracket 034260853B
- 15Bolt N01024118
- 16Washer N01166615
- 17Bracket 034260901
- 18Bush 068903147E
- 19Bolt N0103914
- 20Washer N01152520
- 21Bolt N0102741
- 22Part N01100830
- 23Bolt N0104951
- 24Washer N01152711
- 25Collar Nut N0230047
- 26Bolt N01034510
- 27Washer N0154013
- 28Locknut N0126081
- 29Bolt N90130001
- 30V-belt 034260849
- 31Capacitor 893260403L
- 32Switch 443959482B
- 33Switch 893959482A
- 37Bolt N01021527
- 39Hose 893260701D
- 40Seal Ring 803260749B
- 41Clamp N0206901
- 42Hose 893260707A
- 43Seal Ring 803260749C
- 44Bolt N0102706
- 45Washer N90033301
- 48Pipe 893260709M
- 48APipe 893260709N
- 50Seal Ring 803260749
- 51Hose 893260740
- 52Speed Nut N90031701
Vehicle fitment table38
Europe (34)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Cabrio. | 1993-1998 | 36, 14 | X |
| Audi 90 qu. | 1992-1994 | 11 | X |
| Audi 100/Wagon qu. | 1992-1994 | 9 | 1 |
| Audi 90 93 | 1992-1993 | 11, 14 | X |
| Audi 100/Wagon 93 | 1992-1993 | 9 | 1 |
| Audi 100/Wagon 92 | 1991-1992 | 9 | 1 |
| Audi 100/Wagon qu. 92 | 1991-1992 | 9 | 1 |
| Audi V8 | 1989-1993 | 9, 2 | 1 |
| Audi 80/90 | 1989-1991 | 36, 10 | X |
| Audi Coupe qu. | 1989-1991 | 11 | X |
| Jetta | 1989-1991 | 20A | 1 |
| Audi 100/Wagon | 1989-1990 | 19, 3 | 2 |
| AUDI COUPE/3 | 1988-1994 | 10 | X |
| Audi 200 Turbo | 1988-1990 | 21, 1 | 2 |
| Audi 100/Wagon qu. | 1988-1990 | 7, 3 | 1 |
| Audi 200T/Wagon qu. | 1988-1990 | 21, 1 | 2 |
| Audi 100/Wagon 89 | 1988-1989 | 7, 3 | 1 |
| Jetta 89 | 1988-1989 | 20A | 1 |
| GOLF,JETTA (MEX) | 1987-1992 | 41 | 1 |
| Audi 80/90 qu. | 1987-1991 | 10, 36 | X |
| Audi 80/90 | 1987-1989 | 36, 10 | X |
| Audi 5000 S/Wagon qu. | 1987-1988 | 7, 3 | 1 |
| Jetta 88 | 1987-1988 | 20A | 1 |
| Audi 5000 S/Wagon | 1986-1988 | 7, 3 | 1 |
| Jetta 87 | 1986-1987 | 20A | 1 |
| Golf/Jetta syn, Rallye | 1985-1991 | 20A | 1 |
| Jetta 86 | 1985-1986 | 20A | 1 |
| Audi 5000 Turbo | 1984-1988 | 7, 1 | 1 |
| Audi 5000/Wagon qu. | 1984-1988 | 7, 1 | 1 |
| Audi 5000 S/Wagon | 1984-1986 | 7, 3 | 1 |
| Jetta 85 | 1984-1985 | 20A | 1 |
| Audi 5000 S/Wagon 84 | 1983-1984 | 21, 3 | 1 |
| Audi 5000 | 1981-1982 | 48 | 2 |
| Audi 5000 Turbo | 1979-1982 | 31, 16 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI 200 CHINA | 1995-1999 | 26A | 2 |
| JETTA (FAW) 91> | 1991- | 20A | 1 |
| AUDI 100 (CHINA) | 1988-1995 | 7 | 1 |
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 20A | 1 |
Diagrams & fitment data powered by oemdiagrams.com
O-Ring is fitted on: Audi Cabrio. 1993-1998; Audi 90 qu. 1992-1994; Audi 100/Wagon qu. 1992-1994; Audi 90 93 1992-1993; Audi 100/Wagon 93 1992-1993; Audi 100/Wagon 92 1991-1992; Audi 100/Wagon qu. 92 1991-1992; Audi V8 1989-1993; Audi 80/90 1989-1991; Audi Coupe qu. 1989-1991; Jetta 1989-1991; Audi 100/Wagon 1989-1990; AUDI COUPE/3 1988-1994; Audi 200 Turbo 1988-1990; Audi 100/Wagon qu. 1988-1990; Audi 200T/Wagon qu. 1988-1990; Audi 100/Wagon 89 1988-1989; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Audi 80/90 qu. 1987-1991; Audi 80/90 1987-1989; Audi 5000 S/Wagon qu. 1987-1988; Jetta 88 1987-1988; Audi 5000 S/Wagon 1986-1988; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Audi 5000 Turbo 1984-1988; Audi 5000/Wagon qu. 1984-1988; Audi 5000 S/Wagon 1984-1986; Jetta 85 1984-1985; Audi 5000 S/Wagon 84 1983-1984; Audi 5000 1981-1982; Audi 5000 Turbo 1979-1982; AUDI 200 CHINA 1995-1999; JETTA (FAW) 91> 1991-; AUDI 100 (CHINA) 1988-1995; Golf/Jetta "USA","MEX"89>92 1988-1992.
