431819399 Grommet
- 431819399This pageNot stocked
Jun 1998 - 4D0971911Discontinued
Apr 2013
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

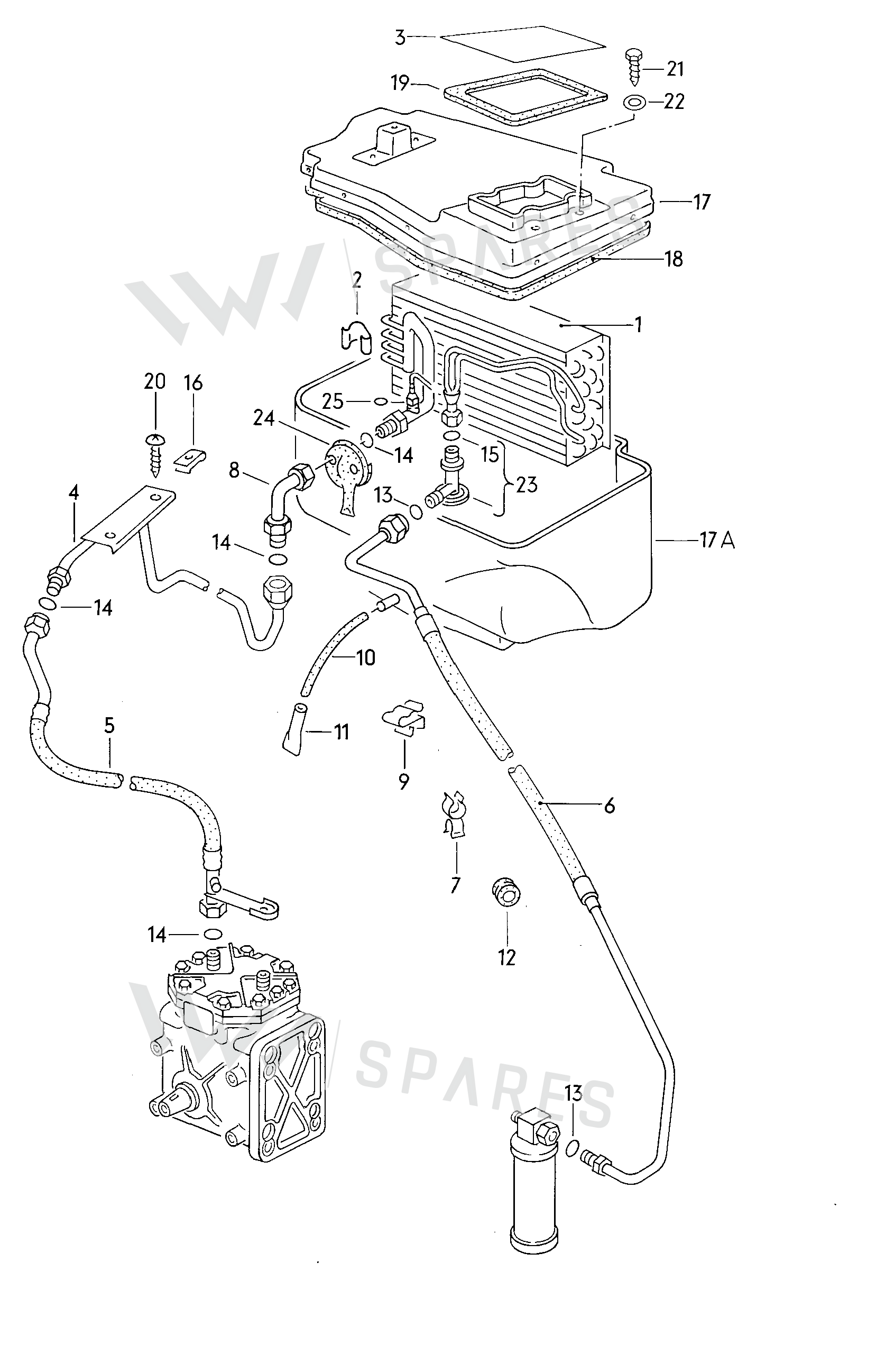

2 vehiclesGrommet — locate Grommet in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Evaporator 812271105
- 2Clip 321271053
- 3Filterelem 812260185
- 4Pipe 856260707
- 5Hose 855260707H
- 6Hose 856260709A
- 6Hose 856260709
- 7Retainer 431819595
- 8Pipe 856260740
- 9Clip 861971848A
- 11Valve 893260155
- 12Grommet 4D0971911
- 13Seal Ring 803260749
- 14Seal Ring 803260749B
- 15Seal Ring 803260749A
- 16Part N0154581
- 17Housing 812271121
- 17AHousing 812271123
- 19Seal 321819017
- 20Screw N0139755
- 21Screw N0138882
- 22Washer N01166615
- 23Expans Val 843820679
- 24Grommet 855820119
- 25Seal Ring 803260749D
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Coupe | 1981-1987 | 12 | 1 |
| ILTIS | 5 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Grommet is fitted on: Audi Coupe 1981-1987; ILTIS.
