481201647 Underlay
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

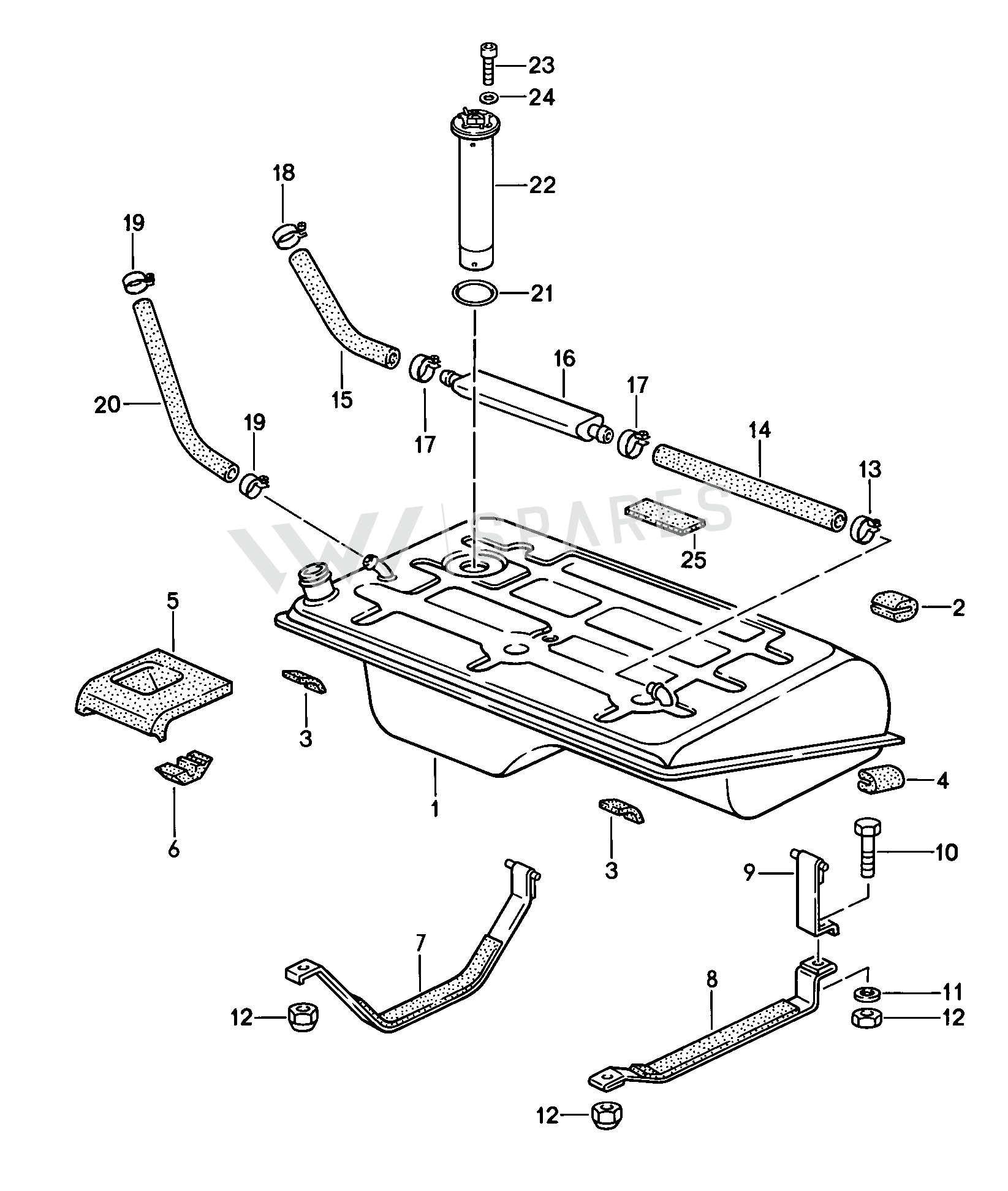

16 vehiclesUnderlay — locate Underlay in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Container 477201021F
- 2Intermed 94420164700
- 3Packing 477201295B
- 5Seal 477863160A
- 6Soundproof 477863162A
- 7Strap 477201302
- 8Strap 477201311B
- 9Strap 477201395
- 10Bolt N01024718
- 10Bolt N0102477
- 11Washer 90002500702
- 11Washer 90002500703
- 12Ut Hexagon Nut Self-locking Hexagon Nut 90008400402
- 12Part 90008400403
- 13Clamp N0235653
- 16Tank 477201035
- 17Clamp 99951255400
- 18Clamp N0241252
- 19Clamp N0235702
- 21Seal Ring 477919133
- 22Sender 477919051B
- 23Screw 90006713701
- 23Screw N0447341
- 24Seal Ring N0138021
Vehicle fitment table16
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| S Coupe | 1985-1988 | 4 | 2 |
| Scirocco | 1983-1989 | 34A | 2 |
| 944 Coupe | 1981-1985 | 40 | 2 |
| Jetta | 1981-1984 | 34A | 2 |
| Scirocco | 1981-1983 | 34A | 2 |
| Scirocco | 1981-1981 | 34A | 2 |
| Jetta 81 | 1980-1981 | 34A | 2 |
| Scirocco | 1980-1981 | 34A | 2 |
| 924 S | 1979-1985 | 39 | 2 |
| Scirocco | 1974-1976 | 41 | 2 |
| K 70 | 1970-1975 | 21 | 2 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Rabbit Conv./Cabrio | 1983-1993 | 34A | 2 |
| Rabbit Conv. | 1981-1983 | 34A | 2 |
| Rabbit Conv. 81 | 1980-1981 | 34A | 2 |
| Rabbit | 1974-1976 | 41 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 477 platform | 29 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Underlay is fitted on: S Coupe 1985-1988; Scirocco 1983-1989; 944 Coupe 1981-1985; Jetta 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; Jetta 81 1980-1981; Scirocco 1980-1981; 924 S 1979-1985; Scirocco 1974-1976; K 70 1970-1975; Rabbit Conv./Cabrio 1983-1993; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit 1974-1976; 477 platform.
