About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

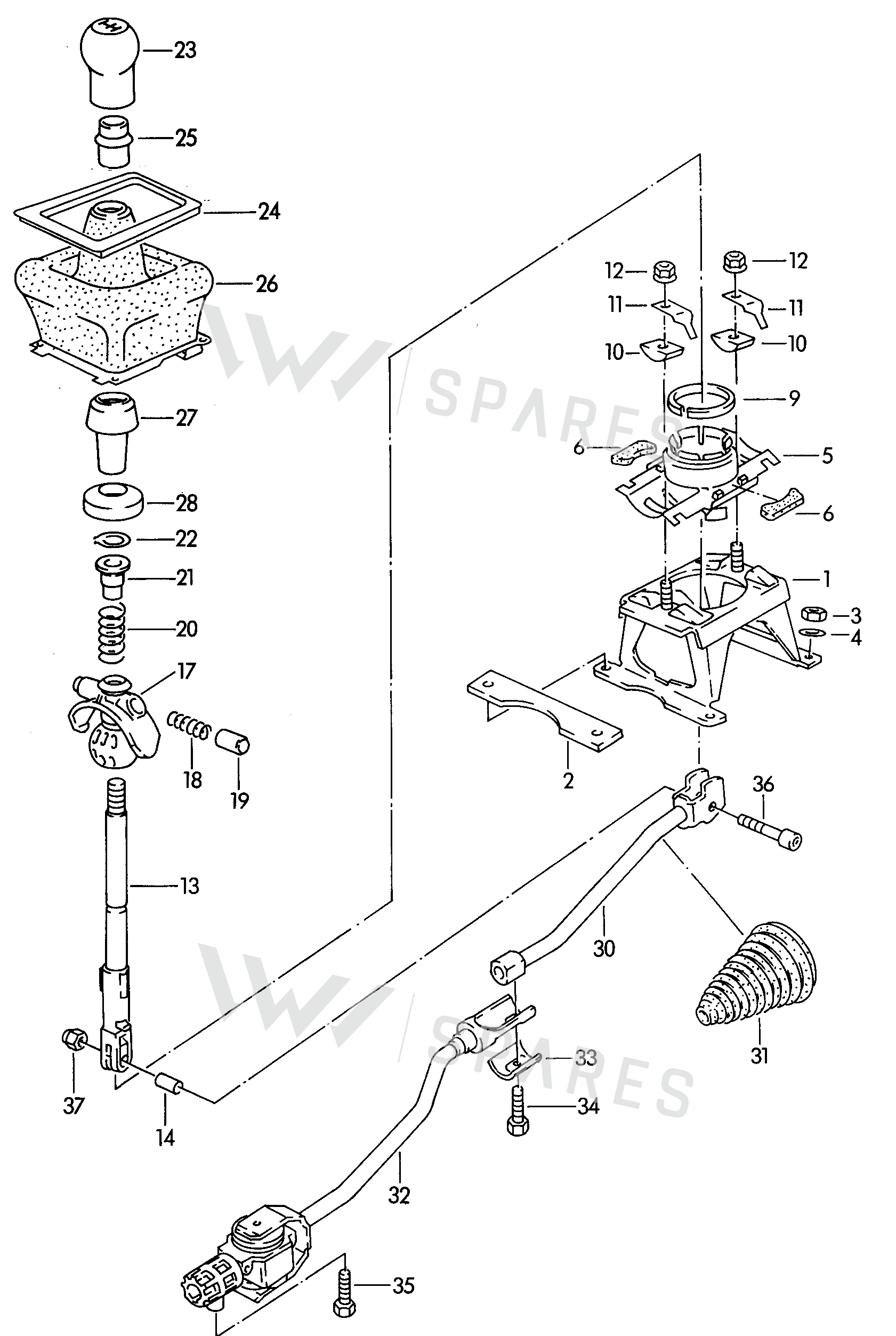

2 vehiclesHexagon Head Bolt 'order Unit 10' — locate Hexagon Head Bolt 'Order Unit 10' in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Housing 4A0711105
- 5Housing 893711334B
- 6Buffer 893711133B
- 9Ring 893711511A
- 10Connector Piece 8D0711420
- 12Collar Nut N01508311
- 13Lever 893711117D
- 14Pipe 823711263C
- 17Ball Joint 893711118E
- 18Press Spring 893711198B
- 19Bush 893711191
- 20Press Spring 8D0711197
- 21Bush 443711217A
- 22Ring N0124121
- 23Knob 4D0711141A
- 25Bush 447711183
- 27Bush 893711184C
- 30Shaft 4D0711265A
- 31Cover 4D0711167A
- 32Shaft 4A0711613D
- 33Clamp 893711237B
- 34Bolt N01024223
- 35Bolt N90123902
- 36Screw N0147591
- 37Ut Hexagon Nut Self-locking Hexagon Nut N01118312
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 | 1996-1998 | 35 | 1 |
| Audi A8 qu. | 1996-1998 | 35 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt 'Order Unit 10' is fitted on: Audi A8 1996-1998; Audi A8 qu. 1996-1998.
