4D0098020AL Hexagon Head Bolt 'Order Unit 10'
- 4D0098020ALThis pageNot stocked
Jan 1998 - N90652901Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

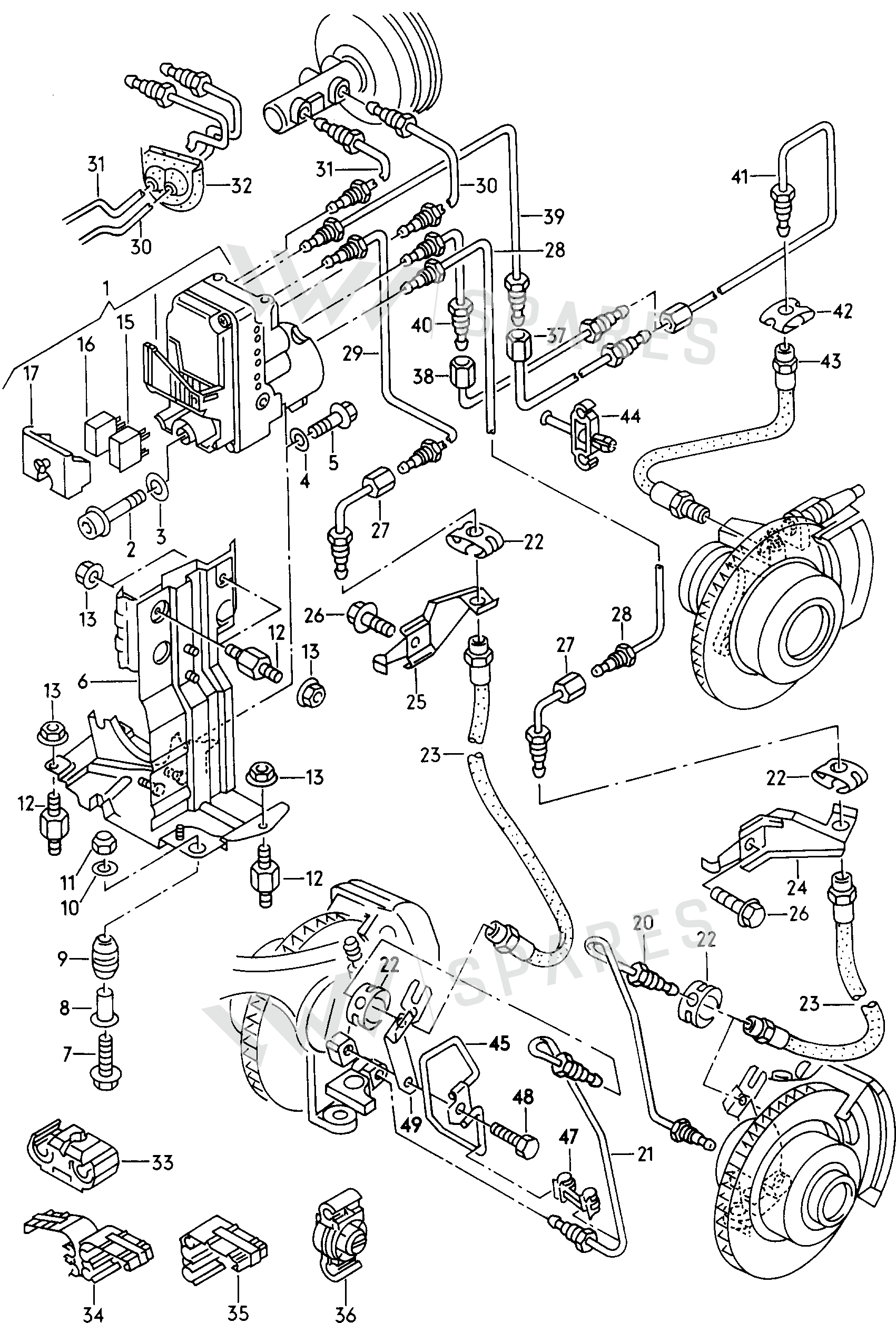

3 vehiclesHexagon Head Bolt 'order Unit 10' — locate Hexagon Head Bolt 'Order Unit 10' in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Absunit 4A0614111H
- 2Screw N10706601
- 3Washer N90179102
- 4Washer N01152423
- 5Bolt N01021527
- 6Bracket 4D0614119G
- 7Bolt N90652901
- 8Bush 4D0614173
- 9Buffer 4D0614177A
- 10Washer N90467601
- 11Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 12Buffer 4D0614177B
- 13Collar Nut N90175203
- 15Relay 4A0927841
- 16Relay 4D0927843
- 20Brake LineLeft4D0611721B
- 21Brake LineRight4D0611722B
- 22Spring 4D0611715B
- 23Brake Hose 4D0611707F
- 24RetainerLeft4D0611845D
- 25RetainerRight4D0611846C
- 26Bolt N10005204
- 27Brake PipeRight4D0611727
- 27Brake PipeLeft4D0614723J
- 27Brake PipeRight4D0614724D
- 30Brake Pipe 4D1614706G
- 30Brake Pipe 4D2614706E
- 31Brake Pipe 4D2614705E
- 31Brake Pipe 4D1614705C
- 32Grommet 4D0614769A
- 33Bracket 811611797
- 34Bracket 8A0614853
- 35Bracket 1H0611797
- 36Bracket 4D0611797G
- 36Bracket 4D0611797C
- 37Brake Pipe 4D0611741C
- 37Brake Pipe 4D0611741F
- 38Brake Pipe 4D0611742F
- 39Brake Pipe 4D0614725H
- 39Brake Pipe 4D0614725E
- 40Brake Pipe 4D0614726E
- 41Brake PipeLeft4D0611745B
- 41Brake PipeRight4D0611746B
- 43Brake Hose 4D0611775B
- 43Brake Hose 4D0611775C
- 44Bracket 4D0611797H
- 45PartLeft4D0611749
- 45PartRight4D0611750
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 | 1996-1998 | 7 | 2 |
| Audi A8 qu. | 1996-1998 | 7 | 2 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 7 | X |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt 'Order Unit 10' is fitted on: Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A4 qu. F>8D-W-.. 1995-1997.
