4D0098050C Hexagon Bolt (Combi) 'Order Qty 20'
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

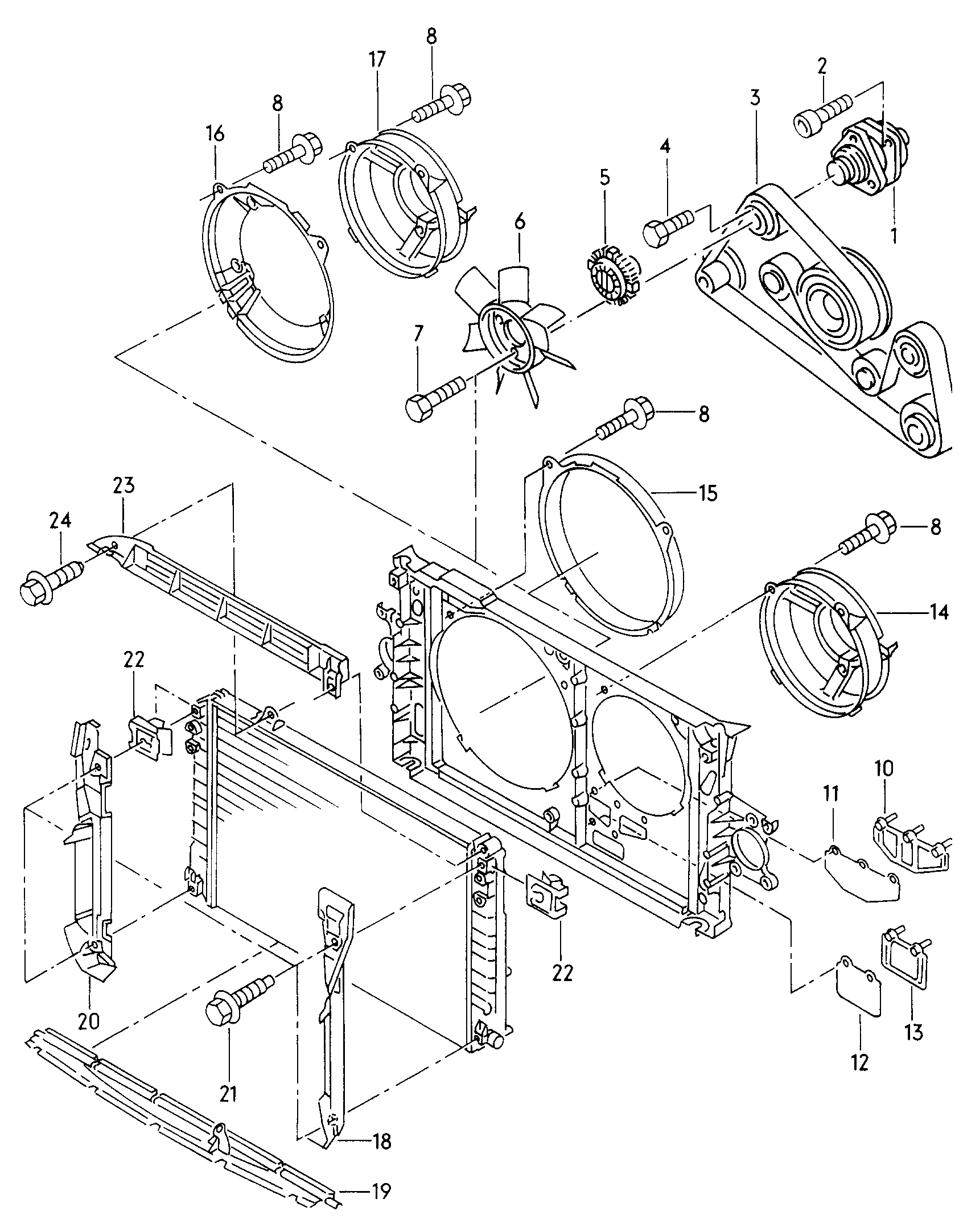

3 vehiclesHexagon Bolt (combi) 'order Qty 20' — locate Hexagon Bolt (Combi) 'Order Qty 20' in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Flanshaft 077121211
- 1Bracket 078121235E
- 1Bracket 078121235G
- 2Screw N0147035
- 2Screw N0447141
- 2Screw N10289801
- 3Pulley 077121031B
- 4Bolt N90529301
- 5Coupling 077121350D
- 5Coupling 078121350A
- 6Fan Wheel 077121301B
- 6Fan Wheel 078121301E
- 7Screw N0147454
- 8Bolt N0902612
- 10Bracket 441121227
- 10Blind 8D0121223
- 11Part 441121225C
- 12Part 4D0121225
- 13Bracket 4D0121227
- 14Fan Ring 441121197D
- 14Fan Ring 4D0121197B
- 15Fan Ring 4D0121197
- 16Air Guide 4D0121291
- 18Air GuideLeft4D0121283A
- 19Air Guide 4D0121333
- 20Air GuideRight4D0121284A
- 21Bolt N90543801
- 22Part N90419002
- 23Air Guide 4D0121343
- 23Air Guide 4D0121343A
- 23Air Guide 4D0121343B
- 24Bolt N10009202
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8 | 1996-1998 | 8, 18, 2, 27, 11, 23 | X |
| Audi A8 qu. | 1996-1998 | 8, 18, 27, 11, 23, 12 | X |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| JETTA (FAW) 91> | 1991- | 28, 21 | X |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt (Combi) 'Order Qty 20' is fitted on: Audi A8 1996-1998; Audi A8 qu. 1996-1998; JETTA (FAW) 91> 1991-.
