Product overview

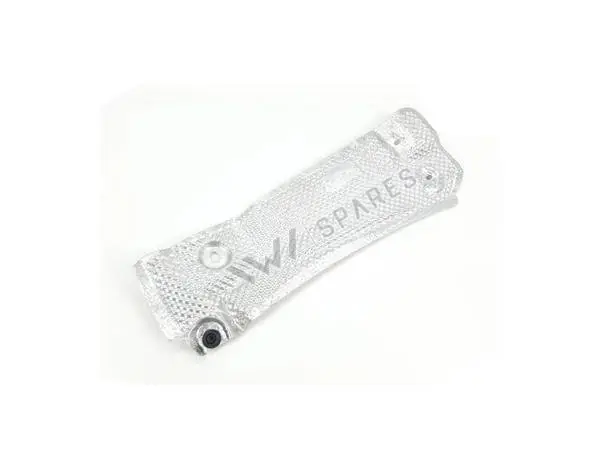

Genuine OEM Audi Right Fuel Tank Heat Shield, part number 4G0201308F. This component is designed to protect the fuel tank from high temperatures generated by the exhaust system or other heat sources, preventing fuel vaporization and potential damage. Positioned on the right side, it ensures critical thermal insulation for the fuel system. Constructed from durable metallic material, it weighs approximately 0.168 kg. Using a genuine OEM heat shield ensures precise fitment and effective thermal insulation, critical for maintaining fuel system safety and performance.
Catalogue entry: HEAT SH. right.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 19 × 8 cm
- Shipping weight
- 0.17 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0F3
- 1A2
- 1E0
- 1E1
- A8S
- GH1
- GH2
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

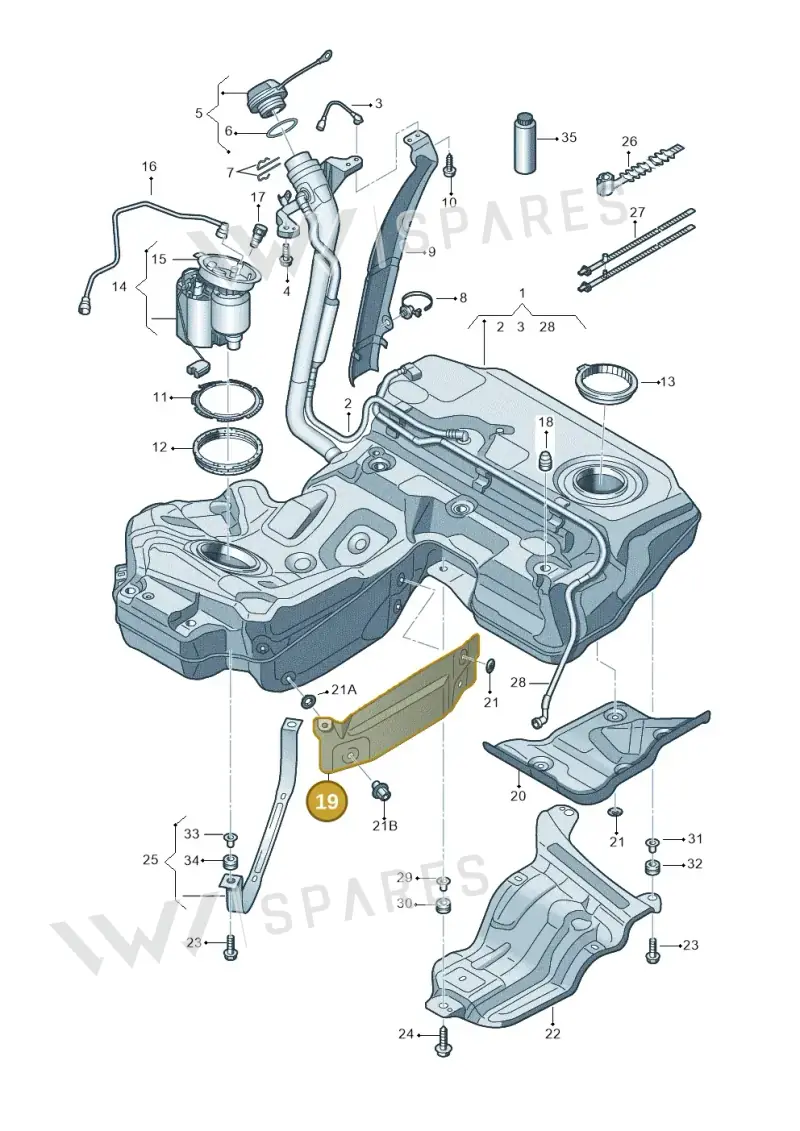

8 vehiclesHeat Shield — locate 4G0201308F Audi Fuel Tank Heat Shield | Right in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 4G8201060AB
- 1Part 4G8201060AE
- 1Tank 4G8201060AG
- 1Part 4G8201060AK
- 1Tank 4G8201060AL
- 1Part 4G8201060BA
- 1Tank 4G8201060BC
- 1Part 4G8201060BF
- 1Tank 4G8201060BG
- 1Tank 4G8201060D
- 1Part 4G8201060N
- 1Part 4G8201060P
- 3Line 4G0201142A
- 4Bolt N90758302
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550D
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550E
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550F
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550H
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550K
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550L
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550M
- 5Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550C
- 6Seal Ring 1K0201557A
- 7Dowel Pin 4G0201398
- 8Part 1J0957818C
- 9Prot Plate 4G0201974A
- 9Prot Plate 4G0201974
- 10Bolt N10622701
- 11Part 1K0201375
- 12Seal Ring 1J0919133B
- 13Flange 4G0201317
- 15Filter 4G0201317A
- 17Part 8R0201263A
- 18Insulation 8K0201274B
- 19Heat Sh 4G0201308
- 20Heat Sh 4G0201308C
- 21Clip 441863987B
- 21Washer N90335004
- 21ASpacer 4G0201532
- 21BAttach 4G0201445
- 22Plate 4G0201781B
- 22Plate 4G0201781C
- 22Plate 4G0201781A
- 23Bolt N91159101
- 24Screw N91165402
- 25Strap 4G0201654B
- 26Cable Tie N90643701
- 27Binder 4A0820199
Compatible / alternative parts(1)
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A7 Sportback | 2014-2018 | 19 | 1 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 19 | 1 | |
| Audi RS6 Avant | 2013-2018 | 19 | 1 | |
| Audi RS7 Sportback | 2013-2018 | 19 | 1 | 1A2 |
| Audi A6 Av. qu. 3.0 | 2012-2018 | 19 | 1 | |
| Audi A7 Sportback | 2010-2015 | 19 | 1 | |
| audi a6 2.0 tdi | 2010-2015 | 19 | 1 | 0F |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| audi a6 1.8 | 2015-2019 | 19 | 1 | 0M5,1A2,1E1,7PA,9M0 |
Diagrams & fitment data powered by oemdiagrams.com
4G0201308F Audi Fuel Tank Heat Shield | Right is fitted on: Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Audi RS6 Avant 2013-2018; Audi RS7 Sportback 2013-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; audi a6 1.8 2015-2019.
