4G0616712L Pipe Hose Line
- 4G0616712KNot stocked
Dec 2012 - 4G0616712LThis pageNot stocked
Apr 2015 - 4G0616712MCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

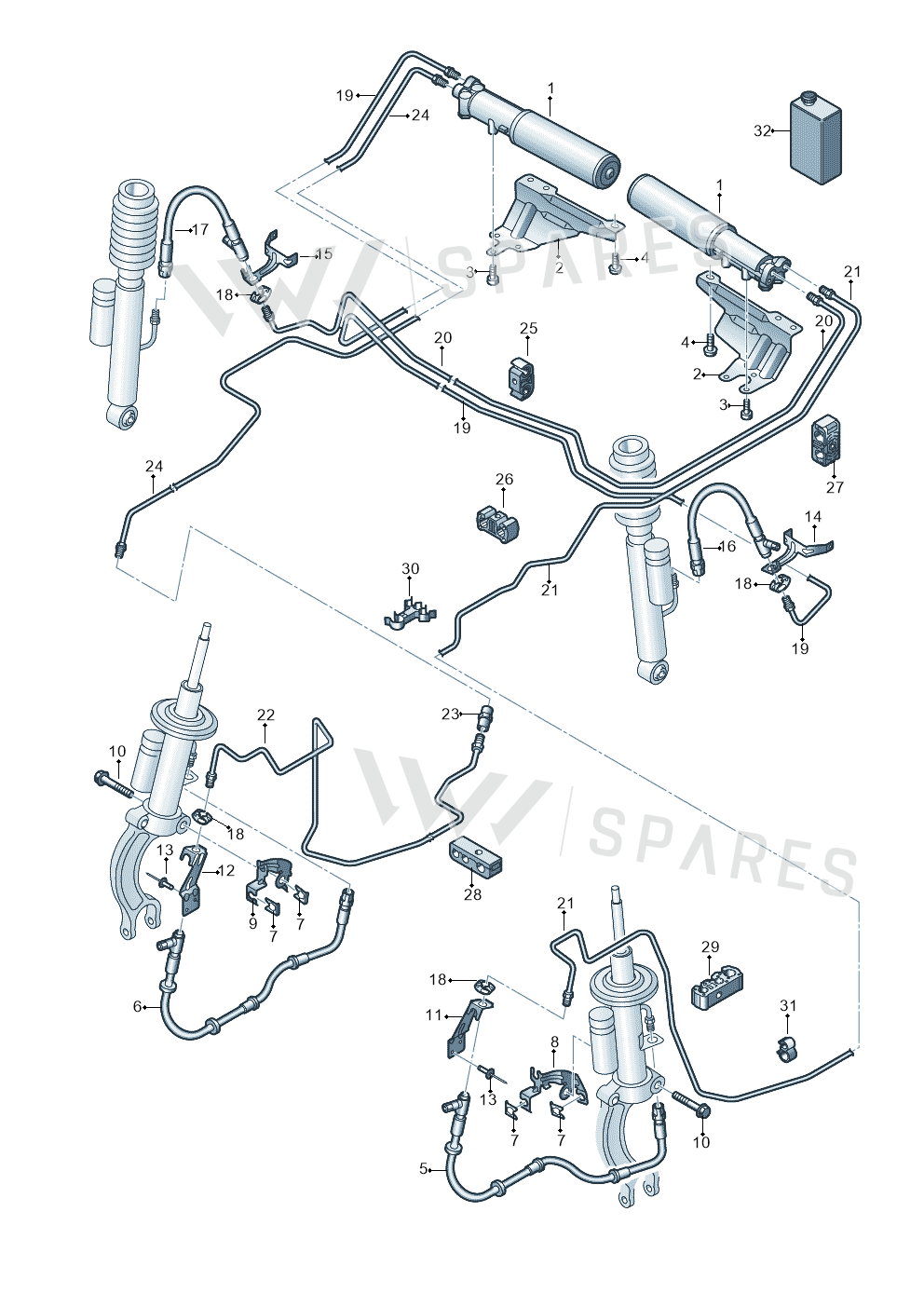

2 vehiclesPipe Hose Line — locate Pipe Hose Line in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly36
- 1Valve 4G0616887
- 2BracketRight4G0616839A
- 2BracketLeft4G0616839
- 3Screw N10610902
- 4Screw N10736701
- 5LineLeft4G0616711M
- 5LineLeft4G0616711L
- 6LineRight4G0616712M
- 7Bracket 191611715
- 8BracketLeft4G0616273B
- 9BracketRight4G0616274B
- 11BracketLeft4G0616273C
- 11BracketLeft4G0616273
- 12BracketRight4G0616274
- 13Pop Rivet N90286604
- 14BracketLeft4G0616275A
- 15BracketRight4G0616276
- 16LineLeft4G0616715F
- 16LineLeft4G0616715E
- 17LineRight4G0616716C
- 17LineRight4G0616716B
- 18Spring 3D0611715C
- 19PipeLeft4G0616861A
- 20PipeRight4G0616862B
- 21PipeLeft4G0616861B
- 22PipeRight4G0616862C
- 23Connector Piece 4G0616868
- 24PipeRight4G0616862A
- 25Bracket 6Q0611797C
- 26Clip 8K0611797D
- 27Clip 8K0201190H
- 28Clip 8E0201190R
- 29Holder 4G0616739A
- 30Holder N10506101
- 31Clip 059131694N
- 32Il Shock Absorber Hydraulic Oil Shock Absorber G052731A2
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS6 Avant | 2013-2018 | 6 | 1 |
| Audi RS7 Sportback | 2013-2018 | 6 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Pipe Hose Line is fitted on: Audi RS6 Avant 2013-2018; Audi RS7 Sportback 2013-2018.
