4G0721477 Pipe Assembly
- 4G0721477This pageNot stocked
Apr 2017 - 8W0721477Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

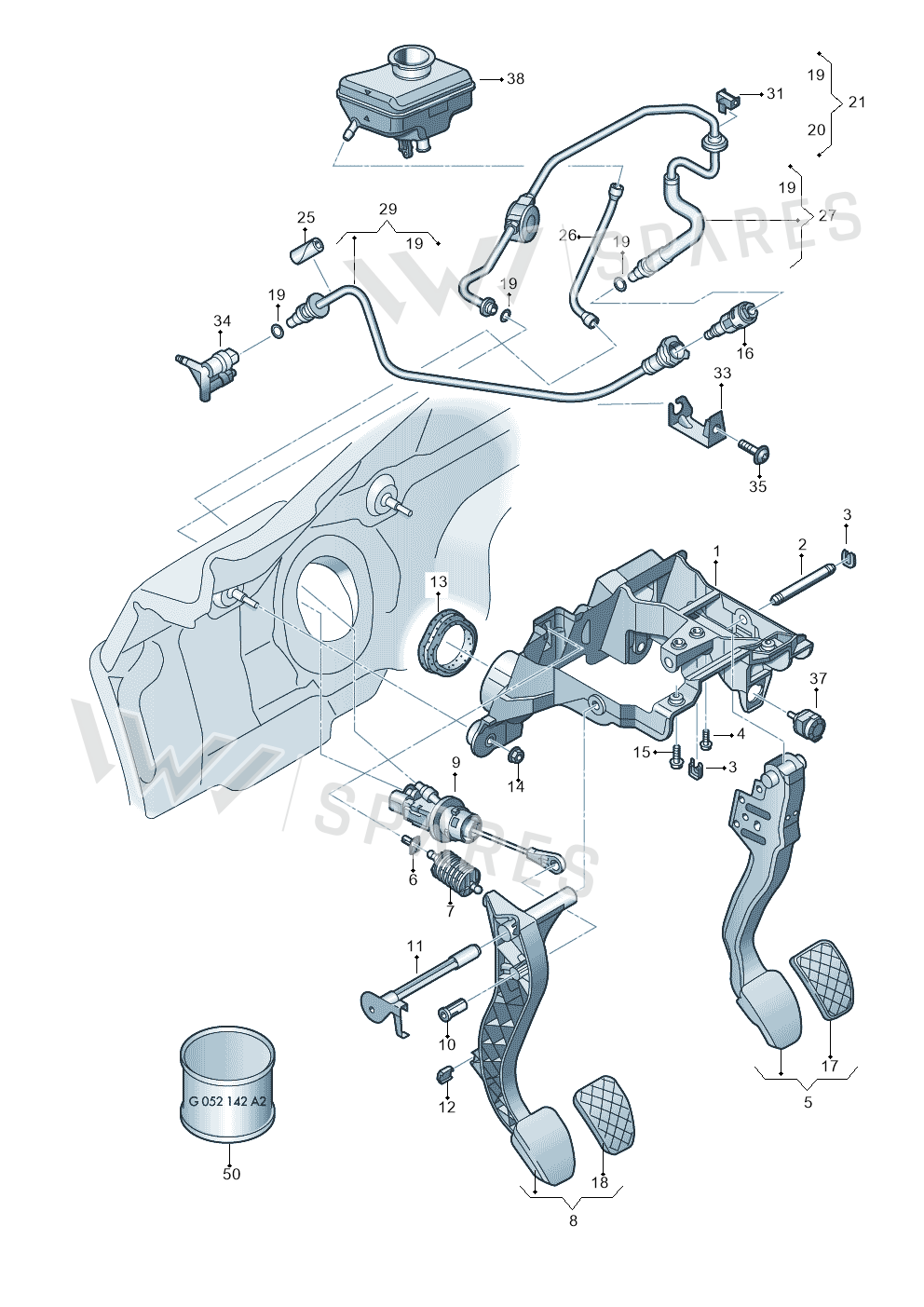

3 vehiclesPipe Assembly — locate Pipe Assembly in the official exploded view and explore the surrounding assembly.
Parts in this assembly35
- 1Bracket 8K1721117
- 2Part 8D1723309A
- 3Ret Washer N90070306
- 4Bolt N10714801
- 5Pedal 8K1721140D
- 5Pedal 8K1721140C
- 6Mounting 8K0721196
- 7Spring 4F0721409
- 7Spring 8E0721403D
- 7Spring 8E0721409C
- 8Foot Pedal 8K1721316C
- 8Foot Pedal 8K1721316B
- 9Master Cylinder 8K1721401H
- 9Master Cylinder 8K1721401G
- 10Part WHT001666
- 11Part 8K1721325
- 12Stop 8K0721331B
- 13Seal 8K0721410
- 14Part N01100636
- 15Bolt WHT003698
- 16Modulator 4G0721435
- 17Part 8K2721173
- 18Part 8K2721173A
- 21Gask Set 1K0798741
- 25Spacer 4G0611853
- 26Hose 6Q1721453B
- 26Hose 6Q1721453C
- 27Line 4G1721465E
- 27Line 4G1721465D
- 29Line 8W0721477
- 31Clip 8K0721350
- 33Bracket 8W0721487
- 33Retaining 4G0721487
- 35Screw N91187301
- 50Lubricant G052142A2
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 qu. 3.0 tdi | 2014-2018 | 29 | 1 | ||
| audi a6 2.0 tdi | 2010-2015 | 29 | 1 | TD1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 1.8 | 2015-2019 | 29 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Pipe Assembly is fitted on: audi a6 qu. 3.0 tdi 2014-2018; audi a6 2.0 tdi 2010-2015; audi a6 1.8 2015-2019.
