4K0121486 Coolant Pipe
- 4K0121486This pageNot stocked
Oct 2023 - 4K0121486HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

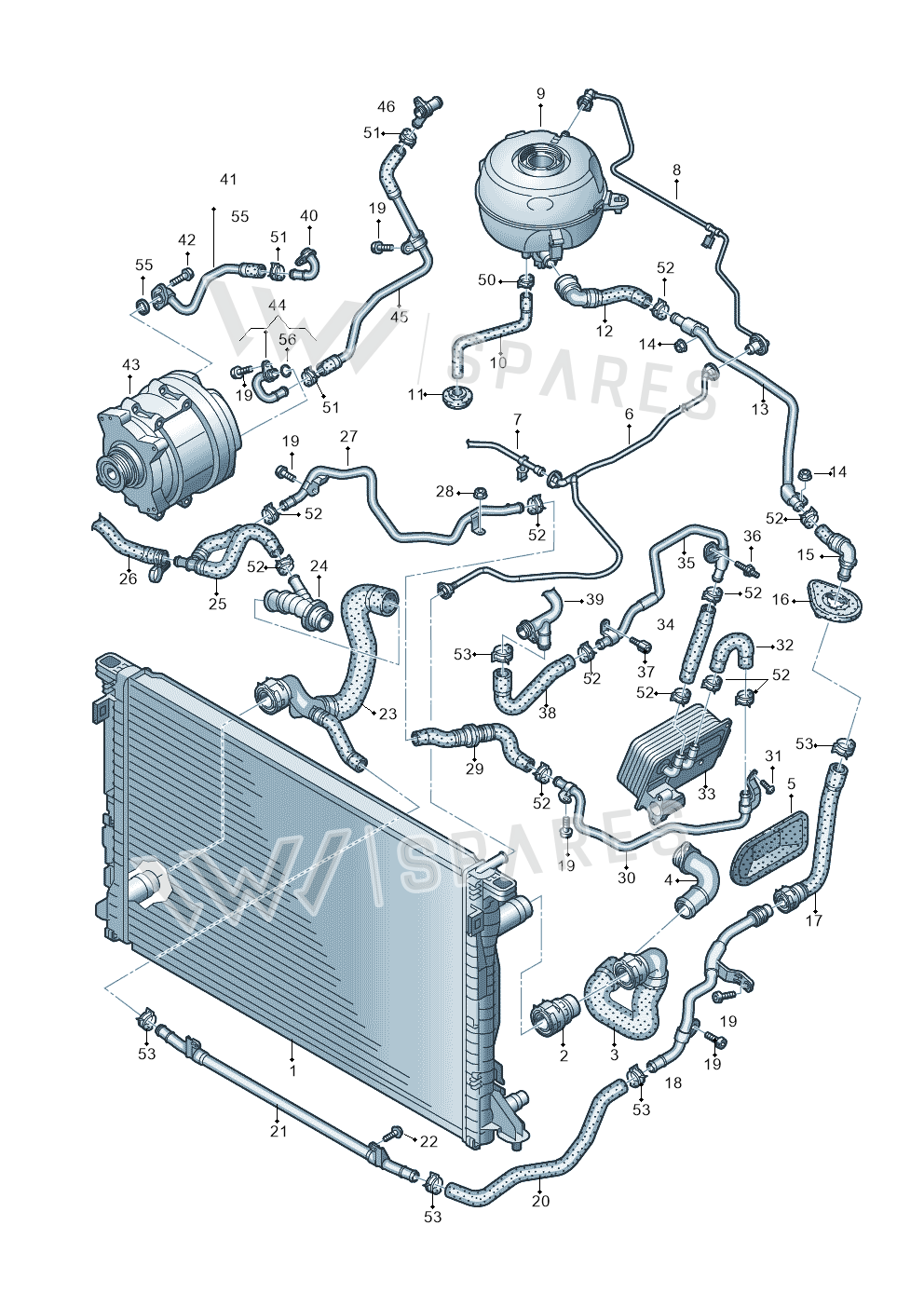

4 vehiclesCoolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 2Coupl Piece 4KG122293H
- 3Hose 4K0122101AT
- 5Grommet 4K0121585E
- 6Line 4K0121081CS
- 8Line 4KG121081C
- 10Hose 4K1121123A
- 11Grommet 4KG819345
- 12Hose 4KG122109B
- 13Water Pipe 4K1121071D
- 14Collar Nut N01508210
- 15Hose 4KG819314
- 16Adapter 4K0122291D
- 17Hose 4K0122109AA
- 18Water Pipe 4K0121071K
- 19Bolt N91096701
- 20Hose 4K0121109AQ
- 21Water Pipe 4K0121070P
- 22Screw N10721401
- 23Hose 4KG122055A
- 25Hose 4KG819337
- 29Hose 4K0122449D
- 30Water Pipe 4K0121485M
- 31Screw WHT003841
- 32Hose 4K0121449P
- 34Hose 4K0121448M
- 35Water Pipe 4K0121481G
- 36Bolt N10771101
- 37Bolt WHT008696
- 38Hose 4K0121447AE
- 41Water Pipe 06M121661H
- 42Bolt N10156206
- 44Water Pipe 06M121486E
- 45Water Pipe 06M121662D
- 50Clamp N90926401
- 51Clamp 06B145917A
- 52Clamp N90686901
- 53Clamp N90687001
- 55Seal 06M121488A
- 56Seal Ring N90097001
Vehicle fitment table4
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| audi a6 2.0 | 2018- | 27, 16, 11, 21 | 1 |
| Audi A7 Sportback | 2018- | 27, 16, 11, 21 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A7 | 2021- | 27 | 1 |
| Audi A6 L 2.0 | 2018- | 27 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A7 2021-; Audi A6 L 2.0 2018-.
