4K0816743BF Refrigerant Line
- 4K0816743BFThis pageNot stocked
Aug 2019 - 4K0816743DBCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

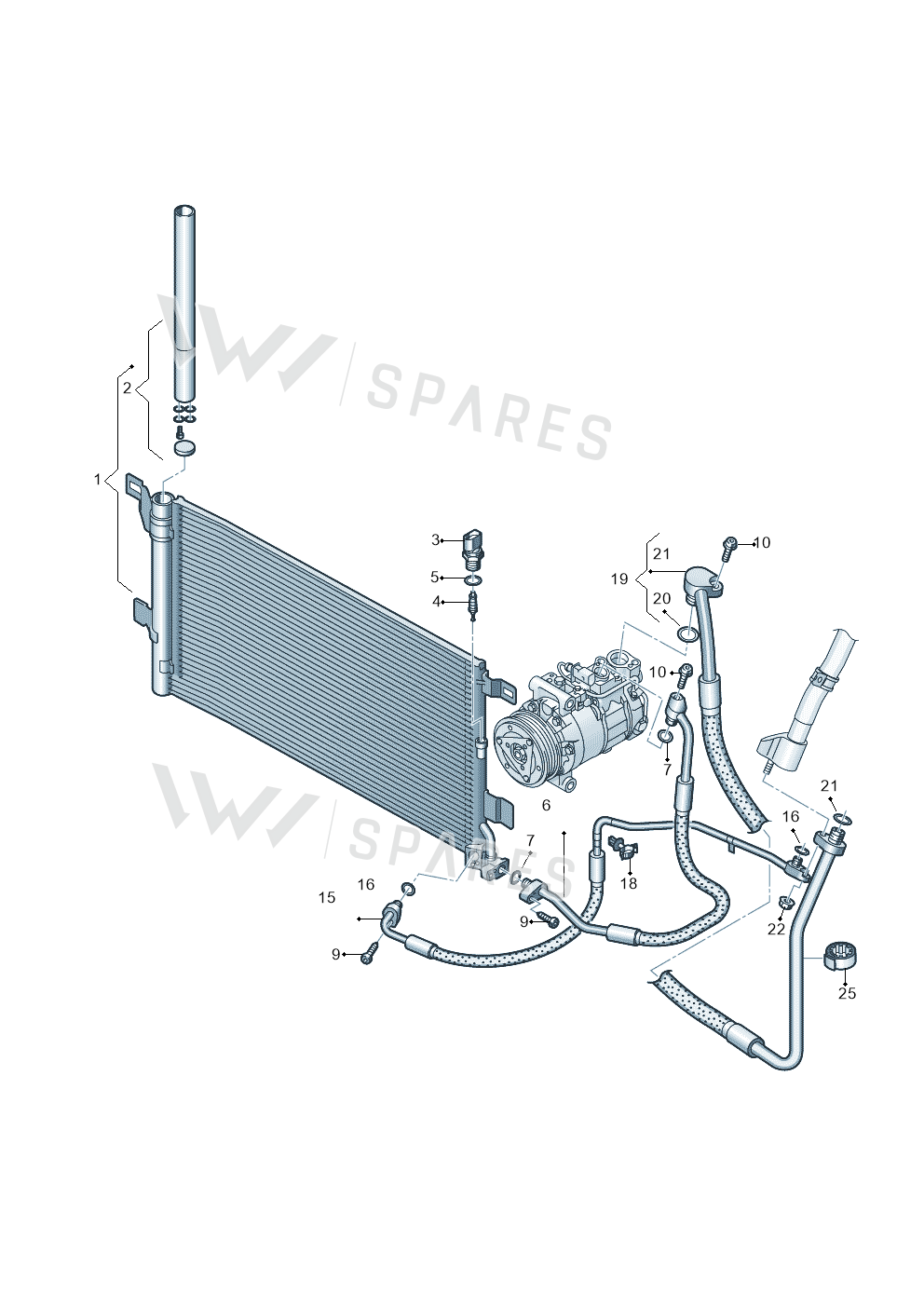

2 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 4K0816411G
- 1Part 4K0816411J
- 1Condenser 4M0816421B
- 1Condenser 4M0816421D
- 1A C Conden 8W0816411AA
- 1A C Conden 8W0816411L
- 1Part 8W0816411Q
- 1Part 8W0816411R
- 1A C Conden 8W0816411S
- 1Condenser 8W0816421J
- 1Condenser 8W0816421M
- 2Insert 4M0298403
- 2Insert 5Q0298403C
- 2Insert 8W0298403
- 3Sender 4H0959126C
- 3Sender 4H0959126B
- 4Part 8A0820855AA
- 5Seal Ring 7H0820896
- 6Line 4K0816721EC
- 6Line 4K0816721ED
- 6Line 4K0816721EF
- 6Line 4K0816721EG
- 6Line 4K0816721EJ
- 6Line 4K0816721EK
- 6Line 4K0816721EL
- 6Line 4K0816721EM
- 6Line 4K0816721ES
- 6Line 4K0816721DF
- 7Seal Ring 4E0260749A
- 9Bolt N91071702
- 10Screw N10414402
- 15Line 4K0816741BD
- 15Line 4K0816741BE
- 15Line 4K0816741BF
- 15Line 4K0816741BJ
- 15Line 4K0816741AE
- 16Seal Ring 3D0260749C
- 18Bracket WHT008174
- 19Line 4K0816743BG
- 19Line 4K0816743BH
- 19Line 4K0816743BJ
- 19Line 4K0816743BK
- 19Line 4K0816743CQ
- 19Line 4K0816743DB
- 19Line 4K0816743DE
- 20Seal Ring 8E0260749C
- 21Seal Ring 4E0260749B
- 22Collar Nut N01508210
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| audi a6 2.0 | 2018- | 19 | 1 | T9I | |
| Audi A7 Sportback | 2018- | 19 | 1 | T9I |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-.
