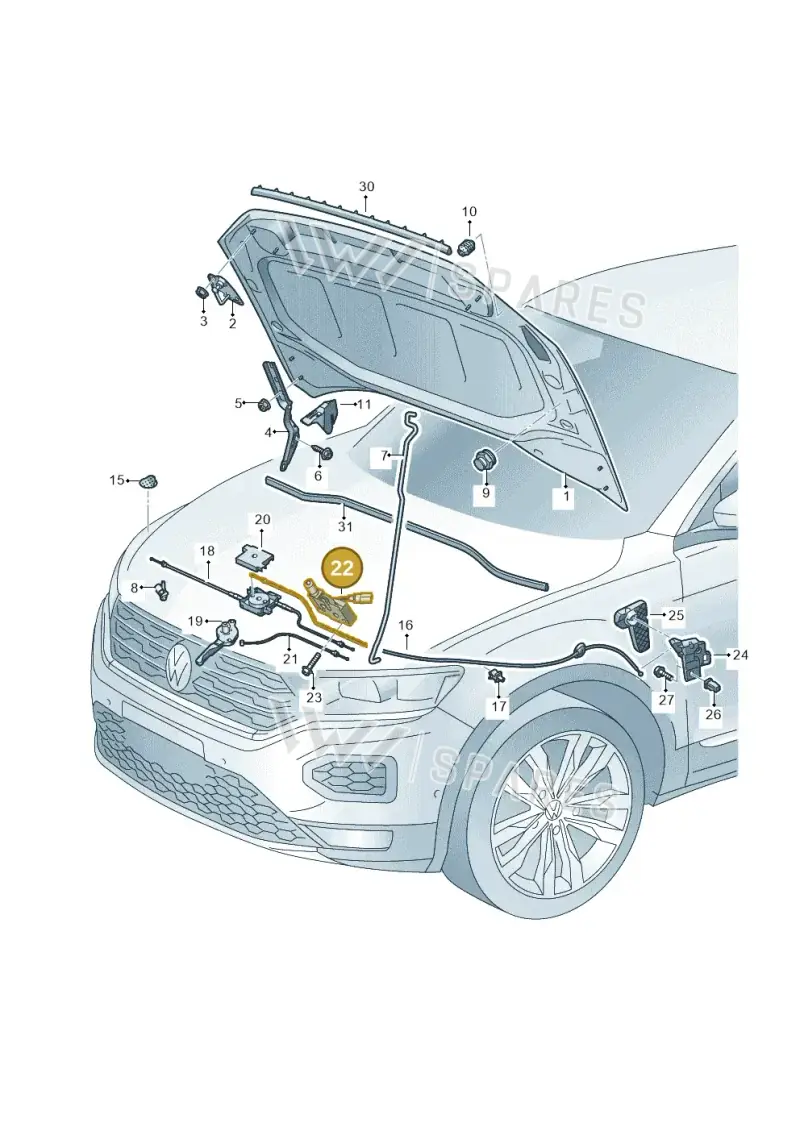

Number 22 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Lid Lock, part number 4K0823509A. This lid lock secures the bonnet and may include a micro-switch to signal its status to the vehicle's systems. It is located at position 22 in the diagram. Genuine OEM lid locks are precisely engineered for secure closure and reliable signaling.
Catalogue entry: LOCK left a. right ×2.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 83023000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 9.8 × 2.5 cm
- Shipping weight
- 0.32 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesLid Lock With Microswitch — locate 4K0823509A Volkswagen Lid Lock | Body Exterior in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Bonnet 8B3823029B
- 2HingeLeft8B3823301
- 2HingeRight8B3823302
- 3Screw N91257201
- 4Part N90511508
- 5G Fill Str 8B3823359
- 6Stud WHT007230
- 7Gasket 8B3823707
- 8Sound Abs 8B3863825
- 9Clip 8E0863727A
- 10CoverLeft8B1819403
- 10CoverRight8B2819403
- 11CoverLeft8B1819447
- 11CoverRight8B2819447
- 12CoverLeft8B1819404
- 12CoverRight8B2819404
- 13Bungs 8P4803593A
- 14Grommet 4E0955998
- 15Seal 4M0804535A
- 15Bungs N10226601
- 17Seal 8B3823723
- 20Filler PieceLeft8B3807251
- 20Filler PieceRight8B3807252
- 21Lid CableLeft8B1823535
- 21Lid CableRight8B2823535
- 22Clip N90653901
- 23LeverLeft8B1823533
- 23LeverRight8B2823533
- 24Grommet 191971908
- 25Seal 8B3821169
- 25Seal 8B3821170
- 26Spring Rivet N90558401
- 27CoverLeft8B3821653
- 27CoverRight8B3821654
- 28Bungs 8B3821801
- 29StrikerLeft8MA823185A
- 29StrikerRight8MA823186A
- 30Collar Nut N10205802
- 32Bracket 3B0919136A
- 34Release 8B3823529
- 35Screw N10721401
- 36Lever 8W0823661D
- 37Cable 8B3823531
- 39Cover 4H0823543
- 40BracketLeft8B1823633
- 40BracketRight8B2823633
- 42Bolt N90775001
- 43Part N91038301
Compatible / alternative parts(5)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 31 | 2 |
| Audi A5 Avant 2.0 | 2024- | 31 | 2 |
| Caddy Maxi Kombi | 2020-2024 | 17 | 2 |

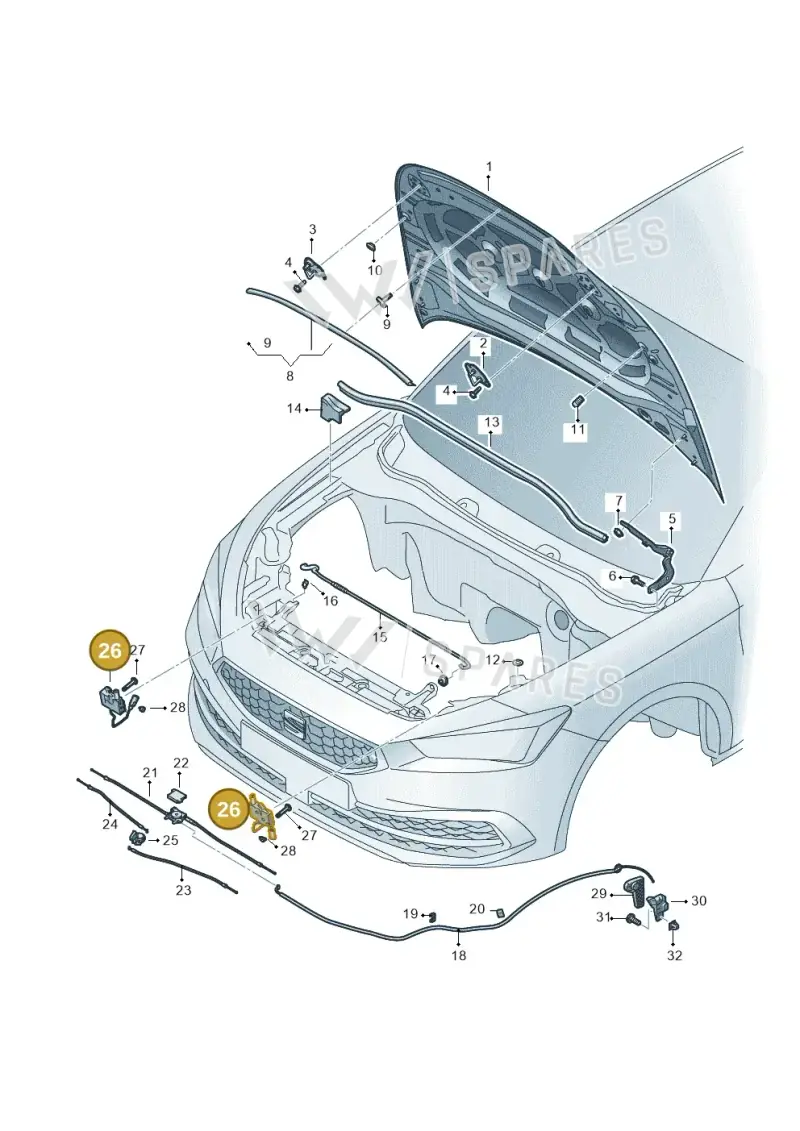

| Leon style | 2019- | 26 | |
| Golf 2.0 BlueMotion | 2019-2024 | 17 | 2 |
| T-Roc convertible 1.5 | 2019-2024 | 22 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
4K0823509A Volkswagen Lid Lock | Body Exterior is fitted on: Audi A5 Limo 2.0 2024-; Audi A5 Avant 2.0 2024-; Caddy Maxi Kombi 2020-2024; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; T-Roc convertible 1.5 2019-2024.
