4KE816727D Refrigerant Line
- 4KE816727DThis pageNot stocked
Jan 2020 - 4KE816727ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

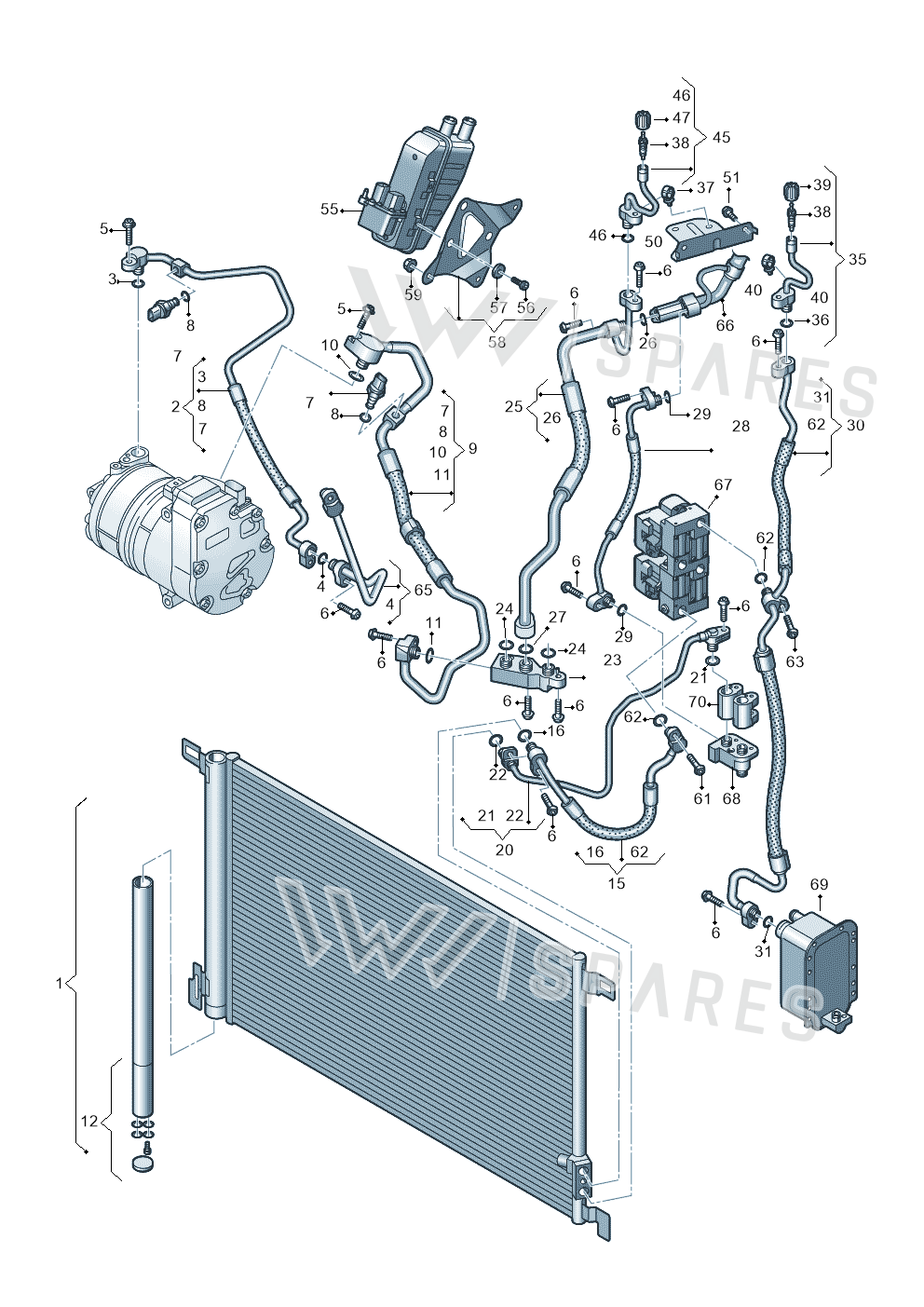

1 vehicleRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Condenser 4M0816411R
- 1Condenser 4M0816411D
- 2Part 4KE816721K
- 2Part 4KE816721L
- 2Part 4KE816721N
- 2Part 4KE816721P
- 2Line 4KE816721F
- 3Seal Ring 4E0260749A
- 5Screw N10414402
- 6Bolt N10632102
- 7Part 4M0959603E
- 7Part 4M0959603J
- 8Seal Ring 4M0261185
- 9Part 4KE816743J
- 9Part 4KE816743K
- 9Part 4KE816743L
- 9Part 4KE816743M
- 9Line 4KE816743F
- 10Seal Ring 8E0260749C
- 11Seal Ring 4E0260749C
- 12Insert 4M0298403
- 15Line 4KE816700D
- 15Line 4KE816700C
- 20Line 4KE816741E
- 21Seal Ring 4E0260749B
- 22Seal Ring 3D0260749C
- 23Basicplate 4KE820339F
- 25Line 4KE816727E
- 28Line 4KE816704F
- 30Line 4KE816706C
- 30Line 4KE816706B
- 35Pipe 4KE816750A
- 35Pipe 4KE816750B
- 35Pipe 4KE820750D
- 35Pipe 4KE820750C
- 37Bracket 8K0260759H
- 38Valve 8E0820855
- 39Part 5Q0816581
- 39Part 3C0820581
- 45Pipe 4KE816728A
- 45Pipe 4KE820728C
- 47Part 5Q0816231
- 47Part 3C0820231
- 50Bracket 4KE820495B
- 50Bracket 4KE820495A
- 51Bolt N10335206
- 55Part 3Q0963231E
- 55Part 3Q0963231F
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 e-tron | 2018-2020 | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Audi Q8 e-tron 2018-2020.
