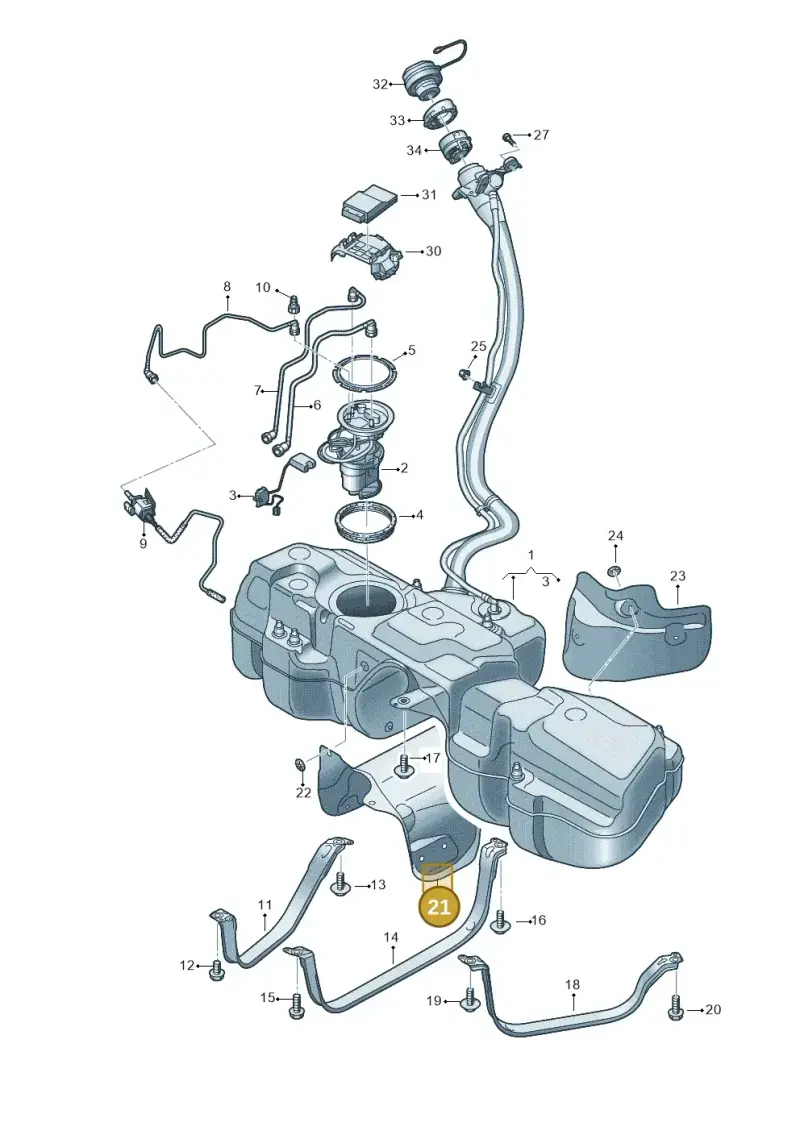

Number 21 marks the part’s position in this exploded view (Audi Q8 (2018-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

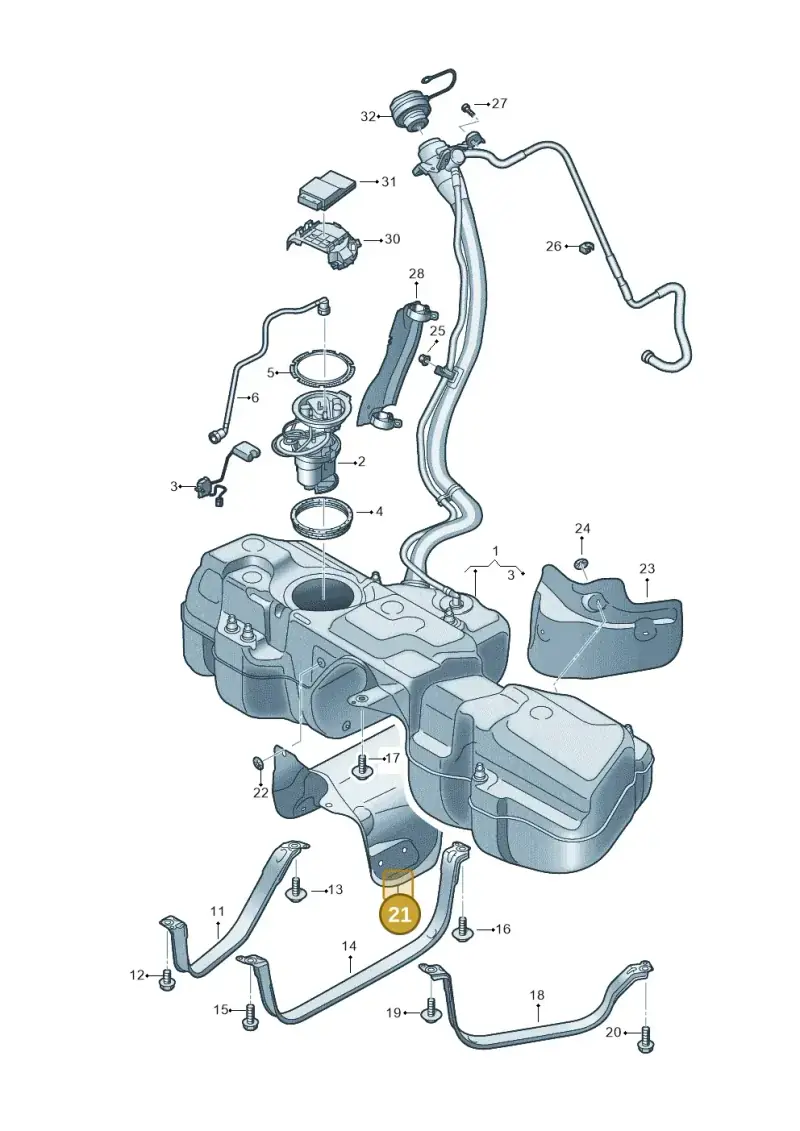

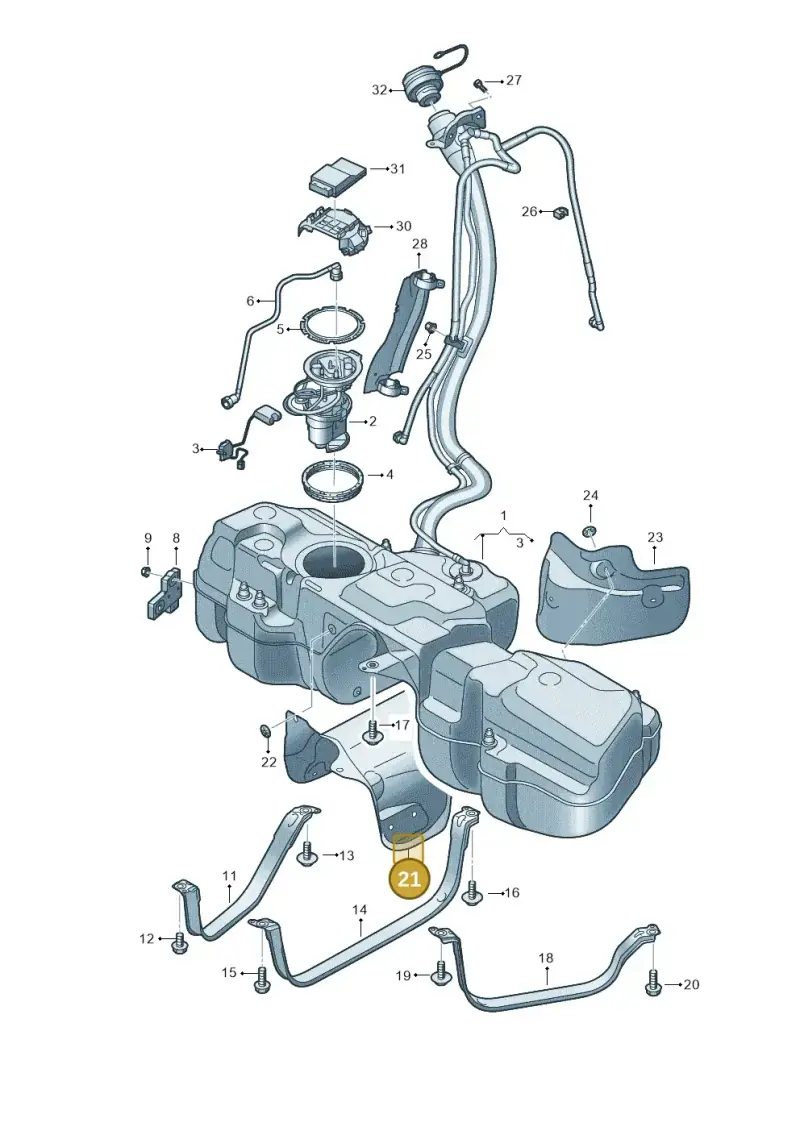

Genuine OEM Audi Heat Shield, part number 4M0201307A. Fits Audi Q8 (2018-2025), Audi Q7 (2015-2025). Shown as position 21 in the fuel, exhaust and cooling diagram 859201010.
Catalogue entry: HEAT SH. center.
Technical details
- Category
- Fuel System
- Diagram sheet

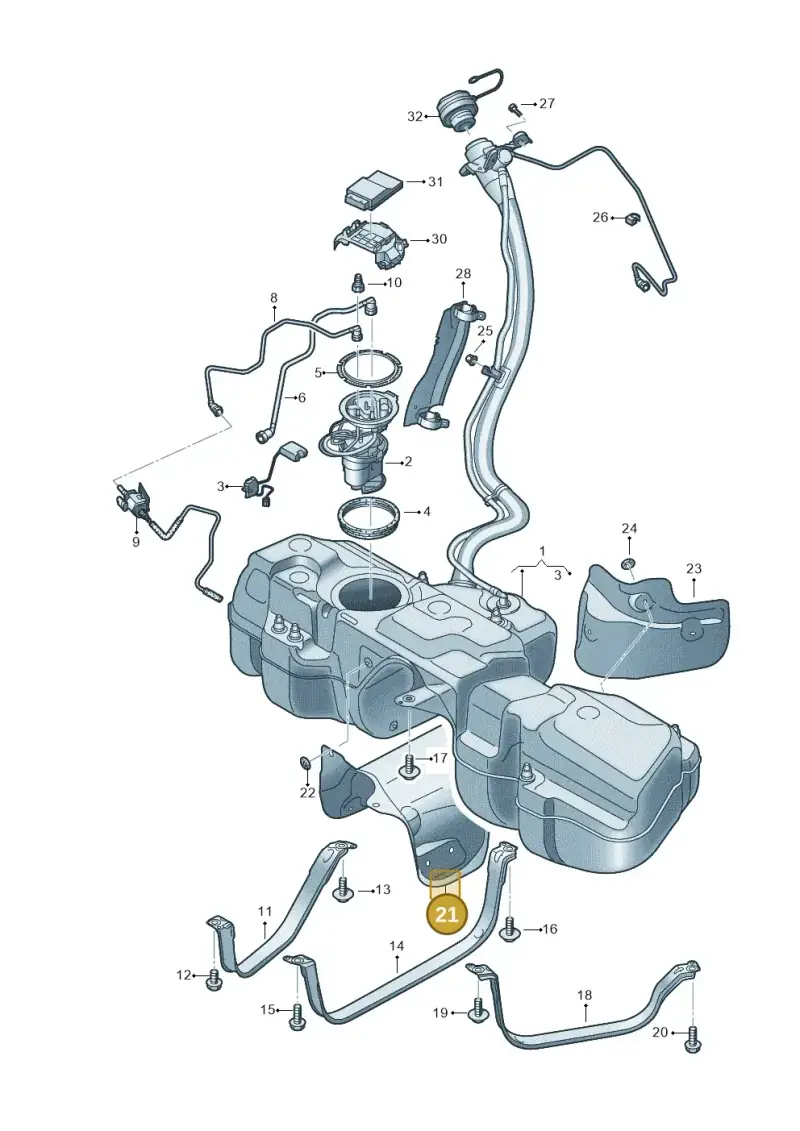

- Audi 429201000, position 21
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHeat Shield — locate 4M0201307A Audi Heat Shield in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly30
- 1Container 4M0201060CT
- 1Container 4M0201060DA
- 1Container 4M0201060EJ
- 1Container 4M0201060EK
- 2Module 4M0919087G
- 2Module 4M0919087F
- 3Sender 4M0919671C
- 4Seal Ring 1J0919133B
- 5Part 1K0201375
- 6Fuel Line 4M0201220C
- 6Fuel Line 4M0201220E
- 11Strap 4M0201392C
- 12Bolt N91237201
- 13Screw N91247301
- 13Screw N91301301
- 14Strap 4M0201392F
- 18Strap 4M0201391C
- 21Heat ShRight4M0201308H
- 22Washer N90335006
- 23Heat ShLeft4M0201307
- 23Heat ShRight4M0201308G
- 25Collar Nut N90757901
- 26Clip 443809948
- 27Bolt N91042301
- 30Retainer 4M0907731
- 31Control Unit 4K0906121D
- 31Control Unit 4K0906121A
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5N0201550C
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550A
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AH
Compatible / alternative parts(3)
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 21 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 21, 23 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
4M0201307A Audi Heat Shield is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
