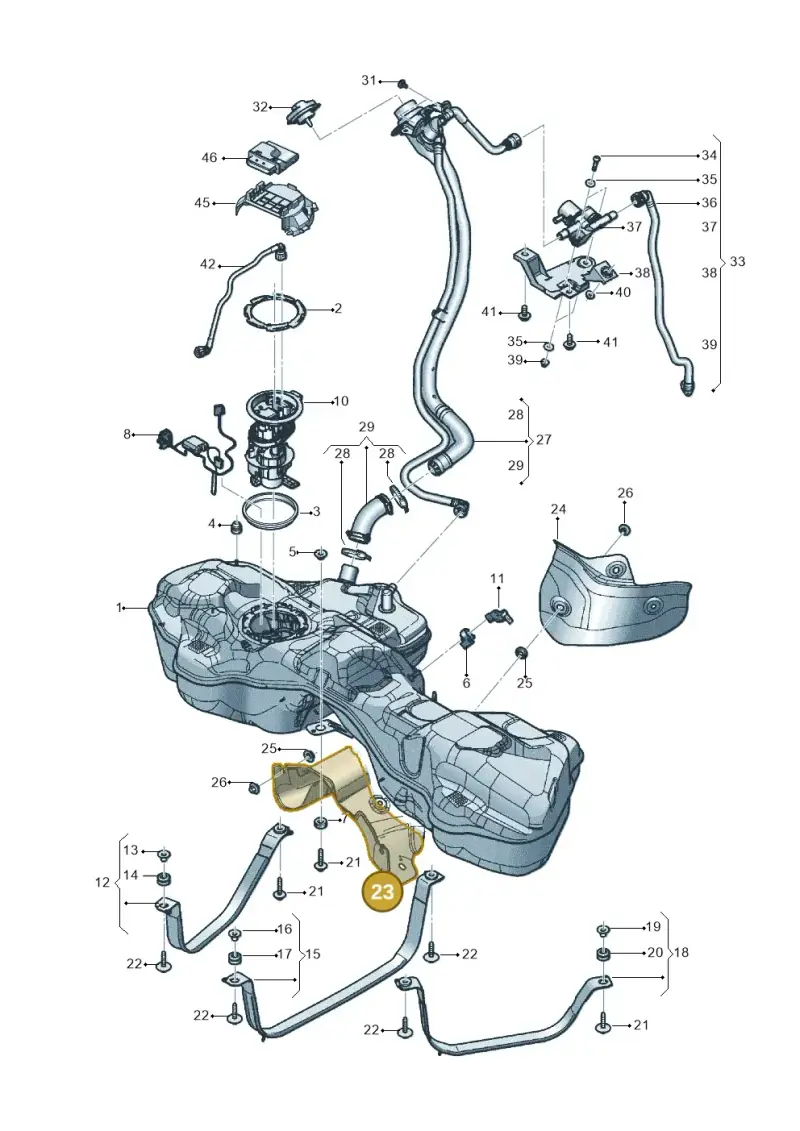

Number 23 marks the part’s position in the exploded view (Audi Q8 (2018-2025)).
Product overview
Genuine OEM Audi Heat Shield, part number 4M0201308F. Fits Audi Q8 (2018-2025), Audi Q7 (2015-2025). Shown as position 23 in the fuel, exhaust and cooling diagram 429201200.
Catalogue entry: HEAT SH. right.
Fitted with: 4G0201445 ATTACH.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 429201200, position 23
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

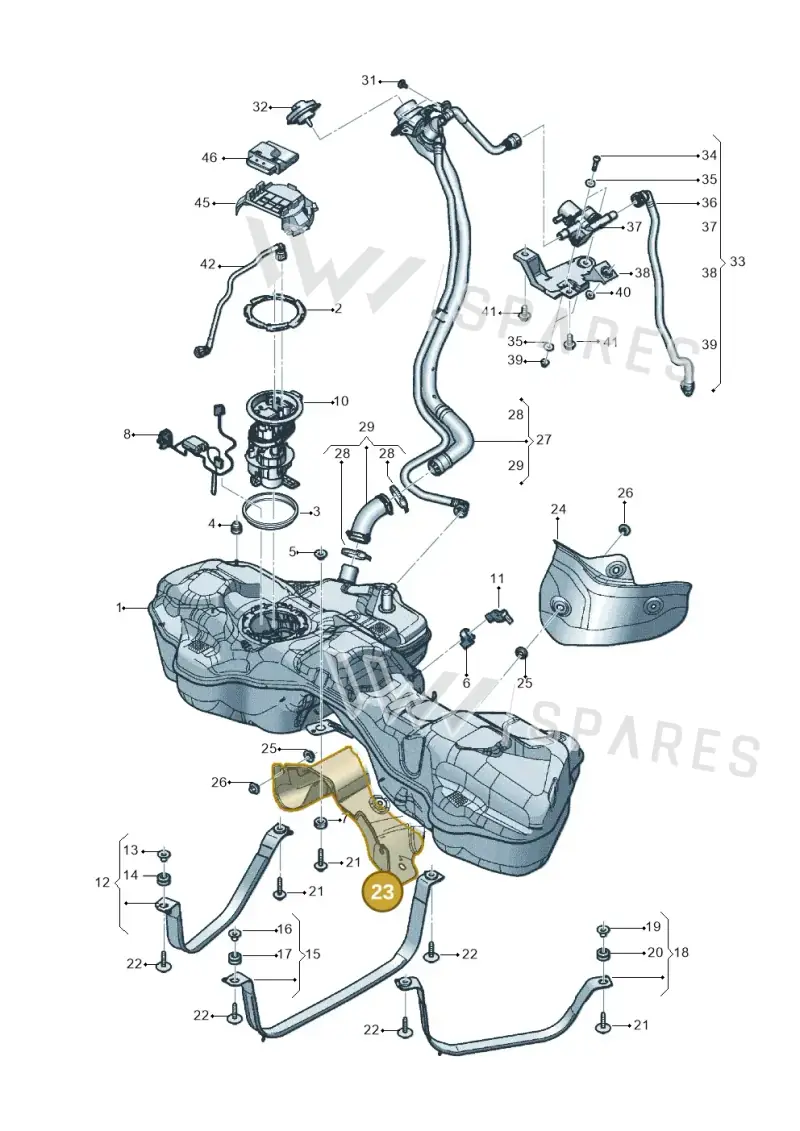

2 vehiclesHeat Shield — locate 4M0201308F Audi Heat Shield in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Tank 36A201075AJ
- 1Tank 4M0201075BG
- 1Tank 4M0201075BH
- 2Part 4E0201375
- 3Seal Ring 1J0919133B
- 4Insulation 8K0201274B
- 5Bush 8K0201693C
- 6Clip 4M0201278A
- 7Rubber Bush 8K0201840C
- 8Sender 4M0919047
- 8Sender 4M0919673F
- 10Module 4M0919087BR
- 11Sensor 4M0201733C
- 12Strap 4M0201392E
- 15Strap 4M0201392D
- 18Strap 4M0201391B
- 21Screw N91247301
- 21Screw N91301301
- 22Bolt N91237201
- 24Heat Sh 4M0201308E
- 25Spacer 4G0201532
- 26Attach 4G0201445
- 27Fuelfiller 4M0201135AD
- 27Fuelfiller 4M0201135S
- 31Bolt N91042301
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550AT
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AR
- 32Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550J
- 33Regulator 4M4201549
- 33Regulator 4M4201549C
- 34Bolt N10156206
- 35Washer N01166620
- 36Line 4M4201183D
- 37Regulator 4N0201559
- 38Bracket 4M4201171
- 39Collar Nut N10205802
- 40Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 41Bolt N90959003
- 42Fuel Line 4M0201220J
- 45Retainer 4M0907731
- 46Control Unit 4M4906121B
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 23 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 23 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
4M0201308F Audi Heat Shield is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019.
