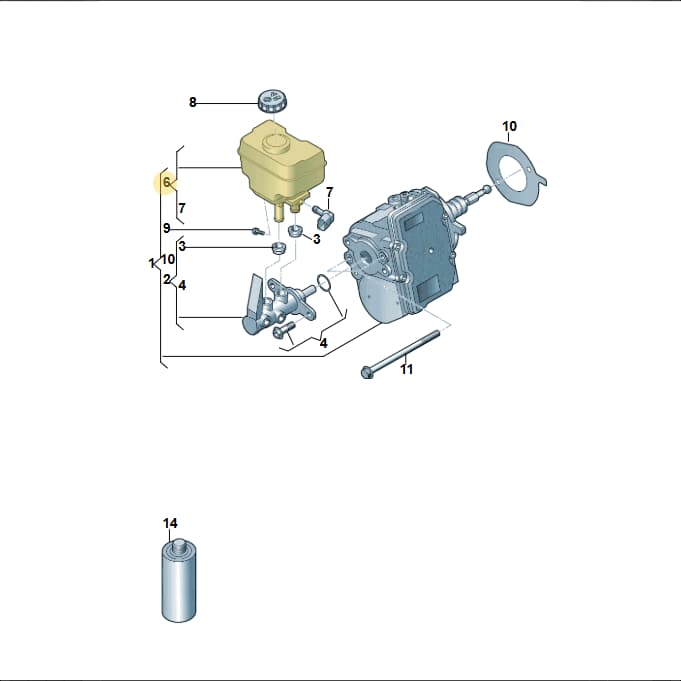

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Brake Master Cylinder Reservoir, part number 4M0614301. This essential component stores the hydraulic brake fluid, ensuring a continuous supply to the master cylinder and the entire braking system. It is typically mounted directly above the brake master cylinder. Weighing approximately 0.296 kg, it measures 0.143 m in length, 0.095 m in width, and 0.12 m in height. Choosing a genuine OEM reservoir ensures correct fluid capacity, proper sealing, and resistance to corrosive brake fluid, preventing leaks and maintaining braking system integrity.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14.3 × 9.5 × 12 cm
- Shipping weight
- 0.3 kg
Parts diagram & fitment
8 vehiclesReservoir For Brake Fluid — locate 4M0614301 Audi Brake Master Cylinder Reservoir | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(17)
- 1Brake Serv 4M0614105AA
- 1Brake Serv 4M0614105T
- 2Brake Cylinder 4M0614019A
- 3Bungs 12E611817
- 4Part 4M0698181A
- 7Sender 4M0611377
- 8Part 5Q0611349A
- 8Part 5Q0611349E
- 8Part 5Q0611349B
- 9Bolt 12E614159
- 10Seal 4M0612161
- 11Fixing Set 4M0698181
- 14Brakefluid B000750M3
- 14Brakefluid B000750M6
- 14Brakefluid B000750M7
- 14Brakefluid B000750M9
- 14Brakefluid B000750M1
Diagrams & fitment data powered by oemdiagrams.com
4M0614301 Audi Brake Master Cylinder Reservoir | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A6 L 2.0 2018-; Audi A8L 2017-2022; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; touareg 2017-2023.
