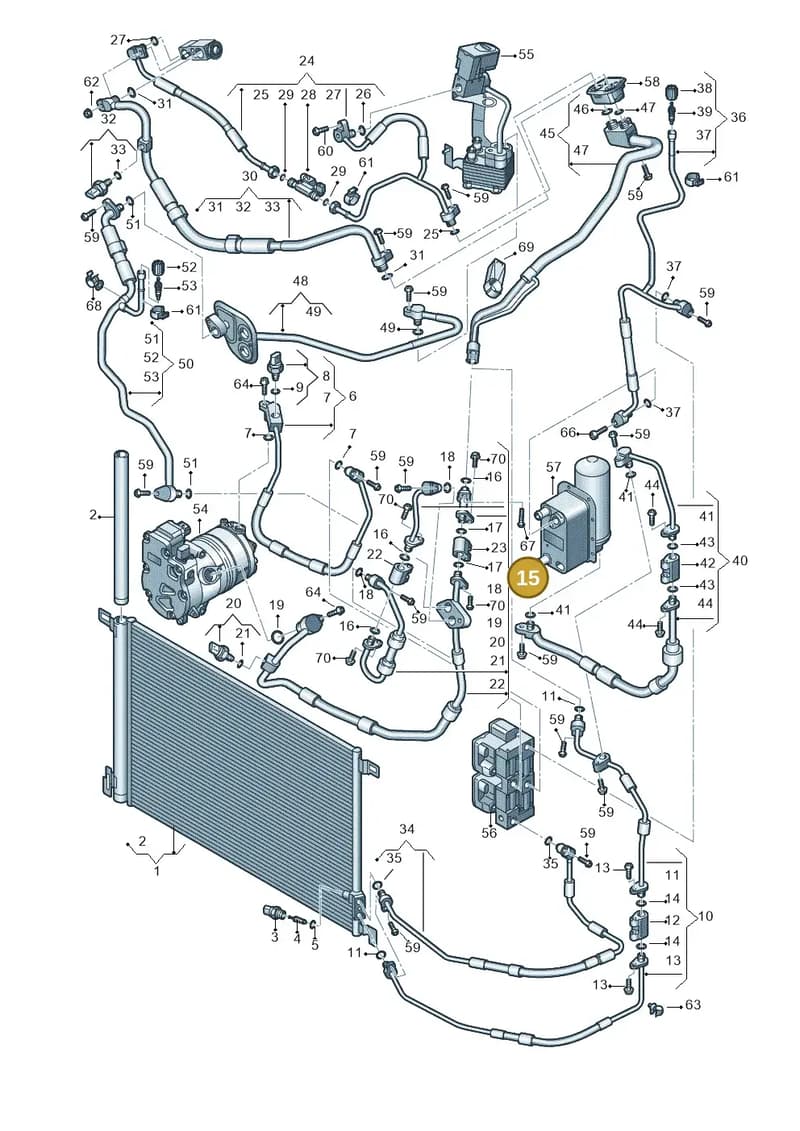

Number 15 marks the part’s position in the exploded view (Audi Q7 (2015-2025)).
Product overview
Genuine OEM Audi Refrigerant Line, part number 4M0816743DC. Fits Audi Q7 (2015-2025). Shown as position 15 in the fuel, exhaust and cooling diagram 859260450.
Catalogue entry: LINE; contains: 4M0 959 603 E; not in combination with: 4M0 959 603 J.
Fitted with: 4M0298403 INSERT, 4M0816743BQ LINE, 4M0816743BT LINE, 4M0816743CF LINE, 4M0816743DL LINE, 4M0816743BP LINE, 4M0816743CA LINE, 4M0816743CG LINE, 4E0260749B seal ring, 4E0260749A seal ring, 3D0260749C seal ring, N10632102 BOLT.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Diagram sheet
- Audi 859260450, position 15
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 52.5 × 37.5 × 16 cm
- Shipping weight
- 1.13 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0K3
- KK1
- KK3
- TS8
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Replaces older part numbers
This is the current manufacturer number. Older numbers on this road are no longer supplied.
- 4M0816743BQNot stocked
Jun 2021 - 4M0816743BTNot stocked
Aug 2021 - 4M0816743CFNot stocked
May 2021 - 4M0816743DCThis pageCurrent number
