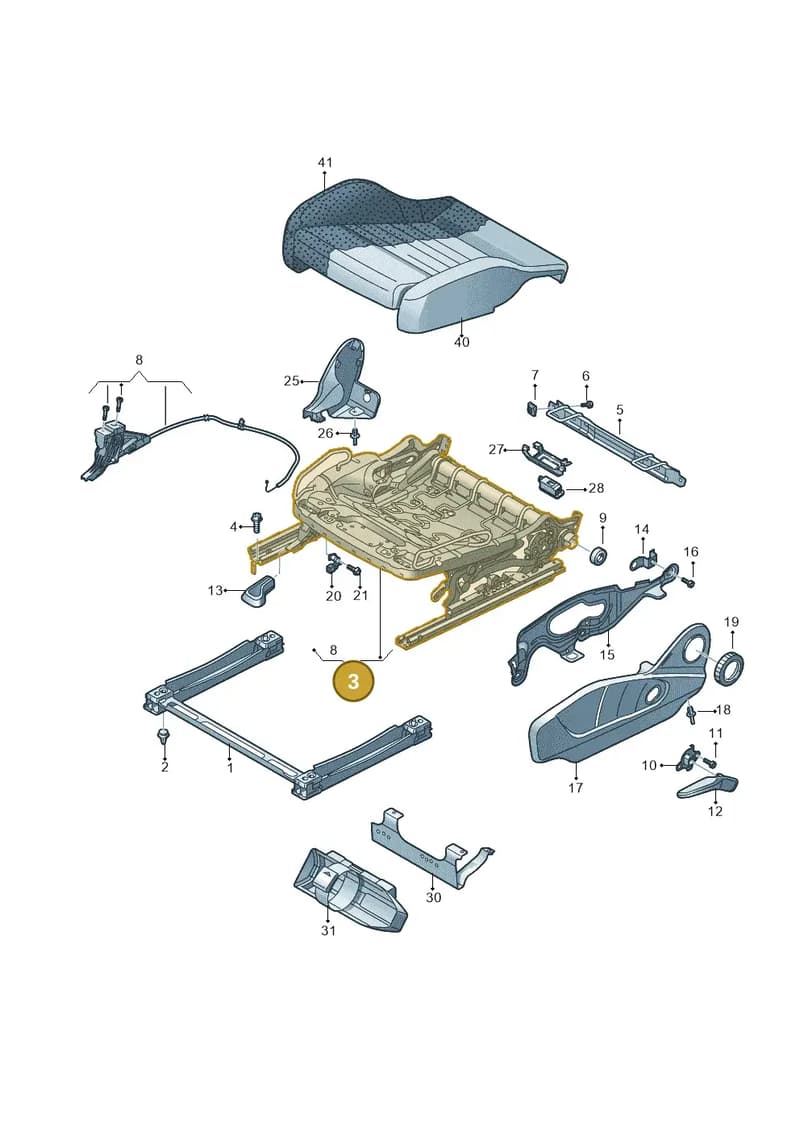

Number 3 marks the part’s position in the exploded view (Audi Q7 (2015-2025)).
Product overview
Genuine OEM Audi Seat Frame with Height Adjustment, part number 4M0881105N. Fits Audi Q7 (2015-2025). Shown as position 3 in the body diagram 859881000.
Catalogue entry: SEAT FRAME left; additionally to be used items: 9.
Fitted with: 4M0881105AB SEAT FRAME, 4M0881105F SEAT FRAME, 4M0881105AN SEAT FRAME, 8S0881105AD SEAT FRAME, N91236001 SCREW, 4M0881053 ADJUSTER, 8W8881087 Cover, 4N0881087 Cover, 4N08810874PK SOUL, 8W8881088 Cover, 4N0881088 Cover, 4N08810884PK SOUL.
Technical details
- Category
- Seats
- Diagram sheet
- Audi 859881000, position 3
- ETKA group
- 8 / 81 (881)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleSeat Frame With Height Adjustment — locate 4M0881105N Audi Seat Frame with Height Adjustment in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly44
- 1Bracket 4M0881677A
- 2Clip 4M0881280
- 3PartLeft4M0881105AN
- 3PartLeft4M0881105F
- 3PartRight4M0881106AB
- 3PartRight4M0881106AN
- 3PartRight4M0881106F
- 3PartRight4M0881106N
- 3PartLeft8S0881105AD
- 3PartRight8S0881106AD
- 3PartLeft4M0881105AB
- 4Screw N91236001
- 5Bracket 8S0881545
- 6Bolt N90737101
- 7Part N90088003
- 8CableRight8S8881614
- 8CableLeft8S8881613
- 9CoverLeft4N0881087
- 9CoverRight4N0881088
- 9CoverLeft8W8881087
- 9CoverRight8W8881088
- 9Adjuster 4M0881053
- 10LeverRight4M0881094
- 10LeverLeft4M0881093
- 11Bolt N10769601
- 12HandleRight8W0881254
- 12HandleLeft8W0881253
- 13HandleRight8W0881232
- 13HandleLeft8W0881231
- 14Ar Bar For Trim Retainer Bar For Trim Retainer 4M0881665
- 15BracketRight4M0882634
- 15BracketLeft4M0882633
- 16Screw N10170303
- 17TrimLeft4M0881325F
- 17TrimLeft4M0881325L
- 17TrimRight4M0881326
- 17TrimRight4M0881326F
- 17TrimRight4M0881326L
- 17TrimLeft4M0881325
- 18Spring Rivet N0385012
- 25TrimRight4M0881328
- 25TrimLeft4M0881327
- 27Retainer 4M0881547
- 28Light 4E0947415A
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 3 |
The manufacturer’s catalogue lists this part number as fitted until 30 May 2016; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
4M0881105N Audi Seat Frame with Height Adjustment is fitted on: Audi Q7 qu. 3.0 TDI 2015-2019.
