Product overview

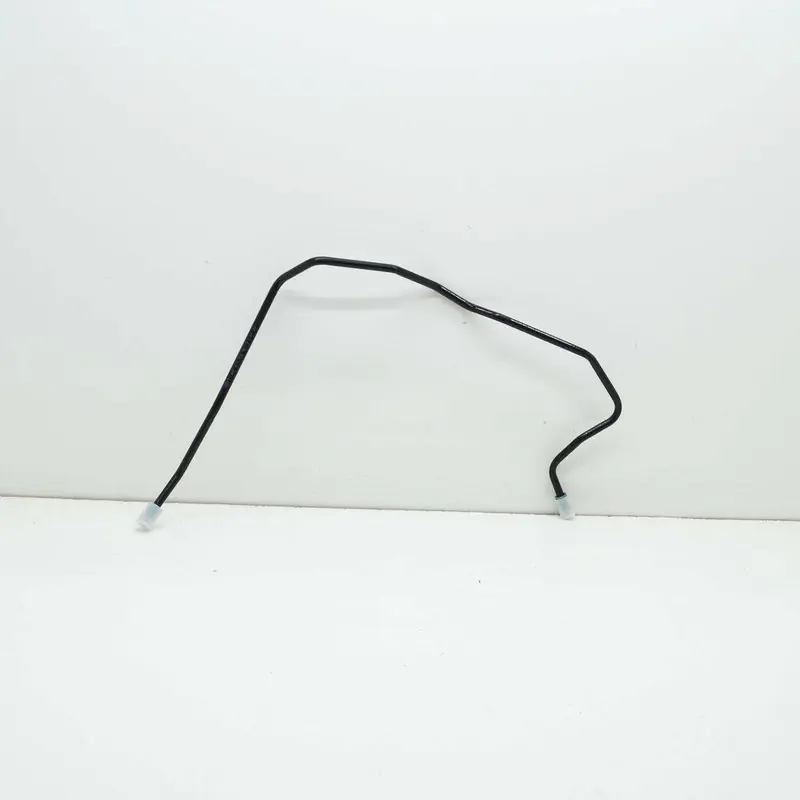

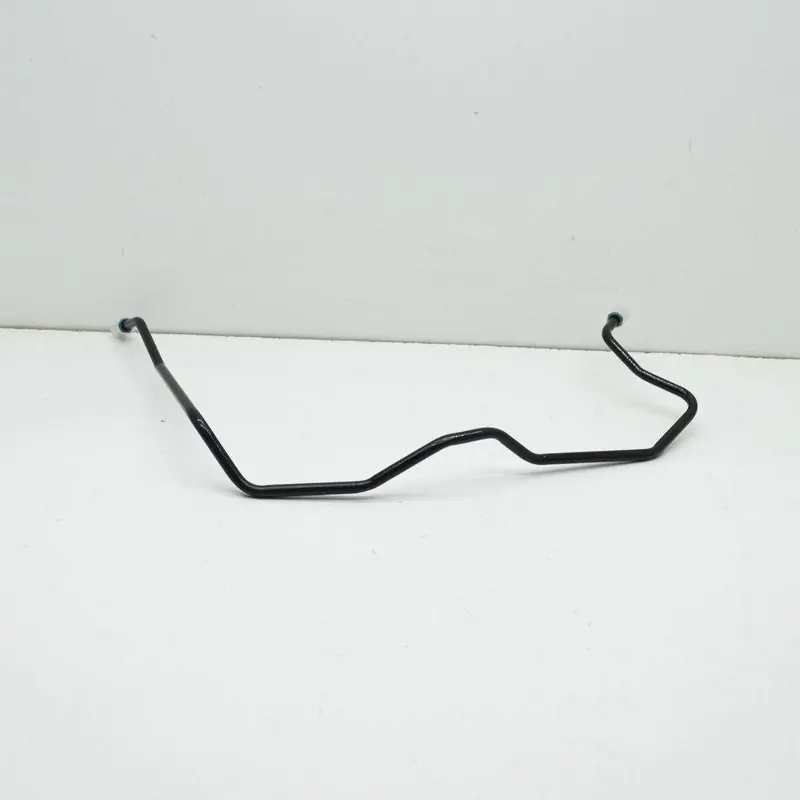

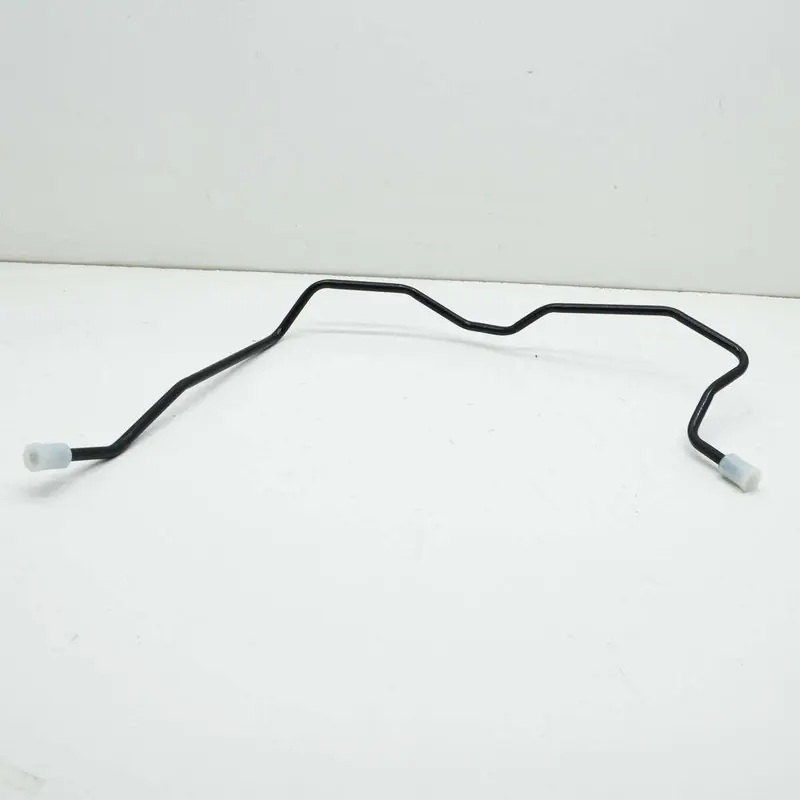

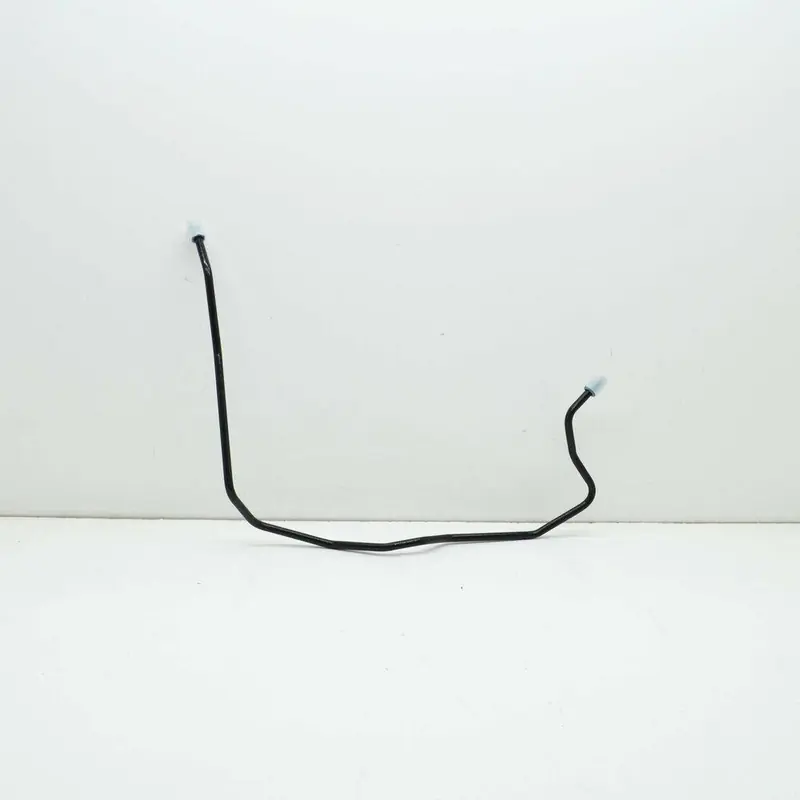

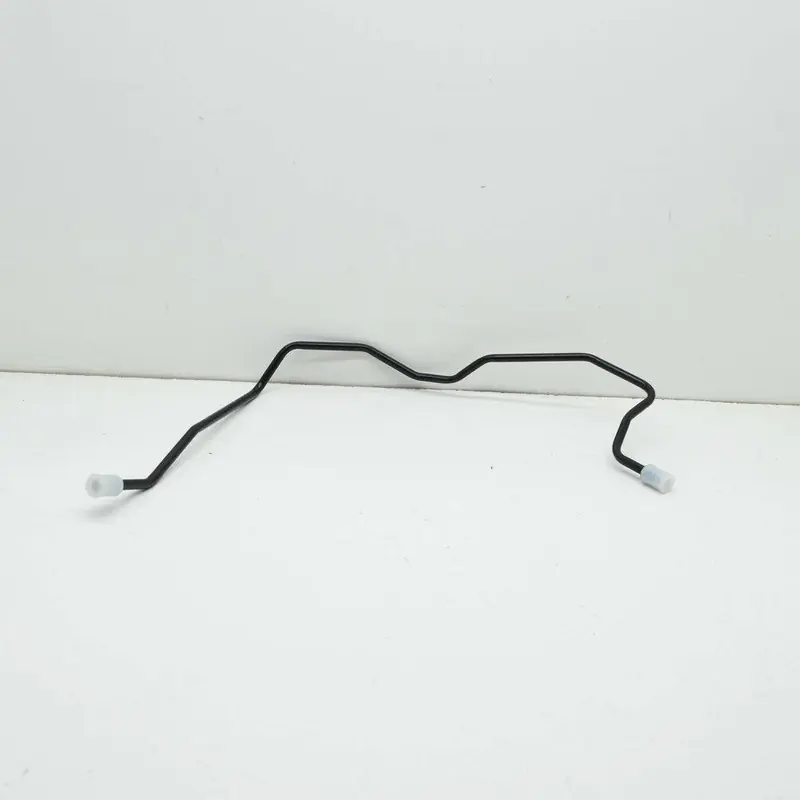

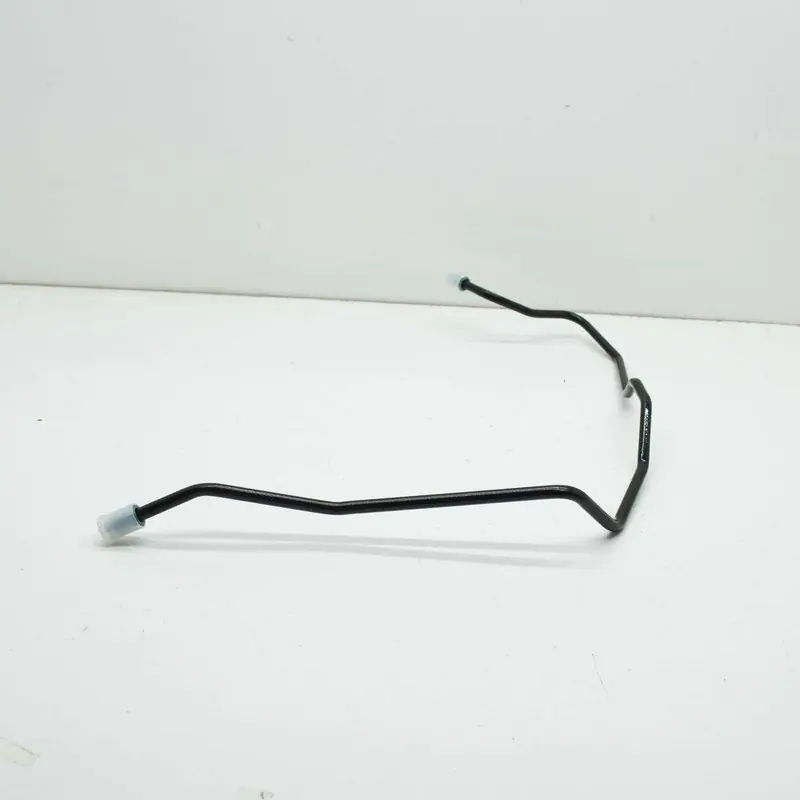

Genuine OEM Audi Front Brake Pipe, part number 4M1614706AB. This pipe is crucial for transmitting hydraulic pressure from the master cylinder to the front brake calipers, enabling the braking function. It is positioned within the front braking system. Weighing approximately 0.18 kg, this pipe measures 0.49m in length. Opting for a genuine OEM brake pipe ensures precise fitment, correct pressure ratings, and material integrity for safe and effective braking performance.
Catalogue entry: BRAKE PIPE lhd; use if required: 8E0 130 722 D.
Use with: 8E0130722D.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49 × 31 × 6.5 cm
- Shipping weight
- 0.18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesBrake Pipe — locate 4M1614706AB Audi Front Brake Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly42
- 1Brake PipeLeft4M1614705T
- 1Brake PipeRight4M2614705R
- 2PartRight4M2614706AD
- 3Brake Pipe 4M0614723F
- 3Brake Pipe 4M0614723E
- 4Brake Pipe 4M0614724K
- 4Brake Pipe 4M0614724J
- 5Part 4M0614725L
- 5Part 4M0614725M
- 5Part 4M0614725N
- 6Part 4M0614726L
- 6Part 4M0614726M
- 6Part 4M0614726N
- 6Part 4M0614726P
- 6Part 4M0614726Q
- 7Spring 8K0611715
- 8RetainerRight4M0611846N
- 8RetainerLeft4M0611845N
- 9Pop Rivet N91010401
- 10Brake Hose 4M0611707F
- 10Brake Hose 4M0611707E
- 11RetainerRight4M0611846Q
- 11RetainerLeft4M0611845Q
- 13RetainerRight4M0611846P
- 13RetainerLeft4M0611845P
- 14Bolt N91021102
- 15RetainerRight4M0611846J
- 15RetainerLeft4M0611845J
- 18Brake Hose 4M0611775B
- 20Grommet 8K0614769B
- 21Grommet 4M0614769B
- 22Bracket 4G0611797
- 23Spacer 4G0611853
- 23Ring 8E0130722D
- 23Sleeve 1J0611853
- 24Retainer 8K0611797G
- 25Bracket 8K0611797F
- 26Clip 8K0721350
- 27Clip 8S0611797B
- 28Bracket 6Q0611797L
- 29Bracket 1K0611853
- 30Dbl Clip N10335501
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 2 |
| touareg | 2017-2023 | 2 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
4M1614706AB Audi Front Brake Pipe | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; touareg 2017-2023; Audi Q7 qu. 3.0 TDI 2015-2019.
