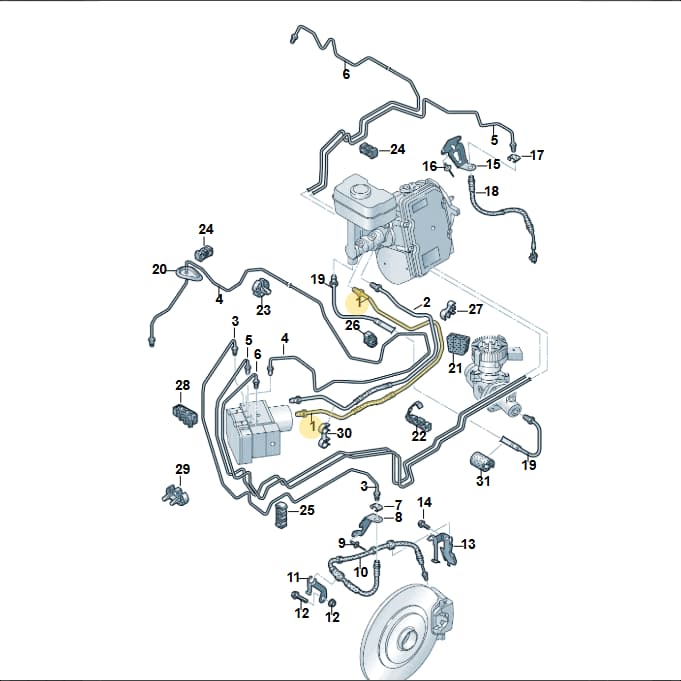

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 4M2614705S. This critical component is responsible for transferring hydraulic pressure from the master cylinder and ABS unit to the brake calipers, enabling effective braking. It is part of the complex brake line network. With a length of 1.015 m and weighing 0.375 kg, this pipe is designed for specific routing. Using a genuine OEM brake pipe ensures the correct material, pressure rating, and precise bends for safe and leak-free operation.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 101.5 × 41 × 17.5 cm
- Shipping weight
- 0.38 kg
Parts diagram & fitment
3 vehiclesBrake Pipe — locate 4M2614705S Volkswagen Brake Pipe | Hydraulic System in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(40)
- 1Brake PipeLeft4M1614705AA
- 2Brake PipeLeft4M1614706AC
- 2Brake PipeRight4M2614706AG
- 2Brake PipeRight4M2614706T
- 3Part 4M0614723E
- 4Brake Pipe 4M0614724K
- 4Brake Pipe 4M0614724J
- 5Part 4M0614725L
- 5Part 4M0614725N
- 6Part 4M0614726L
- 6Part 4M0614726N
- 6Part 4M0614726Q
- 7Spring 8K0611715
- 8RetainerRight4M0611846N
- 8RetainerLeft4M0611845N
- 9Pop Rivet N91010401
- 10Brake Hose 4M0611707E
- 11RetainerRight4M0611846Q
- 11RetainerLeft4M0611845Q
- 13RetainerRight4M0611846P
- 13RetainerLeft4M0611845P
- 14Bolt N91021102
- 15RetainerRight4M0611846J
- 15RetainerLeft4M0611845J
- 18Brake Hose 4M0611775B
- 19Brake PipeLeft4M1614719E
- 19Brake PipeLeft4M1614719F
- 19Brake PipeRight4M2614719C
- 20Grommet 8K0614769B
- 21Grommet 4M0614769B
- 22Bracket 4G0611797
- 23Spacer 4G0611853
- 23Sleeve 1J0611853
- 24Retainer 8K0611797G
- 25Bracket 8K0611797F
- 26Clip 8K0721350
- 28Bracket 6Q0611797L
- 29Bracket 1K0611853
- 30Dbl Clip N10335501
- 31Sleeve WHT009110
Diagrams & fitment data powered by oemdiagrams.com
4M2614705S Volkswagen Brake Pipe | Hydraulic System is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
