Product overview
Genuine OEM Audi Fuel Delivery Module Flange, part number 4N0201317. This critical component is designed to securely mount and seal the fuel delivery module to the top of the fuel tank. It plays a vital role in preventing fuel leaks and maintaining the integrity of the fuel system, ensuring safe and efficient fuel delivery. Weighing 0.286 kg and measuring 0.2m in length, this flange is engineered for a precise fit. Choosing a genuine OEM flange ensures the correct dimensions, material composition, and sealing properties, which are essential for preventing fuel vapor escape and maintaining system pressure.
Catalogue entry: FLANGE.
Fitted with: 1K0919133D seal ring, 1J0919133B seal ring, 4E0201375 Union nut.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 20 × 15 × 14 cm
- Shipping weight
- 0.29 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

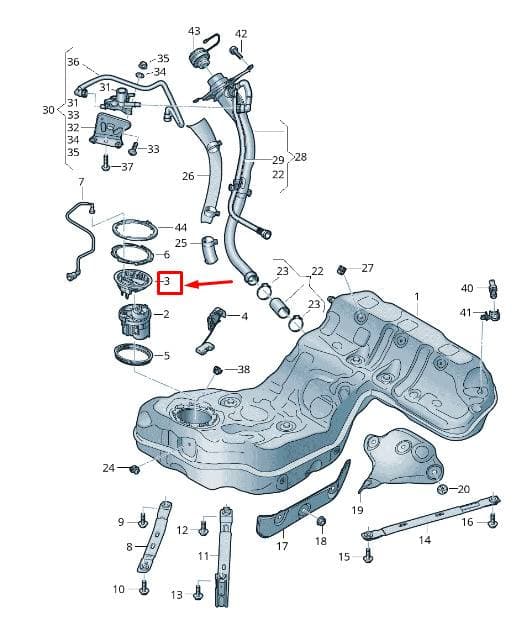

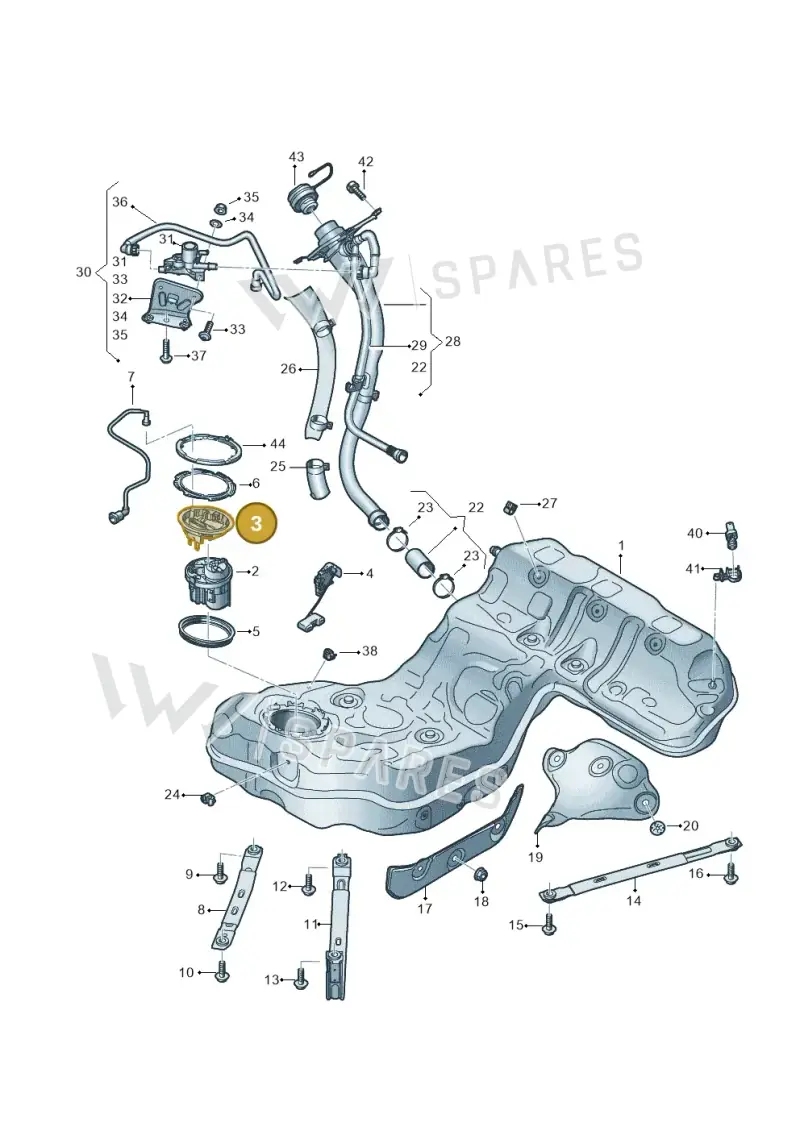

1 vehicleFlange — locate 4N0201317 Audi Fuel Delivery Module Flange | Fuel Tank Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly42
- 1Container 4N0201075CG
- 1Container 4N0201075L
- 2Module 4N0919088J
- 4Sender 4N0919047A
- 5Seal Ring 1J0919133B
- 5Seal Ring 1K0919133D
- 6Part 4E0201375
- 7Fuel Line 4N0201220C
- 8Strap 4N0201654E
- 9Bolt N91159101
- 11Strap 4N0201654D
- 13Screw N10673001
- 14Strap 4N0201653B
- 17Plate 4N0201782
- 18Attach 4G0201445
- 19Plate 4N0201783
- 20Spacer 4G0201532
- 25Prot Plate 4N0201974
- 26Prot Plate 4N0201974A
- 27Clip 95B611797
- 28Fuelfiller 4N0201135CE
- 28Fuelfiller 4N0201135CB
- 30Regulator 4N0201549A
- 30Regulator 4N0201549E
- 31Regulator 4N0201559
- 31Regulator 5Q0201549B
- 33Bolt N10156206
- 34Washer N01166620
- 35Collar Nut N10205802
- 36Line 4N0201183A
- 37Screw N91268001
- 38Clip 8R0201449J
- 40Sensor 4M0201733A
- 40Sensor 4M0201733C
- 41Clip 4M0201278A
- 42Screw N91049102
- 43Part 5Q0201550AR
- 43Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550AT
- 43Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AR
- 43Part 5WA201550BE
- 43Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550J
- 43Part 5WA201550Q
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A8L | 2017-2022 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
4N0201317 Audi Fuel Delivery Module Flange | Fuel Tank Seal is fitted on: Audi A8L 2017-2022.
