4S8201076R Fuel Tank
- 4S8201022ACNot stocked
Sep 2017 - 4S8201022AANot stocked
Jun 2017 - 4S8201076RThis pageNot stocked
Mar 2021 - 4S8201076AFCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

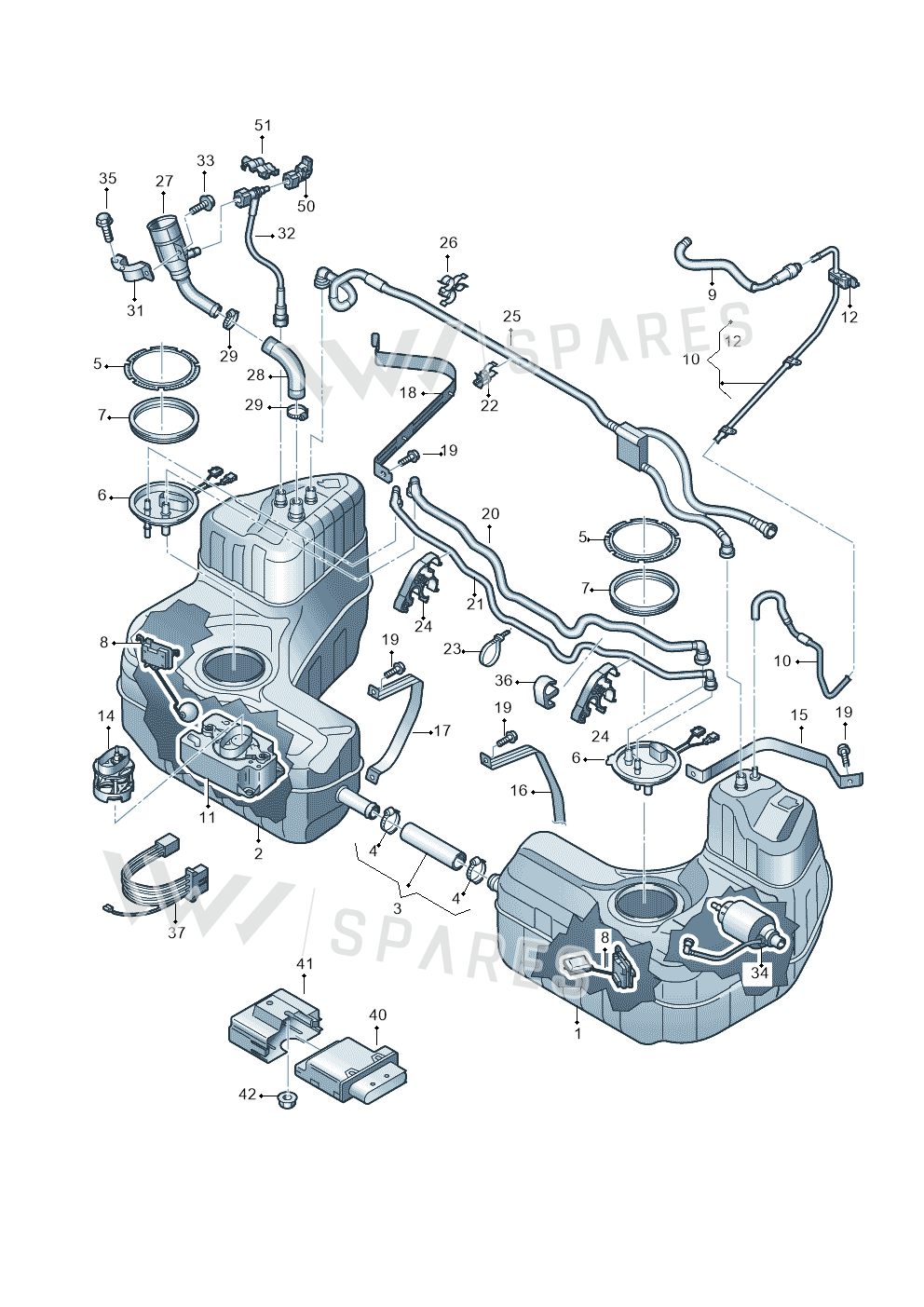

1 vehicleFuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1TankLeft4S0201021F
- 1TankLeft4S0201021E
- 2ContainerRight4S8201076AG
- 2ContainerRight4S8201076AF
- 2ContainerRight4S8201076S
- 3Hose 4S0201143C
- 3Hose 4S0201143A
- 5Part 4E0201375
- 6FlangeRight4S0201319B
- 6FlangeLeft4S0201319C
- 7Seal Ring 1J0919133B
- 8Sender 4S0919673
- 8SenderRight4S0919673A
- 8SenderLeft420919673A
- 10Fuel Line 4S0201215F
- 10Fuel Line 4S0201215C
- 12Clip 420201190A
- 14PumpRight4S0201444B
- 15StrapLeft4S0201653G
- 16StrapLeft4S0201653H
- 17StrapRight4S0201654H
- 18StrapRight4T7201654A
- 18StrapRight4S0201654G
- 19Screw N10704601
- 20Fuel Line 4S0201420G
- 20Fuel Line 4S0201420D
- 21Fuel Line 4S0201419G
- 21Fuel Line 4S0201419D
- 22Clip 4S0201449B
- 23Cable Tie 3D0971838
- 24Bracket 4S0201367C
- 25Pipe 4S0201167D
- 26Retainer N10528002
- 27Fuelfiller 4S8201135L
- 27Fuelfiller 4S8201135Q
- 27Fuelfiller 4S8201135J
- 28Hose 4S8201609B
- 28Hose 4S8201609A
- 29Clamp N91104001
- 31Bracket 4S8201260A
- 32Line 4S8201163B
- 32Pipe 4S8201163A
- 33Bolt N90684705
- 33Bolt N91227001
- 34Filter 4S0201511
- 35Bolt N90846301
- 36Holder 4S0201532B
- 37Cable Set 4S0919119
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi R8 Spyder | 2015-2024 | 2 | 1 | 0M1 |
Diagrams & fitment data powered by oemdiagrams.com
Fuel Tank is fitted on: Audi R8 Spyder 2015-2024.
