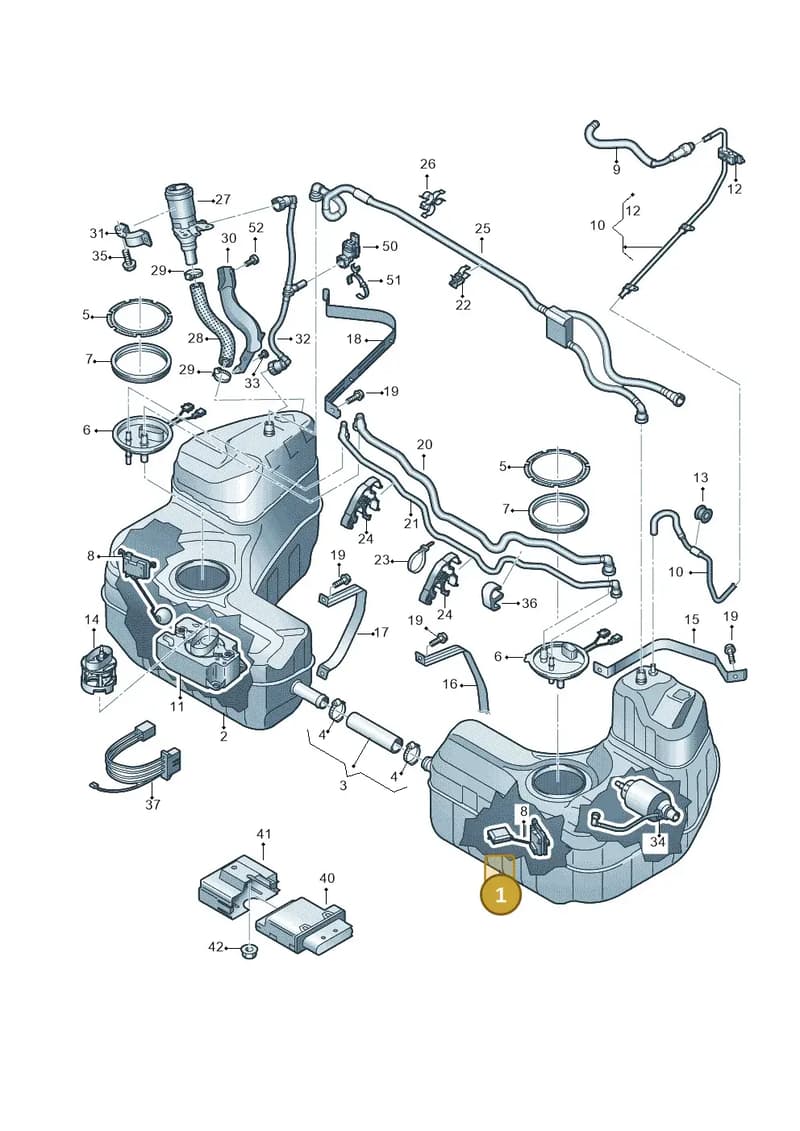

Number 1 marks the part’s position in this exploded view (Audi R8 Spyder (2015-2024)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Fuel Tank with Attachments, part number 4T7201021B. Fits Audi R8 Spyder (2015-2024). Shown as position 1 in the fuel, exhaust and cooling diagram 872201150.
Catalogue entry: TANK left.
Fitted with: 4S0201143C HOSE, N10704601 SCREW.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 872201050, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank With Attachments — locate 4T7201021B Audi Fuel Tank with Attachments in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 2Container 4S7201076J
- 3Hose 4S0201143C
- 3Hose 4S0201143A
- 5Part 4E0201375
- 6Flange 4S0201319B
- 6Flange 4S0201319C
- 7Seal Ring 1J0919133B
- 8Sender 4S0919673
- 8Sender 4S0919673A
- 8Sender 420919673A
- 10Fuel Line 4S0201215B
- 12Clip 420201190A
- 14Pump 4S0201444B
- 14Pump 4S0201444A
- 15Strap 4S0201653G
- 16Strap 4S0201653H
- 17Strap 4S0201654H
- 19Screw N10704601
- 20Fuel Line 4S0201420D
- 21Fuel Line 4S0201419D
- 22Clip 4S0201449B
- 23Cable Tie 3D0971838
- 24Bracket 4S0201367C
- 25Pipe 4T7201167B
- 26Retainer N10528002
- 27Fuelfiller 4S7201135Q
- 28Hose 4S7201609A
- 29Clamp N91104001
- 32Pipe 4S7201163
- 34Filter 4S0201511
- 35Bolt N90846301
- 36Holder 4S0201532B
- 37Cable Set 4S0919119
- 40Control Unit 4M0906093N
- 41Retainer 4S0907333
- 42Bolt N90974701
- 45Ring 4S0201202
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi R8 Spyder | 2015-2024 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
4T7201021B Audi Fuel Tank with Attachments is fitted on: Audi R8 Spyder 2015-2024.
