5C0121087F Connection Piece
- 5C0121087FThis pageNot stocked
Mar 2019 - 5C0122101AMCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

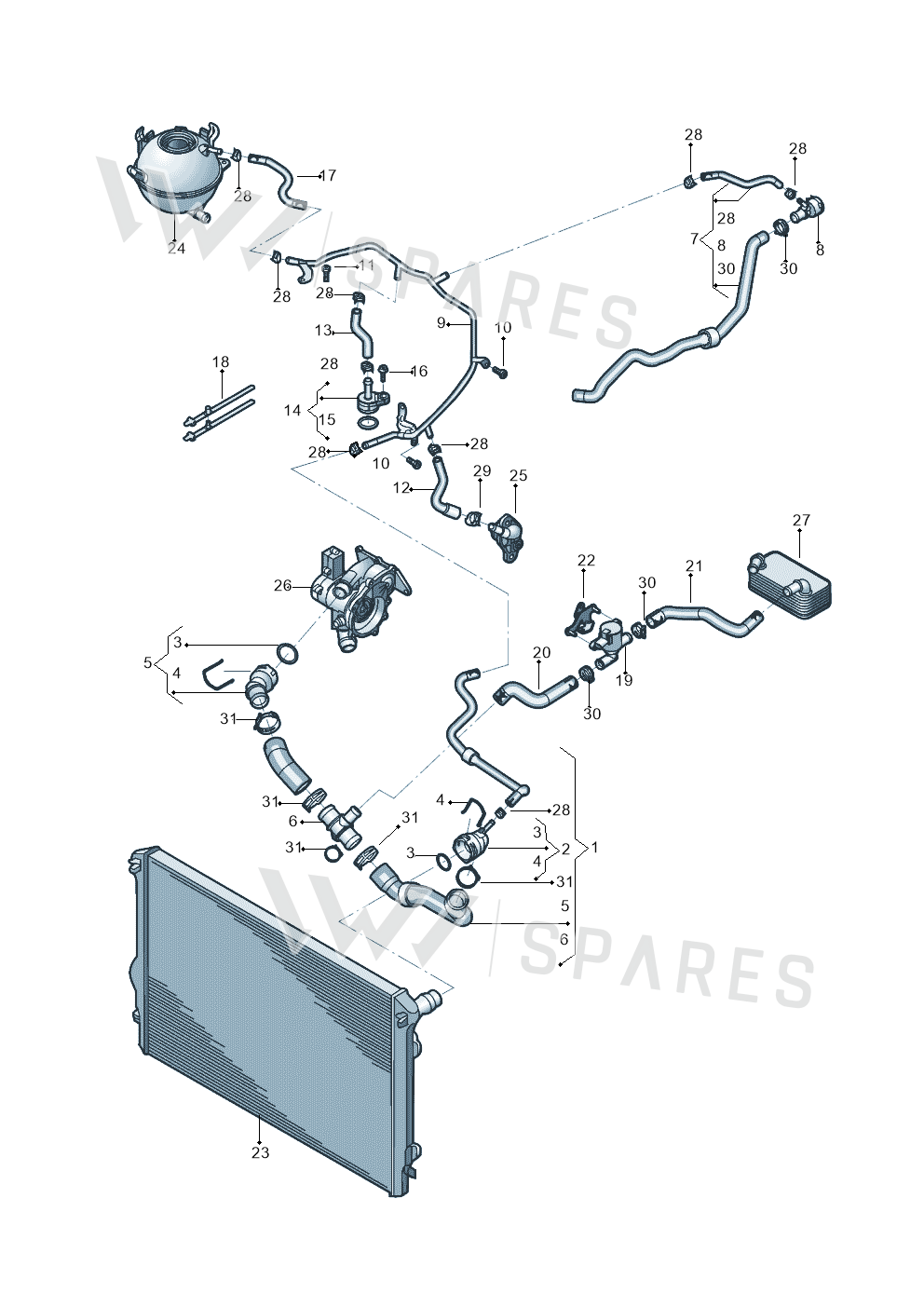

3 vehiclesConnection Piece — locate Connection Piece in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Hose 5C0122101AM
- 2Coupl Piece 3C0122291
- 3Seal Ring N90765301
- 4Spring 1J0121142
- 5Coupl Piece 5Q0122291AA
- 7Hose 5C0122157S
- 8Coupl Piece 1K0122291C
- 9Water Pipe 06K121075AQ
- 10Bolt N10405604
- 11Bolt N10654902
- 12Hose 06K121049
- 13Hose 06K121051P
- 14Adapter 06K121143
- 15Seal Ring WHT005440
- 16Screw N10619201
- 17Hose 1K0121447EP
- 18Binder 4A0820199
- 19Valve 5Q0906457K
- 20Hose 5C0121096D
- 21Hose 5C0121096E
- 22Bracket 5C0121093AA
- 28Clamp N90686701
- 29Clamp N90770201
- 30Clamp N90687001
- 31Clamp N90687201
Vehicle fitment table3
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Beetle | 2016-2019 | 6 | |
| new beetle cabriolet | 2016-2019 | 6 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| New Passat | 2015-2022 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connection Piece is fitted on: Beetle 2016-2019; new beetle cabriolet 2016-2019; New Passat 2015-2022.
