5C0122291F Quick Acting Coupling
- 5C0122291FThis pageNot stocked
Feb 2013
- Current number5C0121049ECurrent number
- Current number5Q0121107BCurrent number
- 5Q0121049APCurrent · not stocked5Q0121049APCurrent · not stocked
- 5Q0121049ATCurrent · not stocked5Q0121049ATCurrent · not stocked
- Current number5WA121049HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

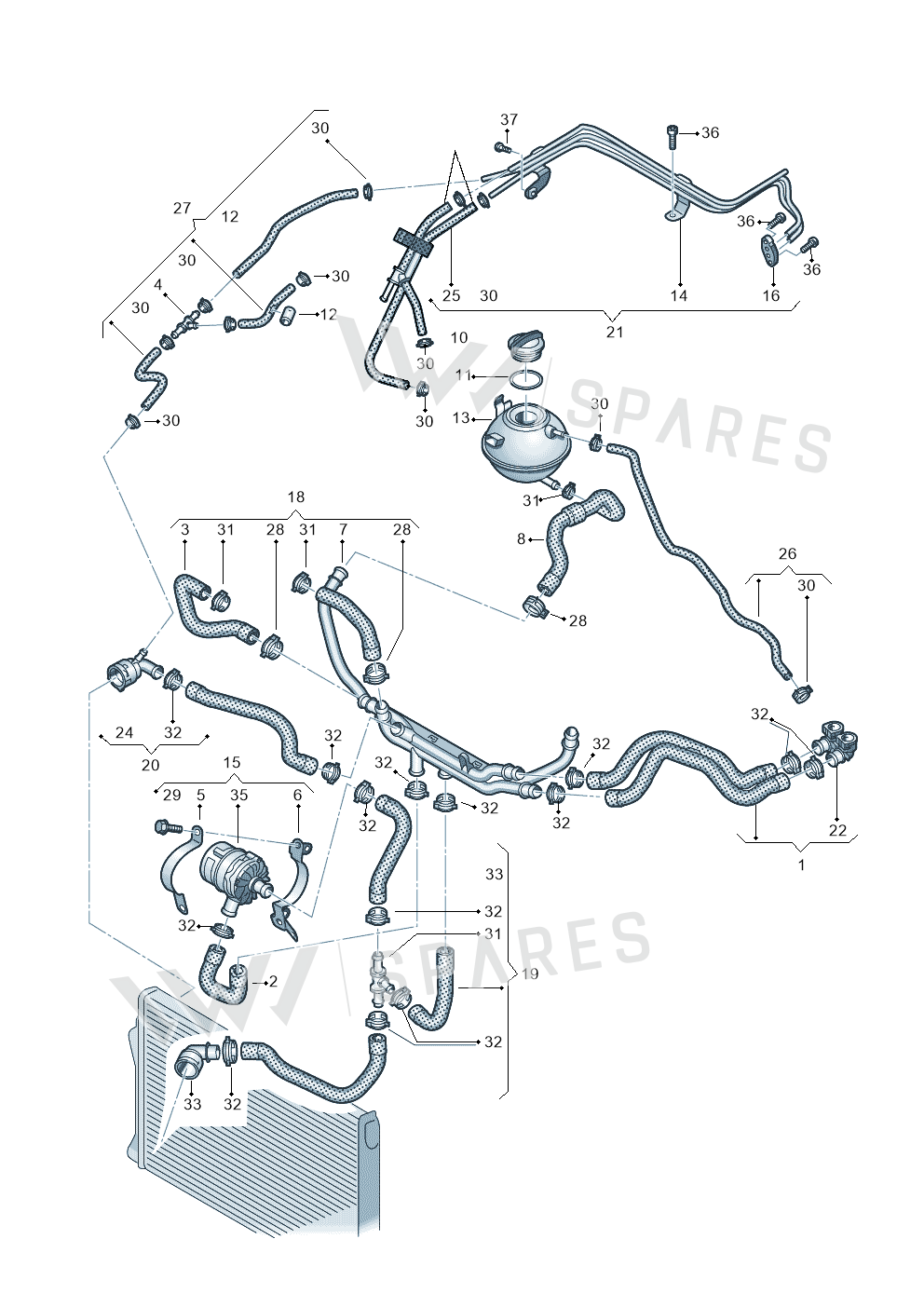

1 vehicleQuick Acting Coupling — locate Quick Acting Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Hose 5C0121049E
- 2Water Pipe 5C0121063B
- 3Water Pipe 04E122050
- 4Junction 1K0121087B
- 5Bracket 5C0121093D
- 6Bracket 5C0121093E
- 8Hose 5C0121109C
- 12Valve 8E0121349A
- 14Water Pipe 04E121497H
- 16Seal 04E121687
- 19Hose 5C0122051J
- 20Hose 5C0122101R
- 24Coupl Piece 1K0122291R
- 25Hose 04E122447Q
- 25Hose 04E122447F
- 26Hose 5C0121447D
- 27Hose 5C0122447E
- 28Clamp N10558701
- 29Bolt N10668401
- 30Clamp N90686701
- 31Clamp N90686902
- 32Clamp N90687001
- 35Pump 7P0965567
- 36Screw N10456201
- 37Bolt N10405604
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| jetta | 2010-2014 | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Quick Acting Coupling is fitted on: jetta 2010-2014.
