5C0422166E Bracket
- 5C0422166DNot stocked
Jun 2014 - 5C0422166EThis pageNot stocked
Jan 2020 - 5C0422166HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

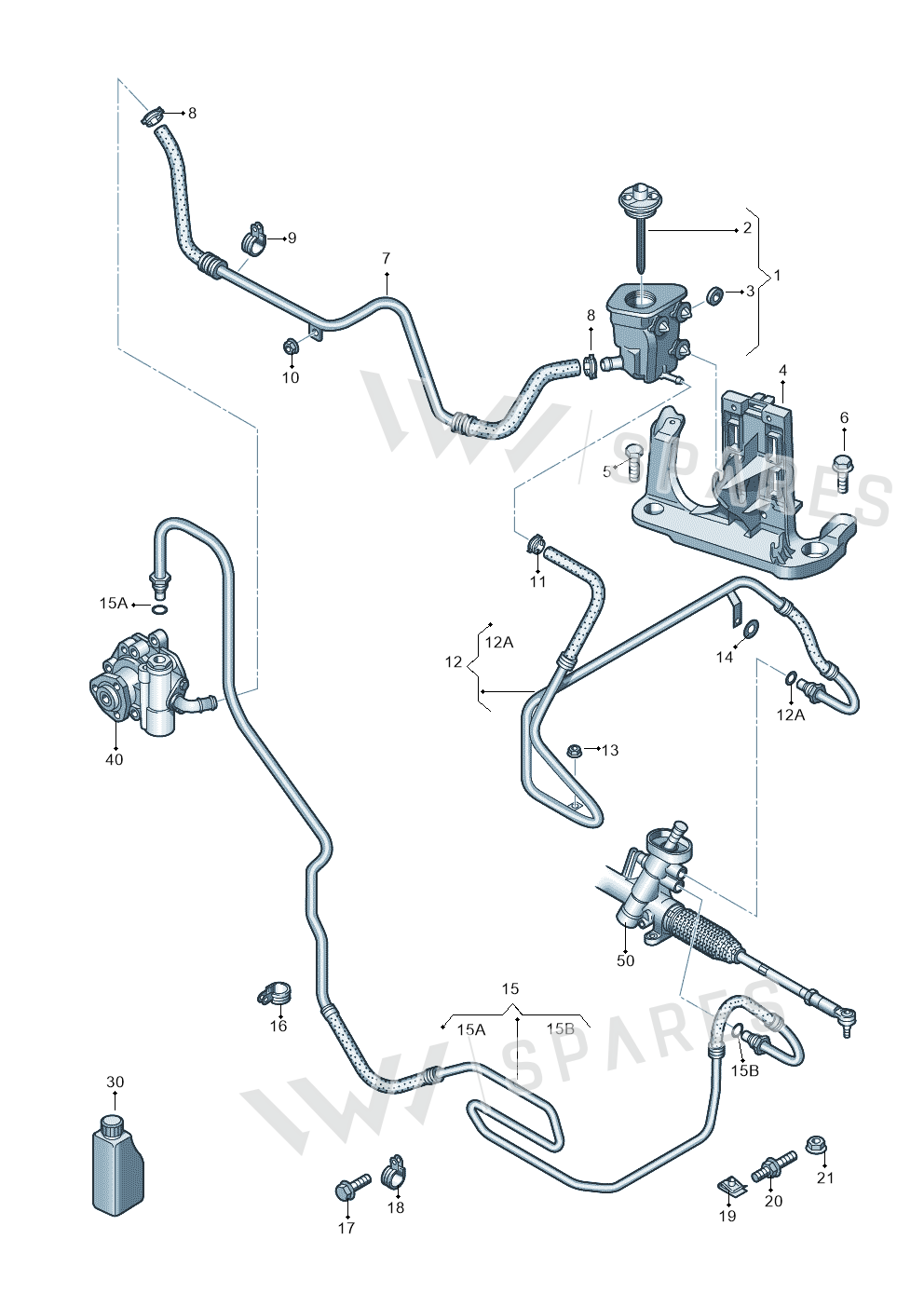

7 vehiclesBracket — locate Bracket in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Container 5C0422371
- 2Cover 5C0422376
- 3Grommet 052129669A
- 5Bolt N90631003
- 6Bolt N10739001
- 7Hose 5C0422887E
- 8Clamp N90686902
- 9Clamp N0206267
- 10Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 11Clamp N90686701
- 12Hose 5C0422891L
- 12ASeal Ring 7M0422999
- 13Collar Nut N90761103
- 14Washer N90335004
- 15Hose 5C0422893BJ
- 15Hose 5C0422893BK
- 15ASeal Ring WHT006102
- 15BSeal Ring WHT006103
- 16Clamp N90851001
- 17Bolt N10713501
- 18Clip N90799801
- 19Part N90832302
- 20Bolt N90767702
- 21Ut Hexagon Nut Self-locking Hexagon Nut N02300311
- 30Part G004000M7
- 30Part G004000M8
- 30Part G004000M2
Vehicle fitment table8
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Beetle | 2016-2019 | 4 | 1 | |
| new beetle cabriolet | 2016-2019 | 4 | 1 | |
| jetta | 2014-2017 | 4 | 1 | |
| Yeti | 2013-2017 | 2 | 1 | 0EM |
| jetta | 2010-2014 | 15 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| New Passat | 2015-2022 | 4 | 1 | |
| New Passat | 2011-2015 | 4 | 1 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| new beetle cabriolet | 2011-2016 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket is fitted on: Beetle 2016-2019; new beetle cabriolet 2016-2019; jetta 2014-2017; Yeti 2013-2017; jetta 2010-2014; New Passat 2015-2022; New Passat 2011-2015.
