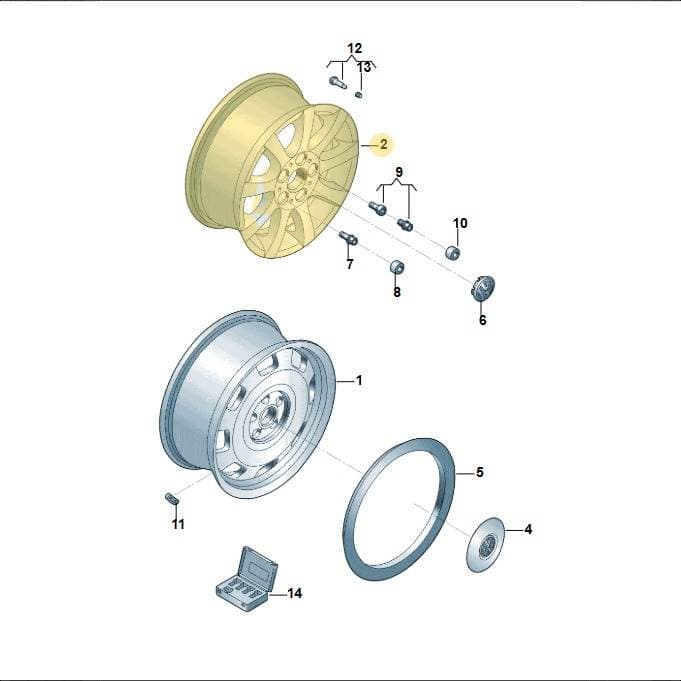

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Wheel, part number 5C0601025CHAX1. This wheel is finished in Black-Glossy with the HAX1 color code. It is a key component for vehicle mobility and aesthetics. Genuine OEM wheels are manufactured to precise specifications for optimal balance and structural integrity, ensuring a smooth ride and long service life.
Catalogue entry: BLACK; ALLOY RIM 7JX17H2 ET43 ×4; 5/112.
Technical details
- Base part number
- 5C0601025C
- Category
- Wheels & Tires
- Colour / finish
- HAX1
- Customs (HS) code
- 87087050
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 47.5 × 47.5 × 20.5 cm
- Shipping weight
- 12.38 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Size
- 7J x 17 H2 ET43
Equipment codes
- F94
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Other colours and finishes of 5C0601025C
3 variantsThis page is the HAX1 version of base part 5C0601025C. The same part is also stocked in:
- Dark Graphite/Finely Turned (CNQ9)5C0601025CCNQ9
- Dark Graphite/Finely Turned (DNQ9)5C0601025CDNQ9
- QY9C5C0601025CQY9C
The colour code is the last three or four characters of the part number; check the code on your existing part or send us your VIN to confirm the trim.
Parts diagram & fitment
2 vehiclesAlloy Rim (Black-glossy) — locate 5C0601025CHAX1 Volkswagen Wheel | Black-Glossy HAX1 in the official exploded view and explore the surrounding assembly.
You are ordering the black-glossy version — 5C0601025CHAX1. The diagram shows its base part number 5C0601025CH.
Parts in this assembly35
- 1Alloy Rim 5C0601025BE
- 1Alloy Rim 5C0601025BF
- 1Alloy Rim 5C0601025BQ
- 1Alloy Rim 5C0601025BR
- 1Alloy Rim 5C0601025BT
- 1Alloy Rim 5C0601025M
- 1Alloy Rim 5C0601025G
- 2Alloy Rim 561601025F
- 2Alloy Rim 561601025Q
- 2Alloy Rim 5C0601025AL
- 2Alloy Rim 5C0601025CC
- 2Alloy Rim 5C0601025CH
- 2Alloy Rim 5C0601025F
- 2Alloy Rim 5N0601025AJ
- 4Hub Cap 5C0601149D
- 5Ornam Ring 5C0601157B
- 5Ornam Ring 5C0601157A
- 6Part 3B7601171
- 7Screw WHT002437
- 8Ap Cap - Wheel Bolt Cap - Wheel Bolt Cap - 1K0601173
- 10Ap Cap - Wheel Bolt Cap - Wheel Bolt Cap - 3C0601173
- 11Weight 1K0601179E
- 11WeightLeft1K0601181E
- 11WeightRight1K0601182E
- 11WeightLeft1K0601183E
- 11WeightRight1K0601184E
- 11WeightLeft1K0601185E
- 11WeightRight1K0601186E
- 11WeightLeft1K0601187E
- 11WeightRight1K0601188E
- 11Weight 1K0601189E
- 11Weight 1K0601190E
- 11Weight 1K0601178E
- 12Valve 839601361
- 14Bolts 5Q0698137
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| Beetle | 2016-2019 | 2 | F94 |
| new beetle cabriolet | 2016-2019 | 2 | F94 |
The manufacturer’s catalogue lists this part number as fitted until August 2019; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5C0601025CHAX1 Volkswagen Wheel | Black-Glossy HAX1 is fitted on: Beetle 2016-2019; new beetle cabriolet 2016-2019.
