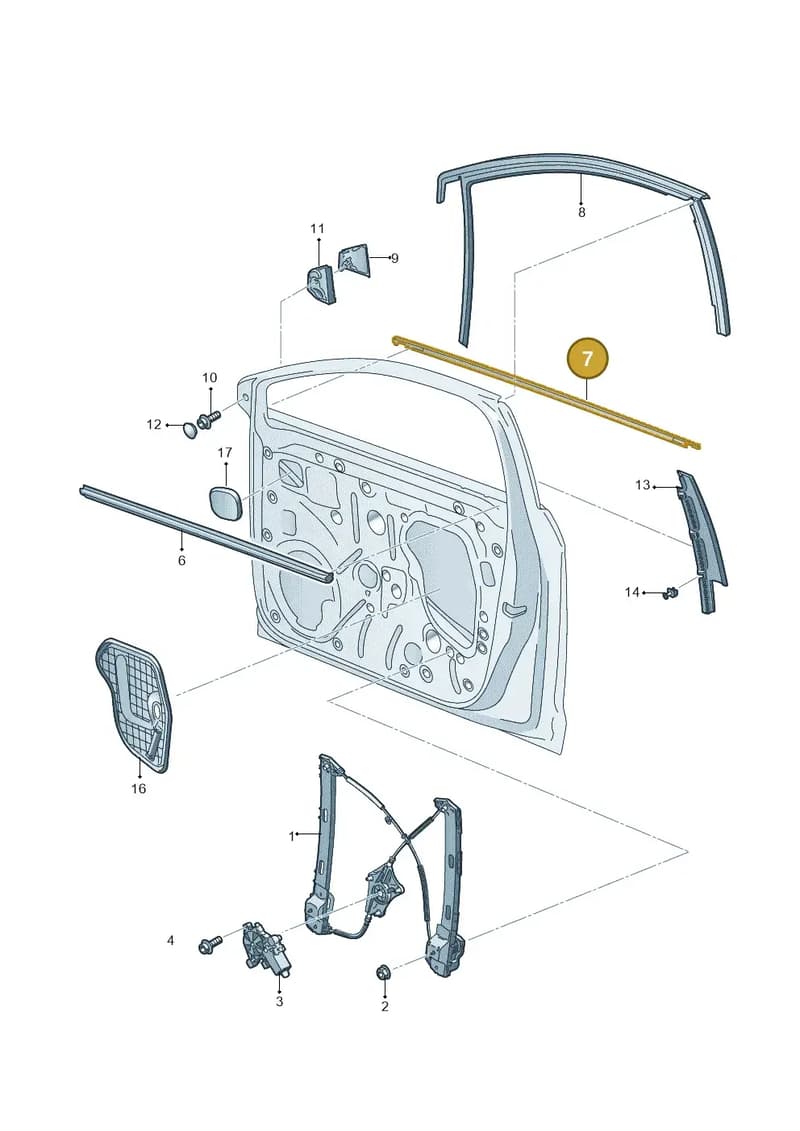

Number 7 marks the part’s position in the exploded view (SEAT Leon ST (2016-2020)).
Product overview
Genuine OEM SEAT Window Aperture Seal, part number 5F4837476E2ZZ. Colour/finish: High Chrome (2ZZ); variant of base part 5F4837476E. Fits SEAT Leon ST (2016-2020). Shown as position 7 in the body diagram 754837600. Equipment code: 0A2.
Catalogue entry: HIGH CHROM; SEAL right outer; 4-door.
Technical details
- Base part number
- 5F4837476E
- Category
- Doors & Windows
- Colour / finish
- High Chrome (2ZZ)
- Diagram sheet
- SEAT 754837600, position 7
- ETKA group
- 8 / 37 (837)
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0A2
- 4ZB
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleSeal (High chrom) — locate 5F4837476E2ZZ SEAT Window Aperture Seal (High Chrome 2ZZ) in the official exploded view and explore the surrounding assembly.
You are ordering the high chrom version — 5F4837476E2ZZ. The diagram shows its base part number 5F4837476E.
Parts in this assembly40
- 1Window RegLeft5F3837461D
- 1Window RegRight5F3837462D
- 1Window RegLeft5F4837461D
- 1Window RegRight5F4837462D
- 2Collar Nut N01508210
- 4Bolt 8Z0837691C
- 6SealLeft5F3837471C
- 6SealRight5F3837472C
- 6SealLeft5F4837471B
- 6SealRight5F4837472B
- 7SealLeft5F3837477A
- 7SealRight5F3837478A
- 7SealLeft5F4837475D
- 7SealLeft5F4837475E
- 7SealRight5F4837476D
- 7SealRight5F4837476E
- 7SealLeft5F4837477A
- 7SealRight5F4837478A
- 8GuideLeft5F3837431F
- 8GuideRight5F3837432F
- 8GuideLeft5F4837431H
- 8GuideRight5F4837432H
- 9PanelLeft5F0837637D
- 9PanelRight5F0837638D
- 10Bolt N90986802
- 11UnderlayLeft5F0837367A
- 11UnderlayLeft5F3837367A
- 11UnderlayRight5F3837368A
- 11UnderlayRight5F0837368A
- 12Bungs 3B0837111
- 13TrimLeft5F3837901H
- 13TrimRight5F3837902H
- 13TrimLeft5F4837901G
- 13TrimRight5F4837902G
- 14Spring Rivet 6R0839829A
- 16CoverLeft5F3837915B
- 16CoverRight5F3837916B
- 16CoverLeft5F4837915D
- 16CoverRight5F4837916D
- 17Cover 5F0867169
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| Leon ST Stylance | 2016-2020 | 7 | 0A2 |
The manufacturer’s catalogue lists this part number as fitted until August 2020; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
5F4837476E2ZZ SEAT Window Aperture Seal (High Chrome 2ZZ) is fitted on: Leon ST Stylance 2016-2020.
