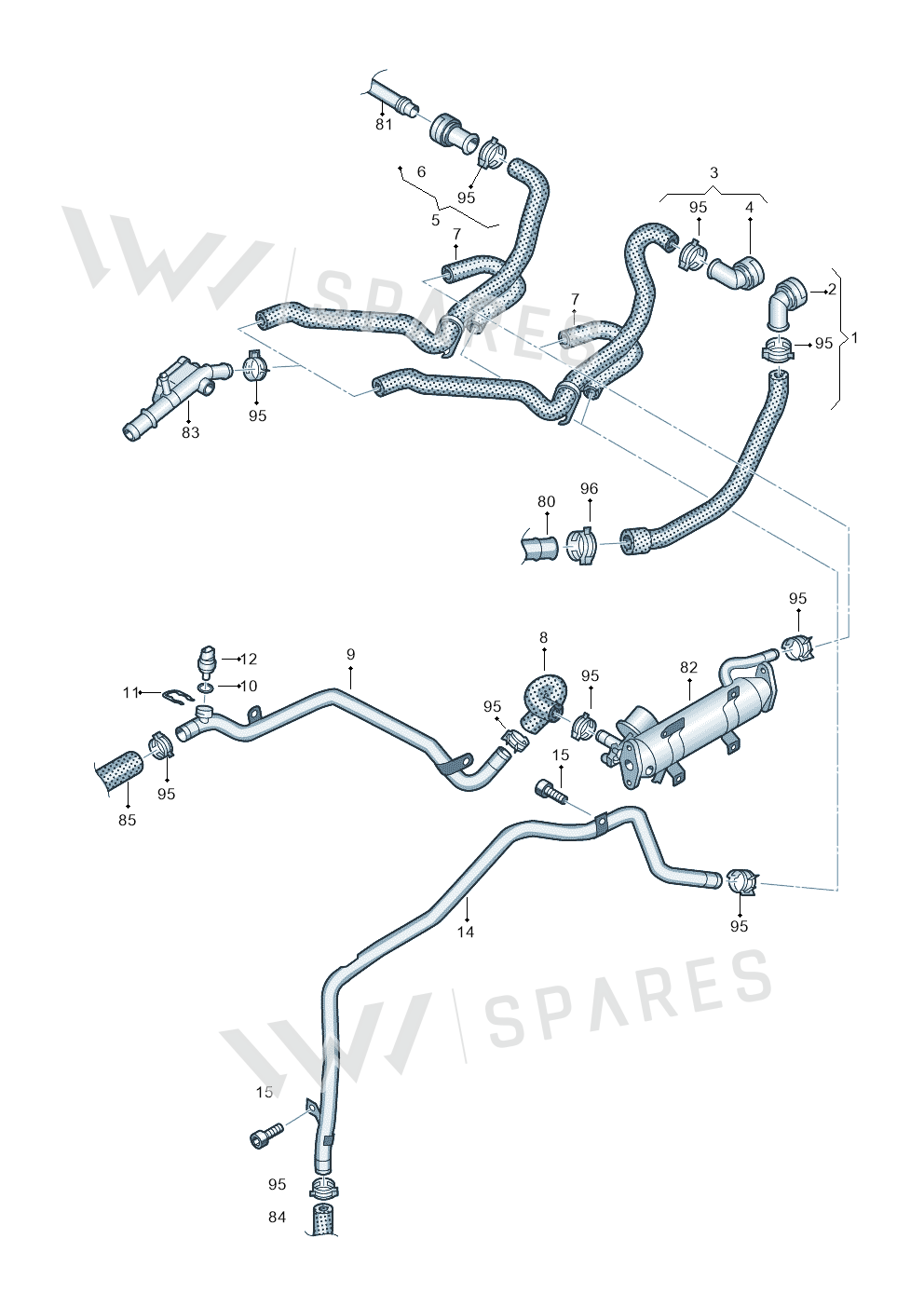

Coolant Pipe exploded parts diagram — TIGUAN 08> · 2007-, position 9
Exploded view
TIGUAN 08> · 2007- · position 9Full diagram ↓
5N0121070B

5N0121070B Coolant Pipe

£36.66
£30.30 excl. VAT
Supersession roadforks into 2
  1. 5N0121070BThis pageNot stocked
    Dec 2008
  1. 5N0121065Current number
  2. 5N0121101HCurrent number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Coolant Pipe — locate Coolant Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly17
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyPR
TIGUAN 08>2007-91TG3

Diagrams & fitment data powered by oemdiagrams.com

Coolant Pipe is fitted on: TIGUAN 08> 2007-.
