5N0122101AF Coolant Hose With Quick Release Coupling
- 5N0122101AFThis pageNot stocked
Sep 2013 - 5N0122101AJCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

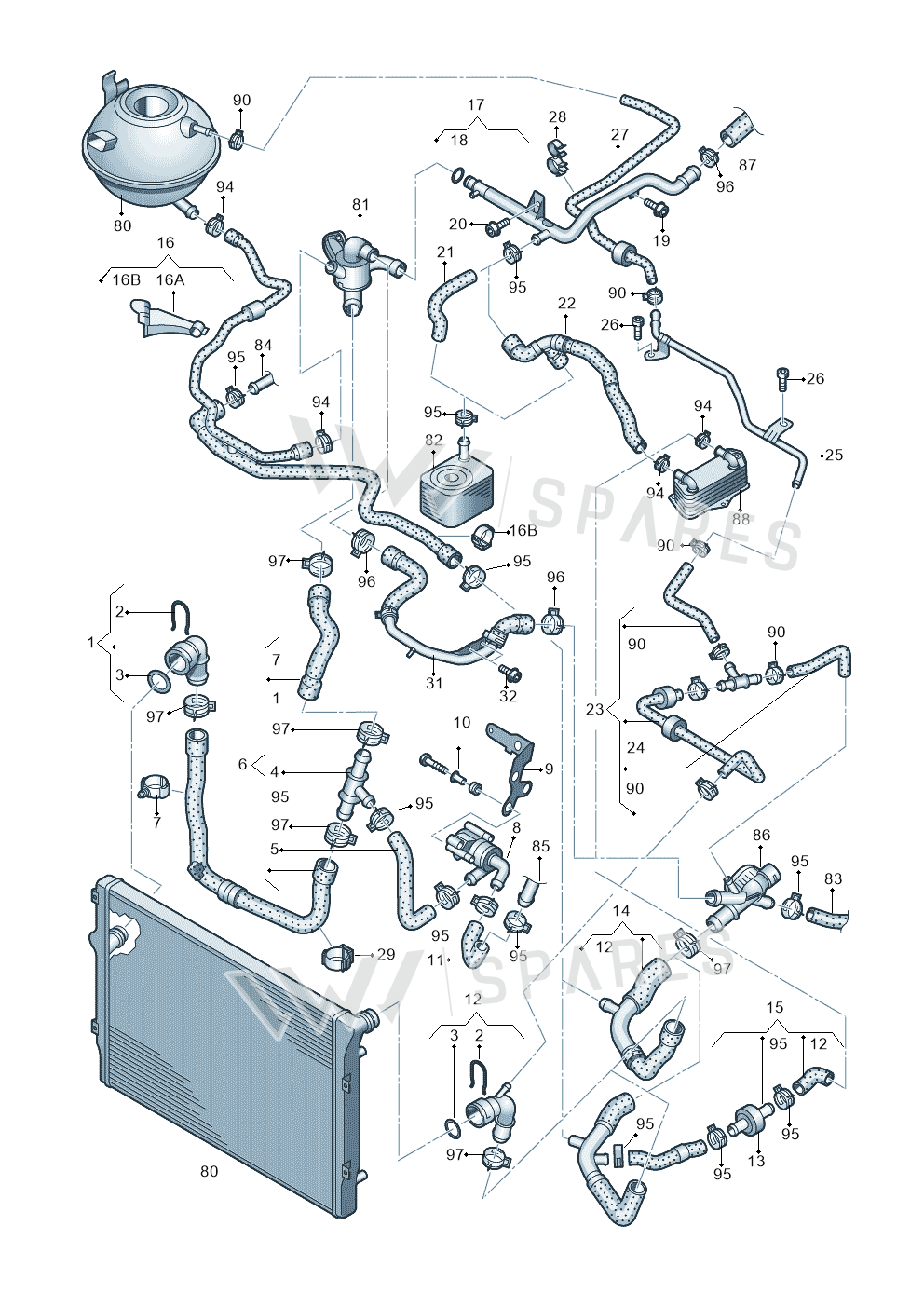

1 vehicleCoolant Hose With Quick Release Coupling — locate Coolant Hose With Quick Release Coupling in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Coupl Piece 5N0122291A
- 2Spring 1J0121142
- 3Seal Ring N90765301
- 4Adapter N90692901
- 6Hose 5N0122051AS
- 7Bracket 3C0121093
- 8Pump 5N0965561A
- 8Pump 5N0965561
- 9Bracket 1K0121093BP
- 9Bracket 5N0121093A
- 10Fixing Set 5N0198093
- 11Hose 5N0121051A
- 12Coupl Piece 3C0122291
- 13Coolant Rg 1K0121113A
- 14Hose 5N0122101AC
- 16Hose 5N0122109AA
- 16ABracket 1K0133687B
- 16BBracket 1K0121093CB
- 17Water Pipe 03L121065AJ
- 18Seal Ring 06B121687
- 19Bolt N10524202
- 20Screw N90853802
- 21Hose 1K0122058L
- 22Hose 5N0121086E
- 23Hose 5N0122447AE
- 24Tpiece N90693001
- 25Water Pipe 1K0121070CE
- 26Bolt N10406504
- 27Hose 5N0121447N
- 28Bracket N10462801
- 29Bracket 5N0121093C
- 31Water Pipe 03L122157K
- 32Screw N10170303
- 90Clamp N90686701
- 94Clamp N90686902
- 95Clamp N90687001
- 96Clamp N90687101
- 97Clamp N90687201
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| TIGUAN 08> | 2007- | 15 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Hose With Quick Release Coupling is fitted on: TIGUAN 08> 2007-.
